• Question 681:

  Which subnet address is for the IP address 172.19.20.23/28?

  A. 172.19.20.20
  B. 172.19.20.0
  C. 172.19.20.32
  D. 172.19.20.15
  E. 172.19.20.16
  E. 172.19.20.16

• Question 682:





  Including the address on the Router1 Ethernet interface, how many hosts can have IP addresses on the LAN to which Router1 is connected?

  A. 6
  B. 14
  C. 62
  D. 126
  B. 14

• Question 683:

  If you configure syslog messages without specifying the logging trap level, which log messages will the router send?

  A. 0-4
  B. 0-5
  C. 0-6
  D. 0-2
  E. 0-1
  C. 0-6

• Question 684:

  Which field in a basic Ethernet frame is 6 bytes long and always indicates an individual address with a 0 as the leftmost bit?

  A. source address
  B. SOF
  C. FCS
  D. destination address
  A. source address

• Question 685:

  How can an administrator determine if a router has been configured when it is first powered up?

  A. A configured router prompts for a password.
  B. A configured router goes to the privileged mode prompt.
  C. An unconfigured router goes into the setup dialog.
  D. An unconfigured router goes to the enable mode prompt.
  C. An unconfigured router goes into the setup dialog.

• Question 686:

  Which technology supports the stateless assignment of IPv6 addresses?

  A. DNS
  B. DHCPv6
  C. DHCP
  D. autoconfiguration
  D. autoconfiguration

• Question 687:

  Which two attributes of a packet change at every router along the path from source to destination? (Choose two.)

  A. destination IP address
  B. source MAC address
  C. packet MTU
  D. source IP address
  E. destination MAC address
  B. source MAC address
  E. destination MAC address

• Question 688:

  Where information about untrusted hosts are stored?

  A. CAM table
  B. Trunk table
  C. MAC table
  D. binding database
  D. binding database

• Question 689:

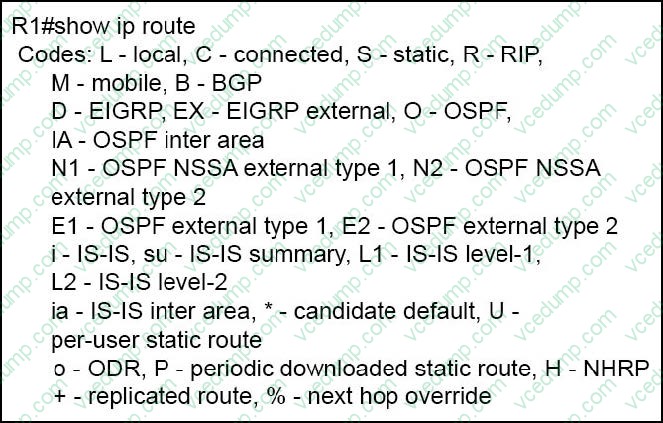

  Refer to the exhibit.



  Which two statements about the route source code in a routing table are true? (Choose two.)

  A. It identifies the destination of the route.
  B. It identifies the source type of the route.
  C. Routes with code C are preferred.
  D. It appears after the source network address.
  E. Routes with code S are always preferred.
  B. It identifies the source type of the route.
  C. Routes with code C are preferred.

• Question 690:

  DRAG DROP

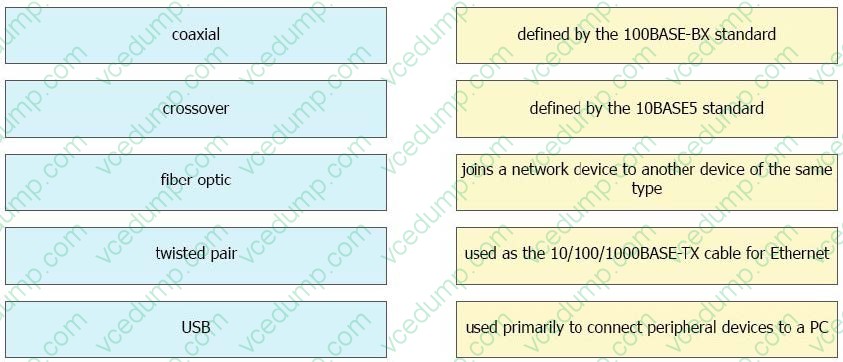

  Drag and drop each cable type from the left onto the correct description on the right.

  Select and Place:
