Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 671:

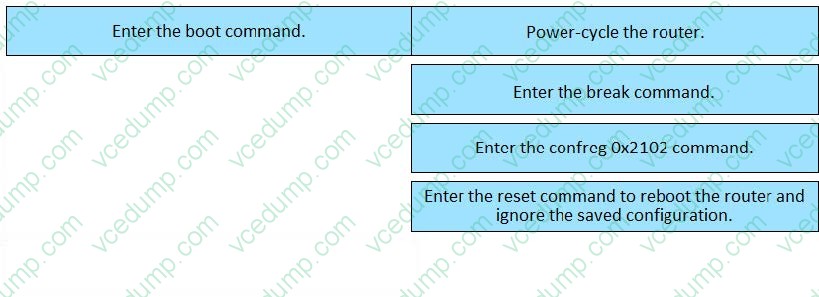

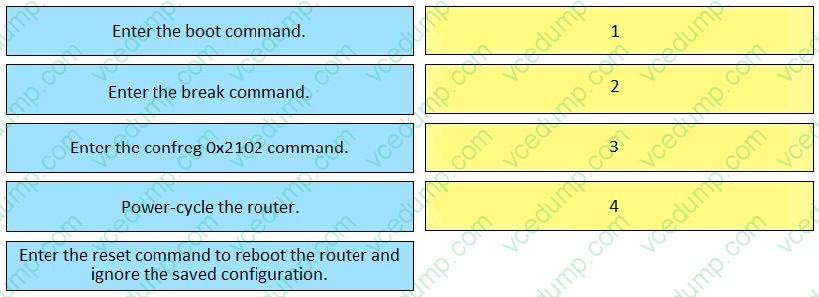

  DRAG DROP

  Drag and drop the steps in the process of reloading a router without loading its running configuration from the correct sequence on the right. Not all steps are used.

  Select and Place:





• Question 672:

  Which two configuration steps will prevent an unauthorized PC from accessing the corporate network? (Choose two.)

  A. set the port security aging time to 0
  B. create the port as a protected port and statically assign the MAC address to the address table
  C. configure the switch to discover new MAC addresses after a set time of inactivity
  D. enable port security on the switch
  E. create the port as an access port and statically assign the MAC address to the address table
  D. enable port security on the switch
  E. create the port as an access port and statically assign the MAC address to the address table

• Question 673:

  What is the default administrative distance for a connected route?

  A. 1
  C. 5
  D. 20
  B

• Question 674:

  If a host experiences intermittent issues that relate to congestion within a network while remaining connected, which option could cause congestion on this LAN?

  A. multicasting
  B. network segmentation
  C. broadcast storms
  D. half-duplex operation
  C. broadcast storms

• Question 675:

  Which address block identifies all link-local address?

  A. fc00::/7
  B. fc00::/8
  C. fe80::/10
  C. fe80::/10

• Question 676:

  Which IPv6 address does a device use for neighbor discovery?

  A. the link-local address
  B. the multicast address
  C. the unique local address
  D. the global unicast address
  A. the link-local address

• Question 677:

  WAN data link encapsulation types include which of the following? (Choose two.)

  A. T1
  B. Frame Relay
  C. DSL
  D. PPP
  E. ISDN
  B. Frame Relay
  D. PPP

• Question 678:

  FILL BLANK

  What is the binary of the IPv6 multicast address?

  11111111

  IPv6 multicast addresses are distinguished from unicast addresses by the value of the high-order octet of the addresses: a value of 0xFF (binary 11111111) identifies an address as a multicast address; any other value identifies an address as a unicast address

• Question 679:

  Which two commands must you apply to a router to configure it as a router-on-a-stick? (Choose two.)

  A. spanning-tree portfast
  B. encapsulation
  C. vtp domain
  D. vtp transparent
  E. ip address
  B. encapsulation
  E. ip address

• Question 680:

  Which three encapsulation layers in the OSI model are combined into the TCP/IP application layer? (Choose three)

  A. Session
  B. transport
  C. presentation
  D. application E. data-link
  F. network
  A. Session
  C. presentation
  D. application E. data-link
