Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 661:

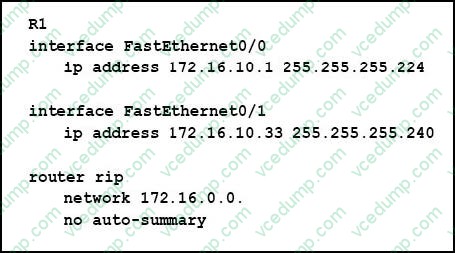

  Refer to the exhibit.



  After you apply the given configuration to R1, you determine that it is failing to advertise the 172.16.10.32/27 network. Which action most likely to correct the problem?

  A. Enable passive interface
  B. Enable RIPv2
  C. Enable manual summarization
  D. Enable autosummarization.
  B. Enable RIPv2

• Question 662:

  Which option is one component of an Ethernet frame?

  A. sequence number
  B. checksum
  C. TTL
  D. frame check sequence
  D. frame check sequence

• Question 663:

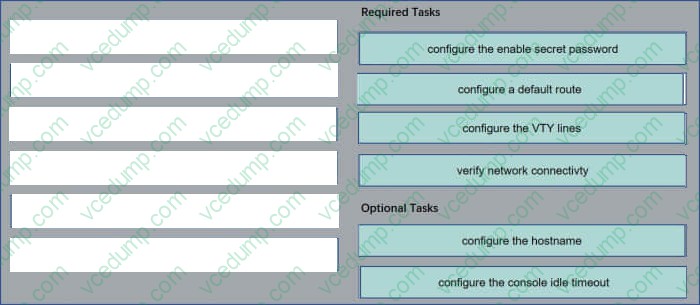

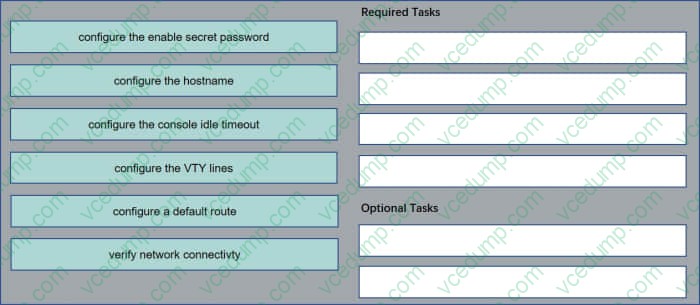

  Drag and Drop Question

  You are performing the initial configuration on a new Cisco device. Drag the task from the left onto the required or optional category on the right.

  Select and Place:





• Question 664:

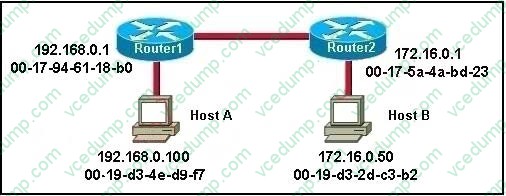

  Refer to the exhibit. Host A is sending a packet to Host B for the first time. What destination MAC address will Host A use in the ARP request?



  A. 192.168.0.1
  B. 172.16.0.50
  C. 00-17-94-61-18-b0
  D. 00-19-d3-2d-c3-b2
  E. ff-ff-ff-ff-ff-ff
  F. 255.255.255.255
  C. 00-17-94-61-18-b0

• Question 665:

  Which option can be used in case a backup route is required in the routing table?

  A. floating static route
  B. No extra configuration is required.
  C. next hop
  D. route distribution
  A. floating static route

• Question 666:

  Which symptom can cause duplex mismatch problem?

  A. no earner
  B. collisions on interface
  C. giants
  D. CRC errors
  B. collisions on interface

• Question 667:

  Under which circumstance should a network administrator implement one-way NAT?

  A. when the network must route UDP traffic
  B. when traffic that originates outside the network must be routed to internal hosts
  C. when traffic that originates inside the network must be routed to internal hosts
  D. when the network has few public IP addresses and many private IP addresses require outside access
  D. when the network has few public IP addresses and many private IP addresses require outside access

• Question 668:

  Which table displays the MAC addresses that are learned on a switch?

  A. FIB
  B. ARP
  C. TCAM
  D. CAM
  D. CAM

• Question 669:

  Which three statements are correct about RIP version 2? (Choose three.)

  A. It uses broadcast for its routing updates.
  B. It supports authentication.
  C. It is a classless routing protocol.
  D. It has a lower default administrative distance then RIP version 1.
  E. It has the same maximum hop count as RIP version 1.
  F. It does not send the subnet mask any updates.
  B. It supports authentication.
  C. It is a classless routing protocol.
  E. It has the same maximum hop count as RIP version 1.

• Question 670:

  What does the "Inside Global" address represent in the configuration of NAT?

  A. the summarized address for all of the internal subnetted addresses
  B. the MAC address of the router used by inside hosts to connect to the Internet
  C. a globally unique, private IP address assigned to a host on the inside network
  D. a registered address that represents an inside host to an outside network
  D. a registered address that represents an inside host to an outside network
