Juniper JN0-360 Online Practice Questions and Exam Preparation

Juniper JN0-360 Online Questions & Answers

• Question 491:

  In your RSVP network you have configured three separate LSPs to the same egress address. You have made no other configuration changes to the forwarding decisions made by the router. Which commands can you use to determine which LSP is being used to forward packets?

  A. show route table inet.3
  B. show route table inet.4
  C. show rsvp neighbor
  D. show rsvp session
  A. show route table inet.3

• Question 492:

  By default, the Junos OS advertises which address(es) in LDP forwarding equivalency class (FEC) messages?

  A. all router addresses
  B. all transit interfaces
  C. loopback address
  D. primary transit interface address
  C. loopback address

• Question 493:

  Which three functions are performed by an OSPF area border router (ABR)? (Choose three)

  A. flooding Summary LSAs to connected areas
  B. flooding ASBR Summary LSAs to connected areas
  C. generating all Router LSAs for connected neighbors
  D. performing summarization on routes headed to Area 0
  E. flooding NSSA External LSAs to Area 0
  A. flooding Summary LSAs to connected areas
  B. flooding ASBR Summary LSAs to connected areas
  D. performing summarization on routes headed to Area 0

• Question 494:

  A rogue switch has been added to your network, exchanged BPDUs, and is now part of the spanning tree topology. Which feature would help prevent this from happening in the future?

  A. storm control
  B. BPDU control
  C. root protection
  D. loop protection
  B. BPDU control

• Question 495:

  You have been asked to verify the state of an LDP-signaled Layer 2 circuit.

  Which two commands would you use to verify the state of the connection? (Choose two.)

  A. show mpls lsp
  B. show l2circuit connections
  C. show l2circuit statistics
  D. show ldp database
  B. show l2circuit connections
  D. show ldp database

• Question 496:

  Which address is within the IPv6 link-local address scope?

  A. f80e::52c5:8d03:e8f6:57c0
  B. fc00::52c5:8d03:e8f6:57c0
  C. 2001::52c5:8d03:e8f6:57c0
  D. fe80:0:0:0:52c5:8d03:e8f6:57c0
  D. fe80:0:0:0:52c5:8d03:e8f6:57c0

• Question 497:

  -- Exhibit ?



  -- Exhibit -

  Click the Exhibit button.

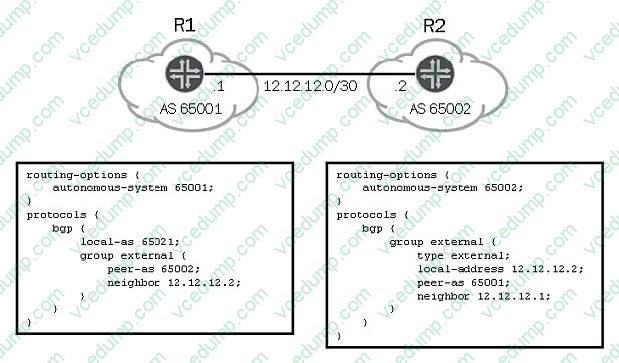

  You are asked to configure a new external BGP peering. You have configured BGP on R1 as shown in the exhibit, however the BGP peering remains in Active state.

  Which additional configuration is required on R1 to establish the BGP peering?

  A. Configure the local-address.
  B. Configure the BGP type as external.
  C. Remove the local-as statement.
  D. Remove the autonomous-system statement.
  C. Remove the local-as statement.

• Question 498:

  An IS-IS TLV includes which two attributes? (Choose two.)

  A. topology
  B. vector
  C. length
  D. value
  C. length
  D. value

• Question 499:

  By default, which RSVP reservation style is used by the Junos OS?

  A. fixed explicit
  B. fixed filter
  C. shared explicit
  D. wildcard filter
  B. fixed filter

• Question 500:

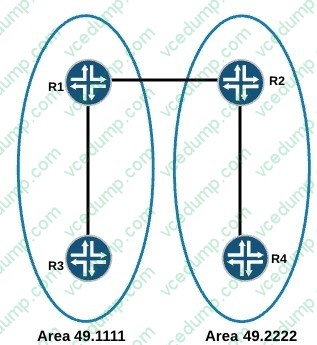

  In the exhibit, R3 and R4 have the level 2 disable statements applied to their global IS-IS configuration Which two statements are true regarding R2?

  A. R2 has a Level 1 adjacency with R1
  B. R2 has a Level 2 adjacency with R1
  C. R2 has a Level 1 adjacency with R4
  D. R2 has a Level 2 adjacency with R4
  B. R2 has a Level 2 adjacency with R1
  C. R2 has a Level 1 adjacency with R4
