• Question 391:

  Click the Exhibit button

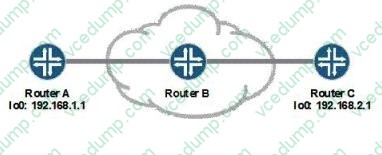

  Given the network topology shown in the exhibit, you are configuring a GRE tunnel from Router A to Router C Which interface configuration on Router A will successfully allow the tunnel to pass IPv4 traffic to Router C?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 392:

  Click the Exhibit.

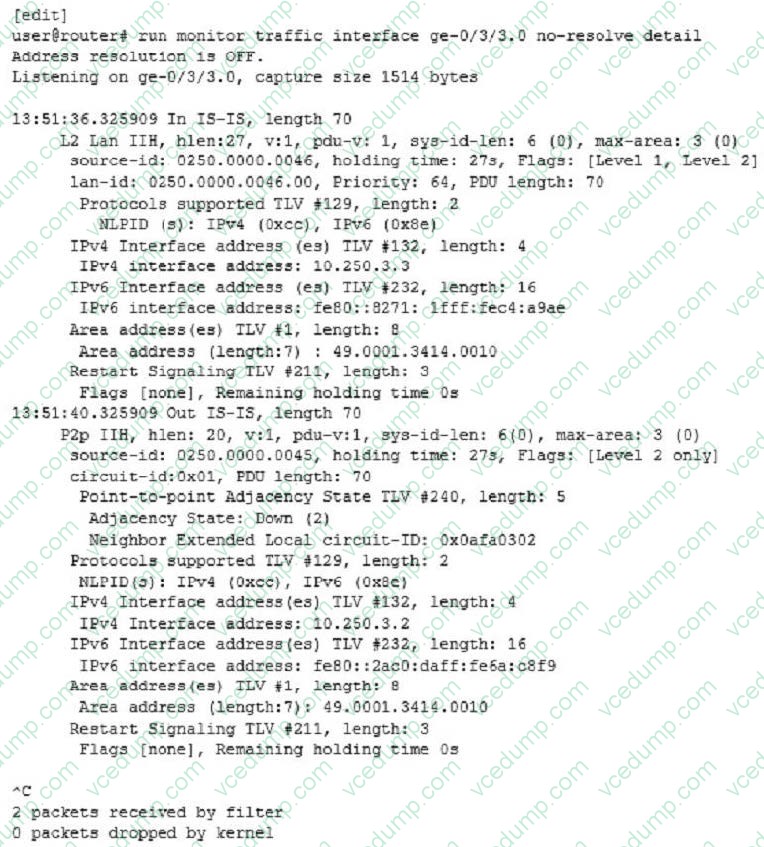

  You have just configured IS-IS, but the adjacency is not coming up. Referring to the exhibit, what is the cause?

  A. Only one side is configured using the point-to-point parameter.
  B. One router is configured for Level 2 only.
  C. The routers must be in different areas.
  D. The family iso parameters is missing on the interfaces.
  A. Only one side is configured using the point-to-point parameter.

• Question 393:

  -- Exhibit -



  -- Exhibit -Click the Exhibit button.

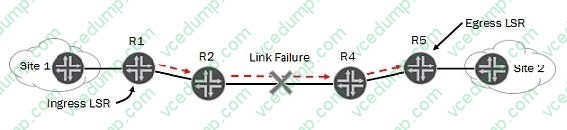

  Referring to the exhibit, you have an established RSVP LSP between R1 and R5 when you experience a link failure between R2 and R4.

  Which two statements are correct? (Choose two.)

  A. R2 sends a ResvTear message upstream to R1 signaling the link failure.
  B. R2 sends a PathTear message upstream to R1 signaling the link failure.
  C. R4 sends a ResvTear message downstream to R5 signaling the link failure.
  D. R4 sends a PathTear message downstream to R5 signaling the link failure.
  A. R2 sends a ResvTear message upstream to R1 signaling the link failure.
  D. R4 sends a PathTear message downstream to R5 signaling the link failure.

• Question 394:

  Click the Exhibit.

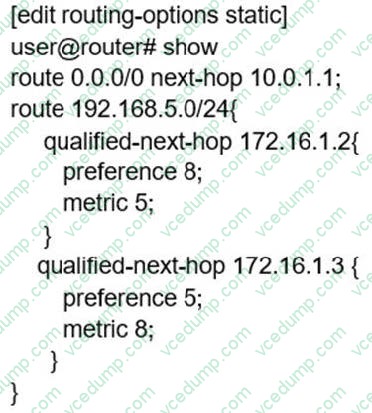

  Referring to the configuration shown in the exhibit, which statement is true?

  A. Traffic destined to address 192.168.5.1 will take next-hop 172.16.1.2.
  B. Traffic destined to address 192.168.5.1 will alternate between next-hops 172.16.1.2 and 172.16.1.3
  C. Traffic destined to address 192.168.5.1 will take next-hop 10.0.1.1.
  D. Traffic destined to address 192.168.5.1 will take next-hop 172.16.1.3.
  D. Traffic destined to address 192.168.5.1 will take next-hop 172.16.1.3.

• Question 395:

  You are asked to establish an MPLS LSP between two sites. You are required to ensure the LSP traverses specific routers within your network. Which solution is correct?

  A. Enable traffic engineering within LDP and define the explicit route the LSP must follow.
  B. Implement RSVP and define the explicit route the LSP must follow.
  C. Enable traffic engineering within RSVP and define the explicit route the LSP must follow.
  D. Implement LDP and define the explicit route the LSP must follow.
  B. Implement RSVP and define the explicit route the LSP must follow.

• Question 396:

  Click the Exhibit button

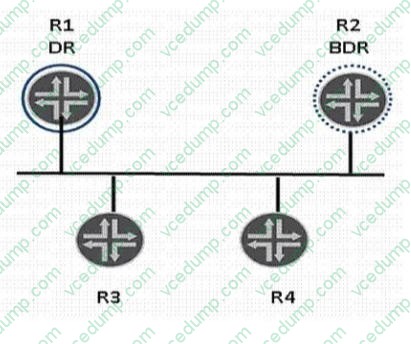

  In the exhibit, how many full OSPF adjacencies will R3 have?

  B. 1
  C. 2
  D. 3
  C. 2

• Question 397:

  Click the Exhibit button.

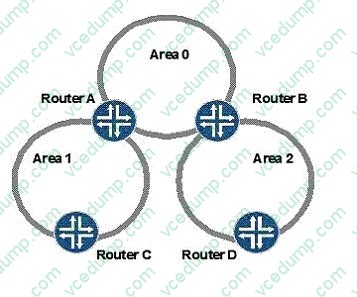

  Given the OSPF topology shown in the exhibit, how many unique link-state databases are present in the network?

  A. 1
  B. 2
  C. 3
  D. 6
  C. 3

• Question 398:

  Which two BGP attributes are modified by default when they are passed between external BGP peers? (Choose two)

  A. MED
  B. AS-Path
  C. Communities
  D. Next Hop
  B. AS-Path
  D. Next Hop

• Question 399:

  Which three protocols can be encapsulated within a GRE tunnel on a Junos device? (Choose three.)

  A. AppleTalk
  B. Aggregated Ethernet
  C. IPv6
  D. MPLS
  E. Ethernet
  A. AppleTalk
  C. IPv6
  D. MPLS

• Question 400:

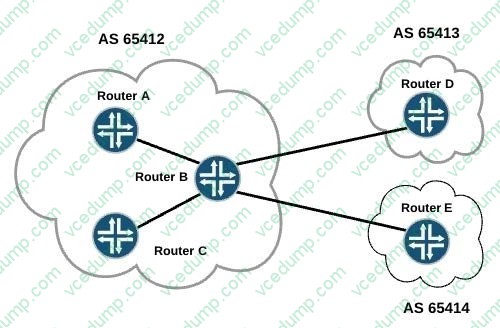

  In the exhibit, all devices are sending routes to Router B. Which routes will be advertised from Router B to Router A?

  A. BGP routes learned from Router C only
  B. BGP routes leaned from Router E only
  C. BGP routes learned from Routers D and E only
  D. BGP routes learned from Routers C, D, and E
  C. BGP routes learned from Routers D and E only
