Juniper JN0-360 Online Practice Questions and Exam Preparation

Juniper JN0-360 Online Questions & Answers

• Question 411:

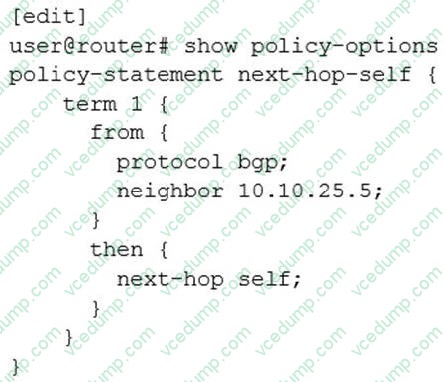

  Click the Exhibit.



  Your router has an external peering session to 10.10.25.5 and several internal peers. However, routes learned from EBGP peers are showing up in a hidden state on IBGP peers. Where would you apply the policy shown in the exhibit to solve this issue?

  A. Apply the next-hop-self as an export policy to the external BGP peers.
  B. Apply the next-hop-self as an import policy to the external BGP peers.
  C. Apply the next-hop-self as an export policy to the internal BGP peers.
  D. Apply the next-hop-self as an import policy to the internal BGP peers.
  C. Apply the next-hop-self as an export policy to the internal BGP peers.

• Question 412:

  Click the Exhibit button.

  10.10.14.0/24 10.10.15.0/24 10.10.16.0/24 10.10.17.0/24

  Which aggregate route would represent all four routes shown in the exhibit?

  A. 10.10.0.0/19
  B. 10.10.0.0/21
  C. 10.10.0.0/20
  D. 10.10.0.0/22
  A. 10.10.0.0/19

• Question 413:

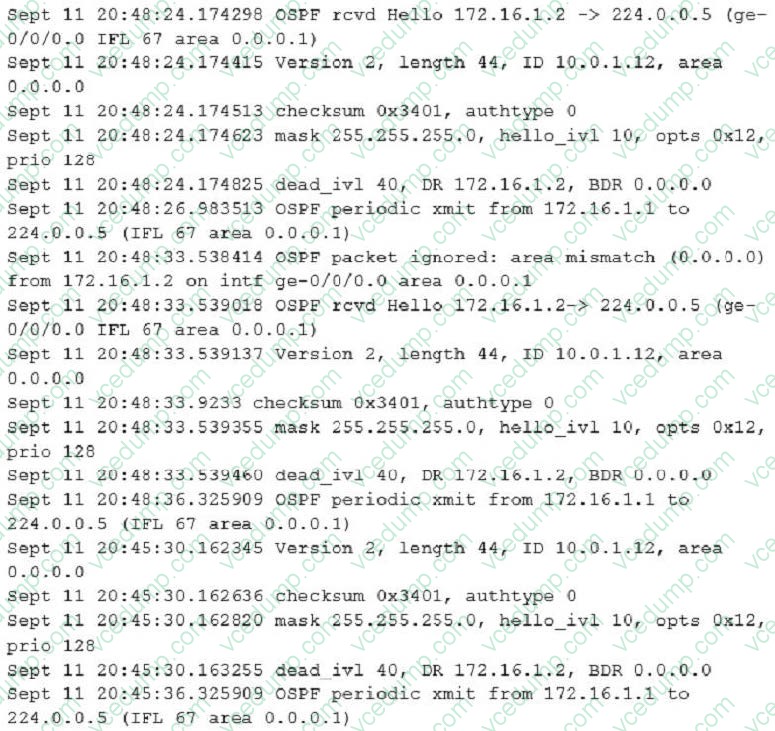

  Click the exhibit.



  You have configured OSPF between two routers. The OSPF adjacency will not form. Referring to the exhibit, what is the problem?

  A. Router is not receiving hellos on the configured interface.
  B. The OSPF version does not match on the configured interfaces.
  C. The router is not sending hellos on the configured interface.
  D. The area does not match on the configured interfaces.
  D. The area does not match on the configured interfaces.

• Question 414:

  You are configuring a trunk interface on an MX Series device and want to ensure that any outgoing frames associated with VLAN 100 are transmitted as untagged frames. Which configuration will achieve this objective?

  A. routing-interface irb.0
  B. vlan-id-list [100]
  C. native-vlan-id 100
  D. vlan-id 100
  A. routing-interface irb.0

• Question 415:

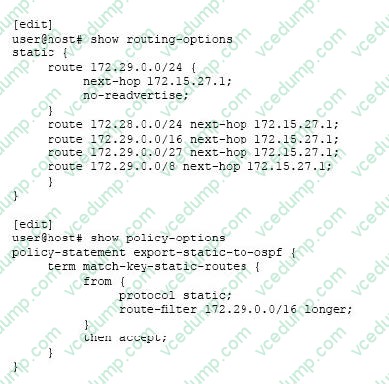

  Click the Exhibit button.



  Referring to the exhibit, which static route will be exported into OSPF?

  A. 172.29.0.0/16
  B. 172.29.0.0/17
  C. 172.28.0.0/24
  D. 172.29.0.0/24
  D. 172.29.0.0/24

• Question 416:

  Which two statements are true about unified ISSU? (Choose two.)

  A. It allows gradual implementation of new features.
  B. It reduces operating costs while delivering higher service levels.
  C. It involves network down time during software image upgrades.
  D. It requires graceful Routing Engine switchover (GRES) and nonstop active routing (NSR).
  B. It reduces operating costs while delivering higher service levels.
  D. It requires graceful Routing Engine switchover (GRES) and nonstop active routing (NSR).

• Question 417:

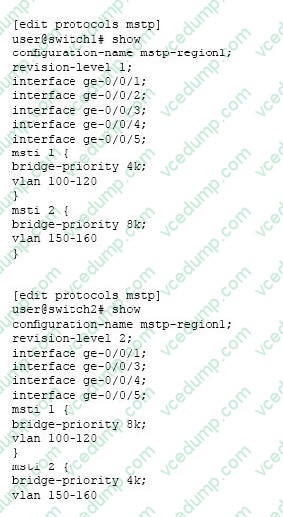

  Click the Exhibit button.



  Switch 1 and Switch 2 are configured to run MSTP. However, MSTP is not working. Referring to the exhibit, which two actions will correct the problem? (Choose two.)

  A. Configure interface ge-0/0/2 on Switch 2
  B. Correct the bridge-priority parameter to be identical on both switches.
  C. Configure revision-level 2 on Switch 1.
  D. Correct the configuration-name parameter to be identical on both switches.
  C. Configure revision-level 2 on Switch 1.
  D. Correct the configuration-name parameter to be identical on both switches.

• Question 418:

  An Ethernet bridge is configured such that all interfaces are in a single broadcast domain. Which two tasks does the bridge perform in response to receiving a frame with an unknown unicast destination MAC address? (Choose two.)

  A. It drops the frame.
  B. It floods the frame out of all interfaces except the one on which is was received.
  C. It learns the destination MAC address.
  D. It learns the source MAC address.
  B. It floods the frame out of all interfaces except the one on which is was received.
  D. It learns the source MAC address.

• Question 419:

  Which statement describes the role of local preference in the BGP route selection process?

  A. Local preference is evaluated early in the BGP route selection process and results in the route with the highest numerical local preference being selected.
  B. Local preference is evaluated early in the BGP route selection process and results in the route with the lowest numerical local preference being selected.
  C. Local preference is used to break ties when all other received BGP attributes are otherwise equal.
  D. Local preference is sent by an EBGP speaker to a neighboring AS in an attempt to influence how the remote peer's traffic will ingress into your network.
  A. Local preference is evaluated early in the BGP route selection process and results in the route with the highest numerical local preference being selected.

• Question 420:

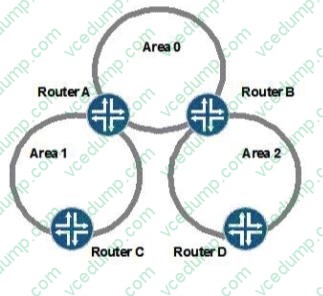

  Click the Exhibit button



  Given the OSPF network topology shown in the exhibit, you would like to inject external (non-OSPF) routes into the network on Router D. Which two OSPF area types will support this configuration? (Choose two)

  A. stub area
  B. totally stubby area
  C. not-so-stubby area
  D. non-backbone area
  C. not-so-stubby area
  D. non-backbone area
