Juniper JN0-360 Online Practice Questions and Exam Preparation

Juniper JN0-360 Online Questions & Answers

• Question 371:

  To prevent fragmentation issues across a GRE tunnel, which MTU value is recommended for the tunnel to accommodate most IP packets?

  A. 1476
  B. 1492
  C. 1500
  D. 1524
  D. 1524

• Question 372:

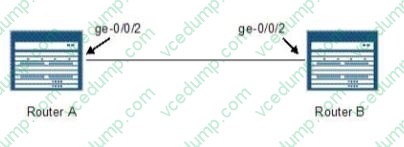

  Click the Exhibit button



  You have two routers connected over a Gigabit Ethernet link as shown in the exhibit It is required that an IS-IS adjacency be established without the need for a designated intermediate system (DIS) Which configuration statement entered on both routers will achieve this goal?

  A. set interface ge-0/0/2 unit 0 family iso no-dis
  B. set interface ge-0/0/2 unit 0 family iso point-to-point
  C. set protocols isis interface ge-0/0/2.0 no-dis
  D. set protocols isis interface ge-0/0/2.0 point-to-point
  D. set protocols isis interface ge-0/0/2.0 point-to-point

• Question 373:

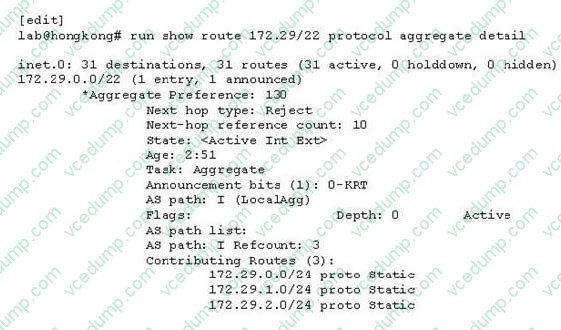

  Click the Exhibit button.



  From the output shown in the exhibit, what would happen to a packet destined for address 172.29.3.5?

  A. The address is not in the aggregate range; the packet is sent to the Routing Engine.
  B. The address is in the aggregate range; the packet will be silently dropped.
  C. The address is not in the aggregate range; the packet will be forwarded.
  D. The address is in the aggregate range; the packet will be dropped.
  A. The address is not in the aggregate range; the packet is sent to the Routing Engine.

• Question 374:

  Which three BGP attributes must be sent to EBGP peers? (Choose three.)

  A. local preference
  B. atomic aggregator
  C. origin
  D. next hop
  E. AS path
  C. origin
  D. next hop
  E. AS path

• Question 375:

  You have been asked to provision a service provider's network to accommodate Layer 3 VPNs as defined in RPC 4364.

  Which three tasks must be performed before the provider core is ready to carry VPN traffic? (Choose three.)

  A. All P routers and PE routers must be configured to support MPLS administrative-groups (colors)
  B. All PE routers must be configured to support Multiprotocol BGP (MP-BGP)
  C. All P routers and PE routers must have a signaling protocol such as RSVP or LDP enabled
  D. All P routers and PE routers must have a discovery protocol such as LLDP or CDP enabled
  E. All P routers and PE routers must have MPLS reach ability to PE routers
  B. All PE routers must be configured to support Multiprotocol BGP (MP-BGP)
  C. All P routers and PE routers must have a signaling protocol such as RSVP or LDP enabled
  E. All P routers and PE routers must have MPLS reach ability to PE routers

• Question 376:

  Which command is used to configure an IRB interface?

  A. set family inet interface irb unit 0 address 192.168.1.1/24
  B. set interface irb unit 0 family inet address 192.168.1.1/24
  C. set interface unit 0 family irb address 192.168.1.1/24
  D. set bridge-domain 0 interface irb address 192.168.1.1/24
  B. set interface irb unit 0 family inet address 192.168.1.1/24

• Question 377:

  You are asked to design a Layer 2 switched topology that can automatically recover from link failures. Which type of protocol would you consider in your design?

  A. GSTP
  B. LLDP
  C. LFM
  D. MSTP
  D. MSTP

• Question 378:

  What are two characteristics of a traditional Ethernet LAN? (Choose two.)

  A. Nodes share a physical medium.
  B. Nodes can successfully transmit simultaneously.
  C. It consists of a single broadcast domain.
  D. Nodes use a step-up algorithm when collisions are detected.
  A. Nodes share a physical medium.
  C. It consists of a single broadcast domain.

• Question 379:

  An RSVP enabled router receives an RSVP reservation message for a new RSVP path. The router is unable to accommodate the reservation request. Which action does the router take?

  A. The router sends a ResvErr message to the upstream router.
  B. The router sends a ResvErr message to the downstream router.
  C. The router sends a ResvTear message to the upstream router.
  D. The router sends a ResvTear message to the downstream router.
  D. The router sends a ResvTear message to the downstream router.

• Question 380:

  From the [edit routing-options] hierarchy, which command correctly configures an aggregate route for 64.18.128/17

  A. set aggregate route 64.18.128/17
  B. set summary route 64.18.128/17
  C. set route aggregate 64.18.128/17
  D. set route summary 64.18.128/17
  A. set aggregate route 64.18.128/17
