Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 511:

  The following is a description of the Forwarding state description error in the spanning tree protocol ().

  A. Forwarding port can receive BPDUs.
  B. Forwarding state port does not learn the source MAC address of the packet.
  C. Forwarding state port can forward data packets.
  D. Forwarding port can send BPDUs.
  B. Forwarding state port does not learn the source MAC address of the packet.

• Question 512:

  The CHAP authentication command enabled in .PPP is: ppp chap authentication.

  A. Correct
  B. Error
  B. Error

• Question 513:

  On the VRP platform, the order of the default protocol priorities of direct route, static route, RIP, and OSPF is ().

  A. Direct route, static route, RIP, OSPF
  B. Direct route, OSPF, static route, RIP
  C. Direct routing, OSPF, RIP, static routing
  D. Direct routing, RIP, static routing, OSPF
  B. Direct route, OSPF, static route, RIP

• Question 514:

  Referring to the configuration of the one-arm route in the following figure, it can be judged that even if the ARP proxy is not enabled on the sub-interface of R1, between the administrative department and the finance department Can also visit each other.



  A. Yes
  B. Wrong
  B. Wrong

• Question 515:

  The network administrator has captured a data frame in the network with a destination MAC address of 01- 00-5E-A0-B1-C3. About the MAC address The correct statement is ().

  A. It is a unicast MAC address
  B. It is a broadcast MAC address
  C. It is a multicast MAC address
  D. It is an illegal MAC address
  C. It is a multicast MAC address

• Question 516:

  The port cost calculated by STP has a certain relationship with the port bandwidth. That is, the larger the bandwidth, the more overhead ().

  A. small
  B. Big
  C. Consistent
  D. Not necessarily
  A. small

• Question 517:

  The function of InARP is the opposite of that of ARP. The main purpose is to reversely resolve the known target MAC address to the protocol address of the peer device on the Ethernet. Including IP address and IPX address.

  A. Yes
  B. Wrong
  B. Wrong

• Question 518:

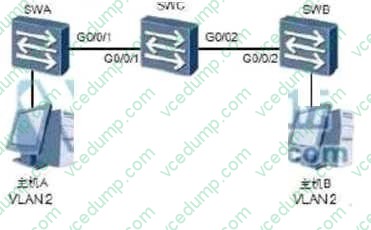

  As shown in the figure, the network administrator creates VLAN 2 on the SWA and SWB, and configures the ports connected to the host on the two switches as access terminals. Port, into VLAN 2. Configure G0/0/1 of SWA and G0/0/2 of SWB as trunk ports to allow all VLANs to pass. Then we have to implement two Hosts can communicate normally, and () is required.



  A. Create VLAN2 on SWC.
  B. Configure G0/0/1 on the SWC as the trunk port and allow VLAN 2 to pass.
  C. Configure G0/0/1 and G0/0/2 on the SWC as trunk ports and allow VLAN 2 to pass.
  D. Create VLAN 2 on the SWC, configure G0/0/1 and G0/0/2 as trunk ports, and allow VLAN 2 to pass.
  D. Create VLAN 2 on the SWC, configure G0/0/1 and G0/0/2 as trunk ports, and allow VLAN 2 to pass.

• Question 519:

  A router has learned two routes for the same network with the same prefix. One route has been learned via OSPF with a metric of 4882, while the other route has been learned via RIPv2 with a metric of 4. Which route (s) will be found in the routing table?

  A. The RIPv2 route.
  B. The OSPF and RIPv2 routes.
  C. The OSPF route.
  D. Neither of these routes will be found in the routing table.
  C. The OSPF route.

• Question 520:

  On an FR network, when the fr inarp command is executed, the interface where static address mapping entries have been configured sends an Inverse ARP Request packet to the remote device to replace the static address mapping entries.

  A. True
  B. False
  B. False
