Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 531:

  Which of the following parameters is not contained in STP configuration BPDUs?

  A. Root ID
  B. VLAN ID
  C. Bridge ID
  D. Port ID
  B. VLAN ID

• Question 532:

  OSPF allows for "multiple" processes. By default, OSPF selects a process whose number is ( ).

  B. 1
  C. 10
  D. 100
  B. 1

• Question 533:

  Which of the following statements about a port on a switch is false?



  A. If the port receives data frames without VLAN tags, the switch needs to add VLAN tag 200.
  B. If the VLAN tag carried in a data frame is 100, the switch removes the VLAN tag and sends the frame.
  C. The link type of the port is trunk.
  D. The port cannot send data frames carrying VLAN tag 200.
  C. The link type of the port is trunk.

• Question 534:

  Which of the following IPv6 addresses is a multicast address?

  A. FF02::2E0:FCFF:FEEF:FEC
  B. 2000::2E0:FCFF:FEEF:FEC
  C. FE80::2E0:FCFF:FEEF:FEC
  D. FC00::2E0:FCFF:FEEF:FEC
  A. FF02::2E0:FCFF:FEEF:FEC

• Question 535:



  Refer to the graphic. Which of the following statements is correct when this router forwards the packet to the destination host 9.1.4.5?

  A. The router selects the first entry to match the destination address of the packet because the preference of OSPF is higher than the preference of RIP.
  B. The router selects the second entry to match the destination address of the packet because the cost of RIP is lower than that of OSPF.
  C. The router selects the second entry to match the destination address of the packet because the outgoing interface is an Ethernet interface. The forwarding speed of an Ethernet interface is faster than the forwarding speed of a serial interface
  D. The router selects the second entry to match the destination address of the packet because the router will match the most specific address.
  D. The router selects the second entry to match the destination address of the packet because the router will match the most specific address.

• Question 536:

  When the administrator configures the DHCP server, which of the following commands configures the lease time to be the shortest? Ip pool pool1 Network 10.10.10.0 mask 255.255.255.0 Gateway-list 10.10.10.1

  A. dhcp select
  B. lease day 1
  C. lease 24
  D. lease 0
  B. lease day 1

• Question 537:

  In the PPP protocol, which of the following encryption algorithms is used by CHAP?

  A. DES
  B. MD5
  C. AES
  D. None
  B. MD5

• Question 538:

  On the network shown in the figure, after the OSPF protocol state is stable, what is the neighbor status between Router A and Router B?



  A. Attempt
  B. Full
  C. 2-way
  D. Down
  C. 2-way

• Question 539:

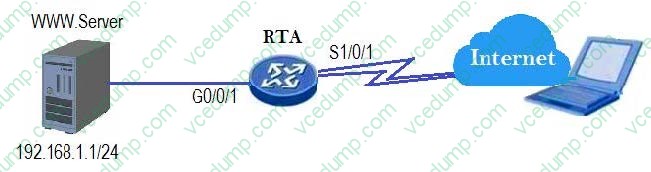

  As shown in the figure, there is a web server in the private network that needs to provide more HTTP services to the public network users, so the network administrator needs to be at the gateway. Configure NAT on the router RTA to meet the requirements. The correct configuration to meet the requirements in the following configurations is ().



  A. [RTA-Serial1/0/1] nat server protocol tcp global 202.10.10.1 www inside 192.168.1.1 8080
  B. [RTA-Serial1/0/1] nat server protocol tcp global 192.168.1.1 www inside 202.10.10.1 8080
  C. [RTA-Gigabitethernet0/0/1] nat server protocol tcp global 202.10.10.1 www inside 192.168.1.1
  D. [RTA-Gigabitethernet0/0/1]] nat server protocol tcp global 192.168.1.1 www inside 202.10.10.1
  A. [RTA-Serial1/0/1] nat server protocol tcp global 202.10.10.1 www inside 192.168.1.1 8080

• Question 540:

  Which of the following OSPF packets can be sent to request the local lacking LSAs?

  A. HELLO
  B. LSU
  C. LSR
  D. LSACK
  C. LSR
