Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 381:

  DHCP Request packets must be sent in broadcast mode.

  A. True
  B. False
  B. False

• Question 382:

  Which of the following data packets are the OSPF protocol packets encapsulated into?

  A. HTTP packet
  B. TCP packet
  C. IP packet
  D. UDP packet
  C. IP packet

• Question 383:

  In the network as shown, the following description is correct (). (multiple choice)



  A. The same collision domain between RTA and SWC
  B. The same broadcast domain between SWA and SWB
  C. SWA and SWC are both a collision domain
  D. SWA and SWC are both a broadcast domain
  C. SWA and SWC are both a collision domain
  D. SWA and SWC are both a broadcast domain

• Question 384:

  MPLS dual-label stacking packets are _____ bytes longer than original IP packets.

  A. 4
  B. 8
  C. 16
  D. 32
  B. 8

• Question 385:

  Which of the following parameters cannot be used for the advanced access control list?

  A. Physical interface
  B. Destination port number
  C. Agreement number
  D. Time range
  A. Physical interface

• Question 386:

  Which of the following statements is false about OSPF area partition?

  A. The link state databases (LSDBs) of routers are the same in the same OSPF area.
  B. OSPF area partition can reduce the LSDB size of the router.
  C. Area 0 is the backbone area, and other areas must be connected to this area.
  D. Only area border routers (ABRs) can function as the autonomous system boundary routers (ASBRs).
  B. OSPF area partition can reduce the LSDB size of the router.

• Question 387:

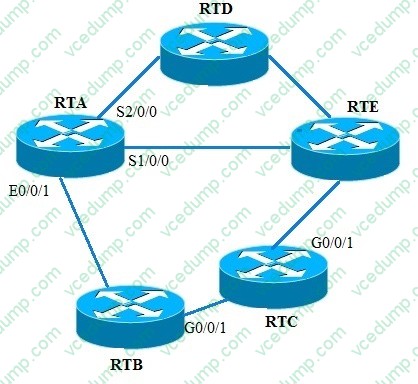

  Refer to the graphic. Which statements correctly explains the forwarding behavior between RTA and RTE? (Choose all that apply)



  A. When the network uses OSPF, data will be forwarded along the path via S1/0/0
  B. When the network uses RIPv2, data will be forwarded along the path via S1/0/0.
  C. When the network uses OSPF, data will be forwarded along the path from via E0/0/1.
  D. When the network uses RIPv2, data will be forwarded along the path via S2/0/0.
  B. When the network uses RIPv2, data will be forwarded along the path via S1/0/0.
  C. When the network uses OSPF, data will be forwarded along the path from via E0/0/1.

• Question 388:

  In OSPF, which routers does a DR other router exchange link state information with? (multiple choice)

  A. DR
  B. BDR
  C. DR other
  D. All OSPF neighbors
  A. DR
  B. BDR

• Question 389:

  A configured internal host of a private network wishes to access the internet. What must be configured on the enterprise network's edge router in order to achieve this? (Choose two)

  A. NAT EasyIP
  B. DHCP
  C. BGP
  D. Default route
  A. NAT EasyIP
  D. Default route

• Question 390:

  The administrator wishes to update the configuration file of an AR2200 router using a USB cable. How can this be achieved? (Choose two)

  A. The administrator should connect the USB cable between the terminal and the mini USB port of the AR2200 router.
  B. The administrator should connect the USB cable between the terminal and the USB port of the AR2200 router.
  C. The AR2200 router cannot support configuration updates through a USB cable.
  D. The administrator should install the mini USB drivers on the terminal after connecting the USB.
  A. The administrator should connect the USB cable between the terminal and the mini USB port of the AR2200 router.
  D. The administrator should install the mini USB drivers on the terminal after connecting the USB.
