Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 21:

  Your network contains a server named Server1 that runs Windows Server 2008 R2. The network contains two sites named Site1 and Site2 that are separated by a firewall. Server1 is configured as a Key Management Service (KMS) host

  located in Site1.

  You need to configure the firewall so that computers in Site2 can activate Windows by using Server1.

  Which TCP port should you allow through the firewall?

  A. 135
  B. 443
  C. 1433
  D. 1688
  D. 1688

  ---

  KMS requires a firewall exception on the KMS host. If using the default TCP port, enable the KMS Traffic exception in Windows Firewall. If using a different firewall, open TCP port 1688. If using a non-default port, open the custom TCP port in the firewall.

  Source: http://technet.microsoft.com/en-us/library/ff793409.aspx

• Question 22:

  Your network contains a single Active Directory domain. The domain contains two Active Directory sites named Site1 and Site2.

  You have a cluster named Cluster1. Cluster1 has two nodes named Server1 and Server2. Server1 is located in Site1. Server2 is located in Site2. Cluster1 uses a file share witness that is located in Site1.

  Cluster1 hosts a clustered application named App1.

  The network in Site1 fails.

  You need to ensure that users can access App1.

  What should you do?

  A. Force quorum on Server2.
  B. Enable persistent mode for App1.
  C. Modify the dependencies for App1.
  D. Modify the failover settings for App1.
  A. Force quorum on Server2.

  ---

  Force Quorum in a Single-Site or Multi-Site Failover Cluster You can force quorum in a single-site or multi-site cluster. Forcing quorum means that you start the cluster even though only a minority of the elements that are required for quorum are in communication.

  This command is important to know for multi-site clusters with an odd number of nodes. The recommended design for a multi-site cluster has an even number of nodes, but it is possible to create a multi-site design using an odd number of nodes, with the majority of nodes at the main site. As with all configurations with an odd number of nodes, such a design should use the Node Majority quorum configuration. If you use this design and the main site goes down, to start the secondary site (which has a minority of the nodes) you will need to force quorum, that is, force all nodes which can communicate with each other to begin working together as a cluster.

  To force quorum in a single-site or multi-site cluster

  1.

  On a node that contains a copy of the cluster configuration that you want to use, open a Command Prompt window.

  Important The choice of node can be important when you are forcing quorum, because one node could potentially have an older copy of the cluster configuration database than another node or nodes. The cluster will use the copy of the

  cluster configuration that is on the node on which you perform this procedure. The cluster will then replicate that copy to all other nodes.

  2.

  On that node, type the following command: net start clussvc /fq Additional considerations

  To open a Command Prompt window, click Start, right-click Command Prompt, and then either click Run as administrator or click Open. If the User Account Control dialog box appears, confirm that the action it displays is what you want, and then click Continue. When a cluster is forced to start without quorum it continually looks to add nodes to the cluster and is in a special "forced" state. Once it has majority, the cluster moves out of the forced state and behaves normally, which means it is not necessary to rerun the command without the /fq option. If the cluster moves out of the forced state, loses a node, and drops below quorum, it will go offline again. At that point, to bring it online again while it does not have quorum would require running the command again with the /fq option.

  Source: http://technet.microsoft.com/nl-nl/library/dd197500.aspx

• Question 23:

  You deploy a server that has Microsoft SharePoint Foundation 2010 installed. You need to ensure that all SharePoint site content and server farm configurations are backed up automatically every night.

  What should you do?

  A. From Central Administration, configure a Full Backup.
  B. From Central Administration, configure a Granular Backup.
  C. Create a scheduled task that uses the Backup-SPSite cmdlet.
  D. Create a scheduled task that uses the Backup-SPFarm cmdlet.
  D. Create a scheduled task that uses the Backup-SPFarm cmdlet.

  ---

  Backup-SPFarm

  Creates a backup of an individual database, Web application, or the entire farm.



  Source: http://technet.microsoft.com/en-us/library/ff607881.aspx Backup-SPSite Performs a backup of a site collection.



  Source: http://technet.microsoft.com/en-us/library/ff607901.aspx

• Question 24:

  Your company has an Active Directory domain. The company runs Remote Desktop Services. You configure the main office printer as the default printer on the Remote Desktop Session Host Server. The company policy states that all remote

  client computers must meet the following requirements:

  The main office printer must be the default printer of the client computers. Users must be able to access their local printers during a remote desktop session.

  You need to create a Group Policy object (GPO) by using the Remote Desktop Session Host Printer Redirection template to meet the company policy.

  What should you do?

  A. Set the Use Remote Desktop Easy Print printer driver first option to Disabled. Apply the GPO to the Remote Desktop Session Host Server.
  B. Set the Use Remote Desktop Easy Print printer driver first option to Disabled. Apply the GPO to all the client computers.
  C. Set the Do not set default client printer to be default printer in a session option to Enabled. Apply the GPO to the Remote Desktop Session Host Server.
  D. Set the Do not set default client printer to be default printer in a session option to Enabled. Apply the GPO to all the client computers.
  C. Set the Do not set default client printer to be default printer in a session option to Enabled. Apply the GPO to the Remote Desktop Session Host Server.

  ---

  Do not set default client printer to be default printer in a session This policy setting allows you to specify whether the client default printer is automatically set as the default printer in a Terminal Services session.

  By default, Terminal Services automatically designates the client default printer as the default printer in a Terminal Services session. You can use this policy setting to override this behavior. If you enable this policy setting, the default printer is

  the printer specified on the remote computer. If you disable this policy setting, the terminal server automatically maps the client default printer and sets it as the default printer upon connection.

  If you do not configure this policy setting, the default printer is not specified at the Group Policy level. However, an administrator can configure the default printer for client sessions by using the Terminal Services Configuration tool.

  Source: http://technet.microsoft.com/en-us/library/cc731963(WS.10).aspx

• Question 25:

  Your network contains a server named Server1 that runs Windows Server 2008 R2.

  You have a Microsoft Application Visualization (App-V) application named Appl.

  You need to publish App1 as a RemoteApp program.

  Which role service should you install on Server1?

  A. Remote Desktop Gateway (RD Gateway)
  B. Remote Desktop Visualization Host (RD Visualization Host)
  C. Remote Desktop Web Access (RD Web Access)
  D. Remote Desktop Session Host (RD Session Host)
  D. Remote Desktop Session Host (RD Session Host)

• Question 26:

  Your network contains a Web server named Server1 that runs Windows Server 2008 R2. The network contains two subnets named Subnet1 and Subnet2.

  Server1 contains a Web site named Site1.

  You need to prevent Server1 from responding to requests that originate from subnet2.

  Which feature should you configure from Internet Information Services (IIS) Manager?

  A. Default Document
  B. Authorization Rules
  C. Feature Delegation
  D. ISAPI and CGI Restrictions
  E. Connection strings
  F. HTTP Response Headers
  G. Error Pages
  H. IP Address and Domain Restrictions
  I. Management Service
  J. Request Filtering
  H. IP Address and Domain Restrictions

• Question 27:

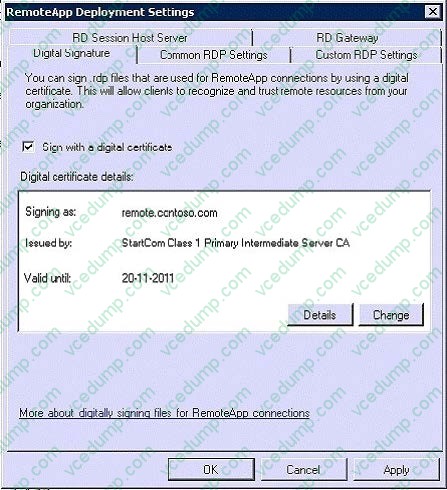

  Your network contains a Remote Desktop server. The server hosts 10 RemoteApp programs.

  You need to configure a digital signature for the RemoteApp programs.

  What should you modify?

  A. the Remote Desktop connection authorization policies (RD CAPs)
  B. the Remote Desktop resource authorization policies (RD RAPs)
  C. the RemoteApp and Desktop Connection properties
  D. the RemoteApp Deployment Settings
  D. the RemoteApp Deployment Settings

  ---



• Question 28:

  You have a server that runs Windows Server 2008 R2. The server has Microsoft SharePoint Foundation 2010 installed. The server is configured to accept incoming email.

  You create a new document library.

  You need to ensure that any user can send e-mail to the document library.

  What should you do?

  A. Modify the RSS setting for the document library.
  B. Modify the permissions for the document library.
  C. Modify the incoming email settings for the document library.
  D. Enable anonymous authentication for the Web application.
  C. Modify the incoming email settings for the document library.

  ---

  Enable and configure email settings for a library Use this procedure to enable and configure email settings for a library to receive email messages in the SharePoint document library in a site. Enable and configure email settings for a library

  1. Open the site in which you want to receive email messages by using either of the following methods:

  -In Internet Explorer, type the URL o the site.

  - On the View Site Collection page, click the site collection that you want to view.

  2.

  In the left navigation pane of the home page, click View All Site Content.

  3.

  In the Documents section, click a document library name to open the library for which you want to enable and configure email settings.

  4.

  On the Settings menu, click Document Library Settings, Picture Library Settings, or Form Library Settings, depending on the kind of library that you are enabling and configuring.

  5.

  In the Communications section, click Incoming email settings.

  6.

  In the Email section, select Yes to enable this library to receive email messages.

  7.

  In the Email address box, type a unique name to use as part of the email address for this library.

  8.

  In the Email Attachments section, decide where to save and how to group the email attachments in this library, and then choose whether to overwrite files that have the same name. Note: If you decide not to overwrite files that have the same name and then later try to save a file that has the same name as one that already exists in the library, four random digits are appended to the file name for the new attachment. If this action fails, a globally unique identifier (GUID) is appended to the file name. If neither of these actions can produce a unique file name, the attachment is discarded.

  9.

  In the Email Message section, choose whether to save the original email message in this library. If you select Yes, the original message is saved as a separate item in the library.

  10.

  In the Email Meeting Invitations section, choose whether to save the attachments to your meeting invitations in this library.

  11.

  In the Email Security section, choose whether to archive email messages only from members of the site who can write to the library or to archive regardless of who sends the email message.

  12.

  Click OK to save the changes that you have made in the settings.

  Source: http://technet.microsoft.com/en-us/library/cc262800.aspx

• Question 29:

  Your network contains a server named Server1.

  Server1 has the Web Server (IIS) server role installed and all of the Web Server (IIS) role services installed.

  You install the SMTP Server feature on Server1.

  You need to configure size limits for messages processed by the SMTP server.

  Which tool should you use? (Each correct answer presents a complete solution. Choose two.)

  A. Internet Information Services (IIS) Manager
  B. Computer Management
  C. Internet Information Services (IIS) 6.0 Manager
  D. ADsutil.vbs
  E. Netsh.exe
  F. Services.msc
  C. Internet Information Services (IIS) 6.0 Manager
  D. ADsutil.vbs

  ---

  Use adsutil.vbs

  Make meta-database modifications from admin elevated command prompt. This step relies on a script file adsutil.vbs that is only installed, if you add IIS 6 Compatibility Feature. Values in IIS meta-database are arranged in a series of sub-folders. Command adsutil.vbs ENUM allows to list all sub-folders and all the values at a given level. Example: cscript C:\Inetpub\AdminScripts\adsutil.vbs SET SMTPSVC/MaxMessageSize 10485760 --OR-Use IIS 6.0 Manager In Windows Server 2003 IIS6 you were able to change SMTP properties from within Internet Information Services (IIS) Manager. In Windows Server 2008 the IIS7 Manager does not handle SMTP anymore... but you can modify it by using the old IIS6 Manager which is provided as part of the Windows Server 2008 Administrative Tools.

  Under Administration Tools you will now find two different IIS Manager entries. One for IIS7 and one for IIS6. Choose the IIS6 Manager to change the SMTP properties.



  The IIS6 Manager will only have an item for the SMTP Virtual Server. Right-click on the SMTP Virtual Server and select properties.



  This will display the familiar SMTP Properties dialog that you are used to from Windows Server 2003. Now you will be able to change things such as the size limit of the messages, the number of messages per connection, outbound delivery delay notifications, etc.

  Source: http://weblogs.asp.net/jeffwids/archive/2009/08/28/windows-server-2008-iis7-smtp- properties.aspx

• Question 30:

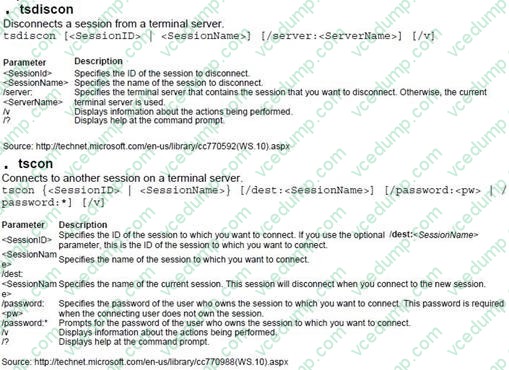

  Your company has an Active Directory domain. The company runs Remote Desktop Services. All Remote Desktop Services accounts are configured to allow session takeover without permission. A user has logged on to a server named

  Server2 by using an account named User1. The session ID for User1 is 1337.

  You need to perform a session takeover for session ID 1337.

  Which commands should you run?

  A. Chgusr 1337 /disable, and then Tscon 1337
  B. Takeown /U User1 1337, and then Tscon 1337
  C. Tsdiscon 1337, and then Chgport /U User1 1337
  D. Tsdiscon 1337, and then Tscon 1337
  D. Tsdiscon 1337, and then Tscon 1337

  ---



  Wrong answers:

  chgport

  Lists or changes the COM port mappings to be compatible with MS-DOS applications. Source: http://technet.microsoft.com/en-us/library/cc771976(WS.10).aspx

  chgusr

  Changes the install mode for the terminal server.

  Source: http://technet.microsoft.com/en-us/library/cc755189(WS.10).aspx takeown Enables an administrator to recover access to a file that previously was denied, by making the administrator the owner of the file.

  Source: http://technet.microsoft.com/en-us/library/cc753024(WS.10).aspx
