4A0-103 Real Exam Questions

Nokia Multiprotocol Label Switching

249 questions available · Page 1 of 25

Updated Exam DumpsVerified AnswersPass Guarantee

Get Complete Exam Dumps
Question 1 Single choice

Which of the following statements regarding the MPLS SWAP label operation is true?

  1. A

    The inner label will be exchanged with the MPLS outer label.

  2. B

    The inner label will be exchanged for a new label.

  3. C

    The outer label will be exchanged for a new label.

  4. D

    All labels will be exchanged for one new label.

  5. E

    All labels will be exchanged for an equal number of new labels.

Show answer and explanation

Correct answer: C

Question 2 Single choice

Which of the following regarding MPLS Encapsulation is FALSE?

  1. A

    The customer's Layer 2 header is preserved at the iLER for Layer 2 services.

  2. B

    The customer's Layer 2 Header is preserved at the iLER for Layer 3 services.

  3. C

    The service provider's Layer 2 header is added at the iLER for Layer 2 services.

  4. D

    The service provider's Layer 2 header is added at the iLER for Layer 3 services.

Show answer and explanation

Correct answer: B

Question 3 Multiple choice

Which of the following are features of RSVP-TE? Choose three answers.

  1. A

    It supports IGP-based LSPs.

  2. B

    It supports constrained path LSPs.

  3. C

    It does not support loose explicit path LSPs.

  4. D

    It is recommended for use in Traffic Engineering applications.

  5. E

    It cannot be used with facility backup fast reroute.

Show answer and explanation

Correct answers: A, B, D

Question 4 Multiple choice

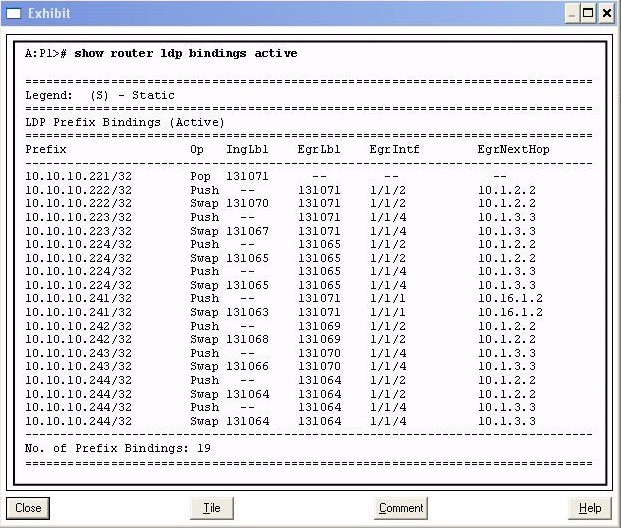

Click on the exhibit button below.

Given the output below, which of the following statements are true? (Choose three)

  1. A

    A packet arriving with label 131066 and destined for prefix 10.10.10.243/32 will be forwarded out
    interface 1/1/4, with label 131070.

  2. B

    LDP ECMP is enabled.

  3. C

    The router's system address is 10.10.10.242/32.

  4. D

    There are multiple LSPs to reach FEC 10.10.10.244/32.

  5. E

    The router cannot receive any unlabeled packets destined for prefix 10.10.10 223/32.

Show answer and explanation

Correct answers: A, B, D

Question 5 Multiple choice

Which of the following statements regarding per-platform label space are true? Choose two answers.

  1. A

    A separate label is used for each interface that the FEC is advertised on.

  2. B

    It uses fewer label resources than a per-interface label space.

  3. C

    It is typically used when the device has ATM or Frame Relay interfaces.

  4. D

    It uses more label resources than a per-interface label space.

  5. E

    A single label may be assigned to an FEC and used across all interfaces of the same router.

  6. F

    It is only valid when the LDP peers are directly connected over an interface, and the label is only going to be used for traffic sent over that interface.

Show answer and explanation

Correct answers: B, E

Question 6 Multiple choice

If the destination IP address of a received unlabeled packet is successfully matched in the FIB, which of the following statements are true? Choose two answers.

  1. A

    A PUSH label stack operation must be performed.

  2. B

    The outgoing interface and next-hop address will be determined from the FIB.

  3. C

    The packet can be forwarded as a labeled or unlabeled packet.

  4. D

    A POP label stack operation may be performed.

Show answer and explanation

Correct answers: B, C

Question 7 Single choice

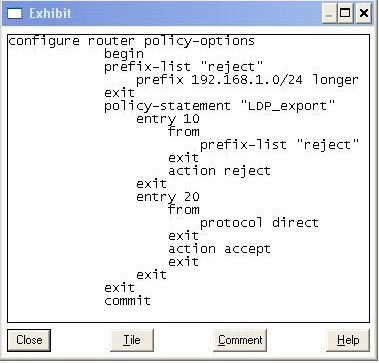

Click on the exhibit button.

The policy on router R2 is applied as an LDP export policy.

What FECs now appear in router R2's LIB?

  1. A

    Local FECs, not including those in the 192.168.1.0/24 address space.

  2. B

    Only system ID FECs may appear in the LIB.

  3. C

    Any local FECs, except those with a 24 bit mask.

  4. D

    Local FECs in the 192.168.1.0/24 address space

Show answer and explanation

Correct answer: A

Question 8 Single choice

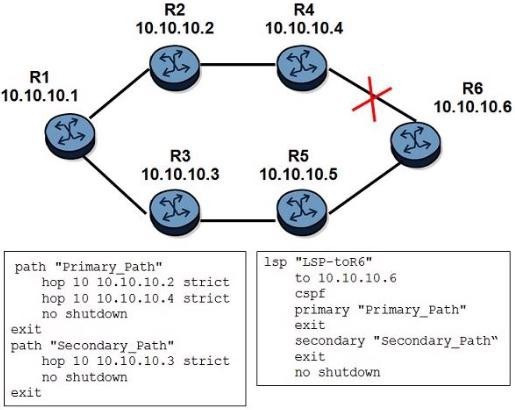

Click on the exhibit.

All links are operationally up initially.

When the link between routers R4 and R6 goes down, what will router R1 do?

  1. A

    Router R1 will switch traffic to the secondary path immediately.

  2. B

    Router R1 will discard traffic until a new IGP route to router R6 is re-calculated.

  3. C

    Router R1 will discard traffic because the secondary path is not a fully strict path.

  4. D

    Router R1 will signal the secondary path and switch traffic to it.

Show answer and explanation

Correct answer: D

Question 9 Single choice

Which mode does the following statement describe? An LSR will advertise a label mapping immediately, without waiting for a label mapping from the FEC's next-hop.

  1. A

    Liberal label retention mode

  2. B

    Conservative label retention mode

  3. C

    Ordered control mode

  4. D

    Independent control mode

Show answer and explanation

Correct answer: D

Question 10 Single choice

Which of the following regarding MPLS encapsulation for VPRN services is TRUE?

  1. A

    The customer's Layer 3 header is removed at the iLER.

  2. B

    The customer's Layer 2 header is removed at the iLER.

  3. C

    The customer's Layer 3 header is removed at the eLER.

  4. D

    The customer's Layer 2 header is removed at the eLER.

Show answer and explanation

Correct answer: A
