• Question 61:

  Which of the following prerequisites must you configure on a router to enable LDP-over-RSVP support? (Choose two)

  A. Configure the T-LDP peers for tunneling.
  B. Configure tunneled T-LDP sessions between PE routers.
  C. Enable Idp-over-rsvp in the IGP configuration on the PEs and ABRs
  D. Enable LSP stitching on the RSVP LSPs
  A. Configure the T-LDP peers for tunneling.
  C. Enable Idp-over-rsvp in the IGP configuration on the PEs and ABRs

• Question 62:

  Click on the exhibit button below.

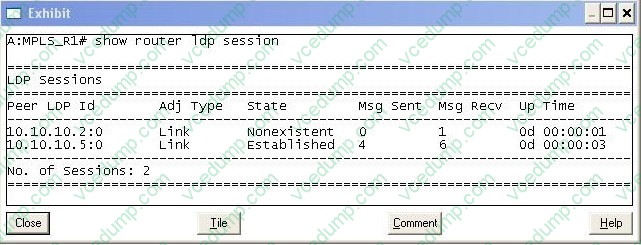

  Under which condition might the peer LDP ID 10.10.10.2:0 entry show state "Nonexistent"?

  A. When the interface to the peer router is down.
  B. When router R1 has no route to the peer address 10.10.10.2.
  C. When the adjacency between the two routers fails.
  D. When the targeted session is not yet configured.
  B. When router R1 has no route to the peer address 10.10.10.2.

• Question 63:

  Which MPLS mode saves only active label mappings received from peer LSRs?

  A. Conservative label retention
  B. Liberal label retention
  C. Downstream on demand
  D. Downstream unsolicited
  A. Conservative label retention

• Question 64:

  Click on the exhibit button below.

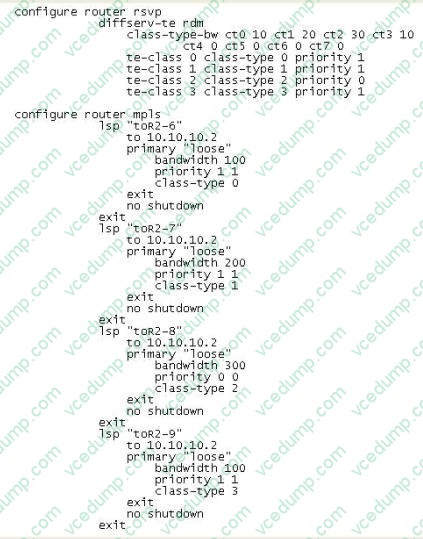

  If the four LSPs shown use the shared-explicit reservation style, how much bandwidth does CSPF request across a single 1Gbps link?

  A. 100Mbps
  B. 200Mbps
  C. 300Mpbs
  D. 600Mbps
  E. 700Mbps
  E. 700Mbps

• Question 65:

  Click on the exhibit button below.

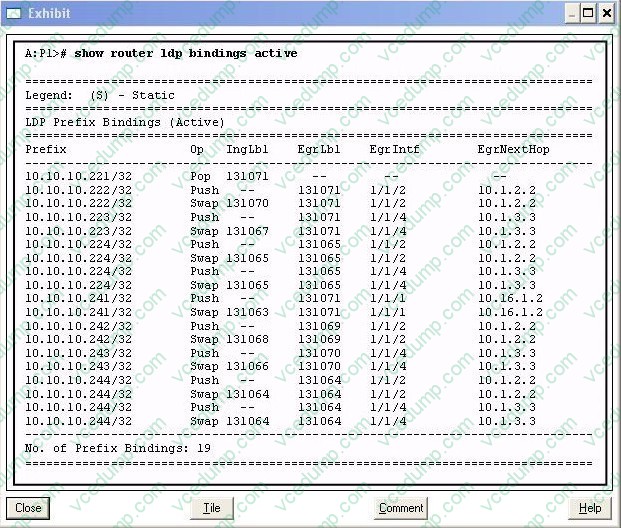

  Given the output below, which of the following statements are true? (Choose three)

  A. A packet arriving with label 131066 and destined for prefix 10.10.10.243/32 will be forwarded out interface 1/1/4, with label 131070.
  B. LDP ECMP is enabled.
  C. The router's system address is 10.10.10.242/32.
  D. There are multiple LSPs to reach FEC 10.10.10.244/32.
  E. The router cannot receive any unlabeled packets destined for prefix 10.10.10 223/32.
  A. A packet arriving with label 131066 and destined for prefix 10.10.10.243/32 will be forwarded out interface 1/1/4, with label 131070.
  B. LDP ECMP is enabled.
  D. There are multiple LSPs to reach FEC 10.10.10.244/32.

• Question 66:

  Which of the following about an LSP protected with one-to-one FRR is TRUE?

  A. The LSP can use facility and one-to-one FRR simultaneously.
  B. The LSP is limited to node protection.
  C. A single protection tunnel is used for all LSPs with the same path.
  D. A detour protection tunnel is created for the LSP.
  D. A detour protection tunnel is created for the LSP.

• Question 67:

  Assume that, on the Alcatel-Lucent 7750 SR, an LSP is configured with one-to-one FRR and node protection. Which of the following statements are FALSE? (Choose two)

  A. Each PLR signals a detour LSP that avoids the downstream node. If the downstream node cannot be avoided, a detour LSP that avoids the downstream link is signaled.
  B. The detour LSP can take one or more hops before merging back on the protected LSP.
  C. The merge point of the protected LSP must be the next-next-hop node
  D. The ingress router will set the local protection desired flag in the session attribute object of the path message to inform all routers along the protected LSP path to establish detour LSPs.
  E. The label recording desired flag must be set in the session attribute object in order for the PLR to know what label to swap when using the detour LSP.
  C. The merge point of the protected LSP must be the next-next-hop node
  E. The label recording desired flag must be set in the session attribute object in order for the PLR to know what label to swap when using the detour LSP.

• Question 68:

  Which of the following about Link TLVs found inside Type 10 Opaque LSAs is FALSE?

  A. Link TLVs are used to advertise administrative group information.
  B. Link TLVs are exchanged once RSVP is enabled on the interfaces.
  C. Link TLVs are used to advertise router-IDs.
  D. Link TLVs are used to advertise bandwidth information.
  C. Link TLVs are used to advertise router-IDs.

• Question 69:

  Click on the exhibit.

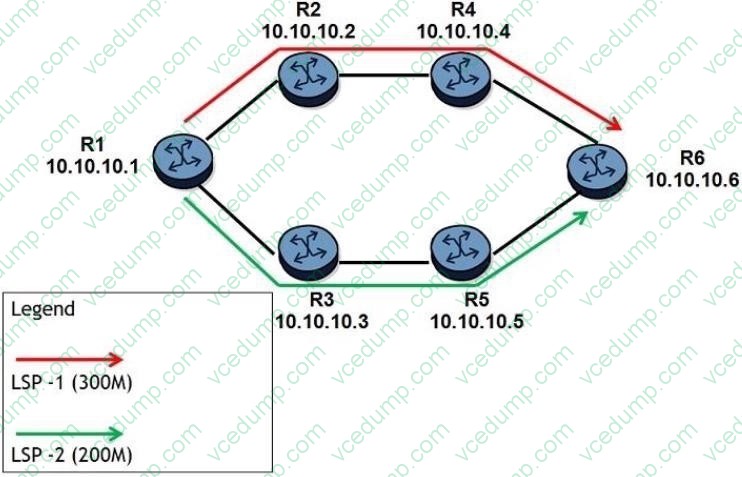

  Initially, all links along the path R1-R2-R4-R6 have 400Mbps unreserved bandwidth and all links along the path R1-R3-R5-R6 have 800Mbps unreserved bandwidth. Shared Explicit reservation style is used and Make-Before-Break is enabled. Both fully loose LSPs have been signaled as shown. Later, the configured bandwidth for LSP-1 is changed to 400Mbps. Which of the following is TRUE?

  A. After a new path for LSP-1 is established on R1-R3-R5-R6, the old path is torn down.
  B. After the old path for LSP-1 is torn down, the new path is established on R1-R3-R5-R6.
  C. LSP-1 will stay on R1-R2-R4-R6 because there is enough bandwidth on the existing path.
  D. LSP-1 will be torn down because CSPF fails to find a new path.
  C. LSP-1 will stay on R1-R2-R4-R6 because there is enough bandwidth on the existing path.

• Question 70:

  Which of the following about RSVP-TE LSP configuration in a Alcatel-Lucent 7750 SR is TRUE?

  A. LSPs must always terminate on a system ID.
  B. MPLS and RSVP must be enabled on all LSRs.
  C. CSPF must be enabled.
  D. Path definitions must include at least one hop entry.
  B. MPLS and RSVP must be enabled on all LSRs.
