Nokia 4A0-103 Online Practice Questions and Exam Preparation

Nokia 4A0-103 Online Questions & Answers

• Question 91:

  Which of the following statements regarding the last two octets of the LDP identifier is true?

  A. It is always a random 16-bit number.
  B. It is always zero for per-interface label space.
  C. It is always non-zero.
  D. It is always zero for per-platform label space.
  E. It is always non-zero for per-platform label space.
  D. It is always zero for per-platform label space.

• Question 92:

  An Alcatel-Lucent 7750 SR enabled with LDP has multiple equal cost paths to a given FEC. After ECMP is enabled, which of the following is FALSE?

  A. The router has new entries added for the given FEC in its LIB.
  B. The router has new entries added for the given FEC in its FIB.
  C. The router generates a single label for the given FEC and advertises it to all its peers,
  D. The router has multiple LSP tunnels for the given FEC.
  A. The router has new entries added for the given FEC in its LIB.

• Question 93:

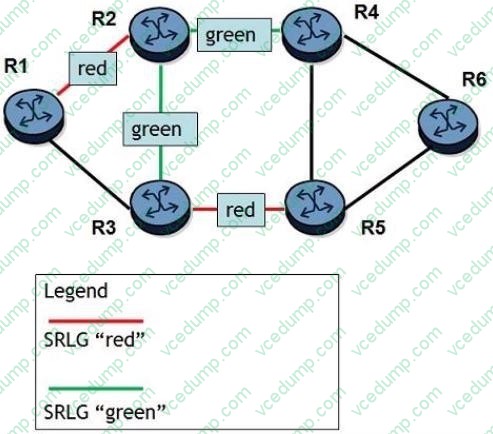

  Click on the exhibit.



  An LSP's primary path takes R1-R3-R5-R6. Its fully loose secondary path is configured for SRLG. All links are of equal cost. Which path will the secondary path take?

  A. The secondary path will take R1-R3-R2-R4-R6.
  B. The secondary path will take R1-R2-R4-R6.
  C. The secondary path will take R1-R2-R3-R5-R6.
  D. The secondary path will take R1-R3-R2-R4-R5-R6.
  A. The secondary path will take R1-R3-R2-R4-R6.

• Question 94:

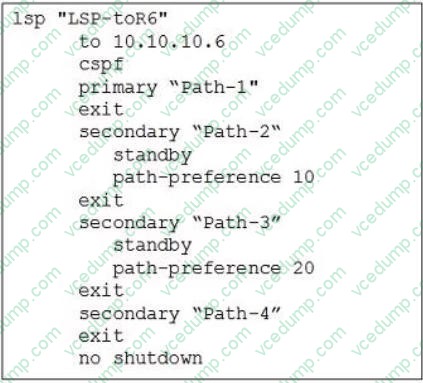

  Click on the exhibit.



  Both Path-1 and Path-2 are down. If Path-2 becomes available again, how does the headend router select the secondary LSP path?

  A. The router will switch to Path-2 because it is the first secondary path configured in the list.
  B. The router will not switch to Path-2 because the current path has the longest uptime.
  C. The router will switch to Path-2 because it is a more preferred path.
  D. The router will not switch to Path-2 because the router will not revert to another secondary path.
  C. The router will switch to Path-2 because it is a more preferred path.

• Question 95:

  Which of the following statements regarding LSPs are true? (Choose two)

  A. IGP-based LSPs are established solely from information contained in routing tables.
  B. The constraint-based routed LSP is calculated at the ingress of the network, based on the router database and user defined constraints.
  C. The constraint-based routed LSP is calculated at each hop of the LSP, based on the route table and user defined constraints.
  D. IGP-based LSPs must use LDP signaling.
  A. IGP-based LSPs are established solely from information contained in routing tables.
  B. The constraint-based routed LSP is calculated at the ingress of the network, based on the router database and user defined constraints.

• Question 96:

  Which of the following statements regarding LSP path configuration are true? (Choose three)

  A. The path must include at least one hop.
  B. The path may be used multiple times in a single LSP.
  C. The path may comprise loose hop entries only.
  D. The path must define the LSP's tail end.
  E. The path may be used for multiple LSPs.
  C. The path may comprise loose hop entries only.
  E. The path may be used for multiple LSPs.

• Question 97:

  What is the goal of MPLS Traffic Engineering?

  A. To establish additional LSPs across the network
  B. To allow ECMP to occur across an MPLS network
  C. To enable the implementation of services
  D. To utilize paths other than the lowest cost path
  D. To utilize paths other than the lowest cost path

• Question 98:

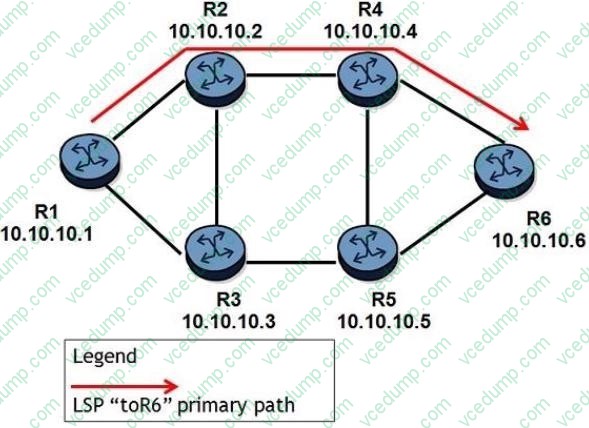

  Click on the exhibit.



  An LSP traverses R1-R2-R4-R6 and facility fast reroute with link protection is enabled. All links have the same cost. Which of the following about PLRs and MPs is TRUE?

  A. R1, R2, and R4 can be PLRs; R6 is the MP.
  B. R1, R2, and R4 can be PLRs; R2, R4, and R6 are MPs.
  C. R1, R2, R3, R4, and R5 can be PLRs; R6 is the MP.
  D. R1, R2, R3. R4, and R5 can be PLRs; R2, R4, and R6 is the MP.
  B. R1, R2, and R4 can be PLRs; R2, R4, and R6 are MPs.

• Question 99:

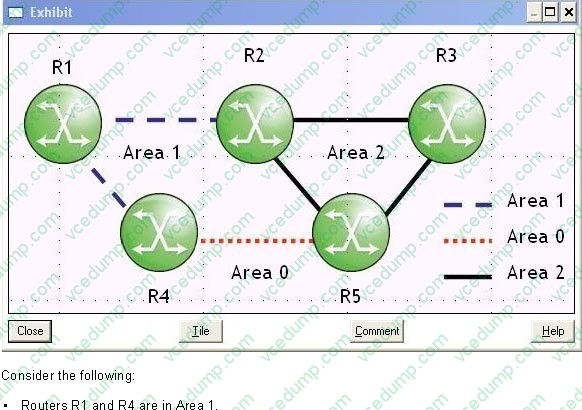

  Click on the exhibit button below.





  Routers R1 and R4 are in Area 1.

  Consider the following:



  Routers R4 and R5 in Area 0.



  Routers R5 and R3 are in Area 2.

  To support LDP-over-RSVP tunnels between routers R1 and R3 over path R1-R4-R5-R3, with which routers will router R5 require targeted sessions? (Choose two)

  A. Router R1
  B. Router R4
  C. Router R2
  D. Router R3
  B. Router R4
  D. Router R3

• Question 100:

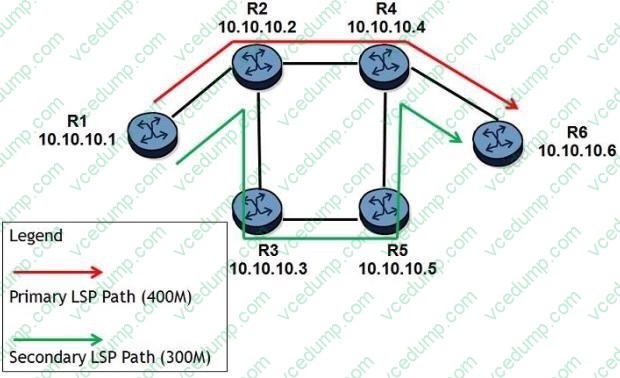

  Click on the exhibit.



  All links have 1 Gbps unreserved bandwidth initially. After the LSP's primary and standby secondary paths are signaled, how much bandwidth is reserved on the link between routers R1 and R2?

  A. If Shared Explicit reservation style is used, 400Mbps is reserved.
  B. If Shared Explicit reservation style is used, 700Mbps is reserved.
  C. If Fixed Filter reservation style is used, 400Mbps is reserved.
  D. If Fixed Filter reservation style is used, 300Mbps is reserved.
  A. If Shared Explicit reservation style is used, 400Mbps is reserved.
