Nokia 4A0-103 Online Practice Questions and Exam Preparation

Nokia 4A0-103 Online Questions & Answers

• Question 71:

  Click on the exhibit.



  The partial command output from an Alcatel-Lucent 7750 SR is shown. Which of the following about this LSP path is TRUE?

  A. R4 (10.10.10.4) has established a link protection tunnel.
  B. R6 (10.10.10.6) has established a link protection tunnel.
  C. R2 (10.10.10.2) has established a node protection tunnel.
  D. R1 (10.10.10.1) has not established a node protection tunnel.
  A. R4 (10.10.10.4) has established a link protection tunnel.

• Question 72:

  Which of the following regarding the MPLS SWAP label operation is TRUE?

  A. The inner label will be exchanged with the MPLS outer label.
  B. The inner label will be exchanged for a new label.
  C. The outer label will be exchanged for a new label.
  D. All labels will be exchanged for one new label.
  E. All labels will be exchanged for an equal number of new labels.
  C. The outer label will be exchanged for a new label.

• Question 73:

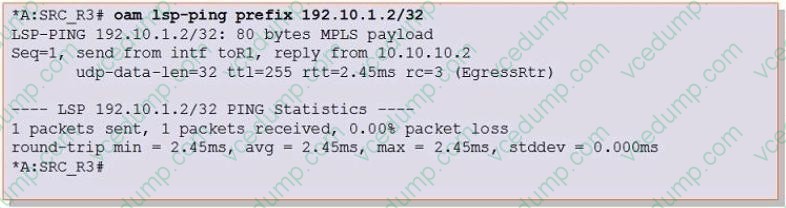

  Click on the exhibit.



  Which of the following is FALSE?

  A. The router can reach prefix 192.10.1.2/32 through a RSVP-TE tunnel.
  B. The router can reach prefix 192.10.1.2/32 through an LDP tunnel.
  C. The router 10.10.10.2 is the egress router of the prefix 192.10.1.2/32.
  D. The Isp-ping tool is used to perform a unidirectional LSP test.
  A. The router can reach prefix 192.10.1.2/32 through a RSVP-TE tunnel.

• Question 74:

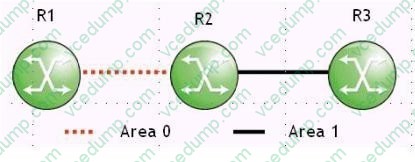

  Click on the exhibit button below:



  Consider the following:

  -Router R2 is an ABR in OSPF Areas 0 and 1.

  -

  Router R2 advertises the aggregate prefix 10.10.10.0/24 into Area 1.

  -

  Router R1 in Area 0 generates LDP labels for FECs 10.10.102/31 and 10.10.10.4/31 Router R3 in Area 1 places these FECs in its LIB, but it does not place them in its LFIB. What can you do on router R3 to make it populate these labels in its LFIB?

  A. Disable route summarization on router R3
  B. Enable LDP aggregate prefix match
  C. Create an import policy to accept these FECs
  D. Disable LDP exact match on the specified FECs
  B. Enable LDP aggregate prefix match

• Question 75:

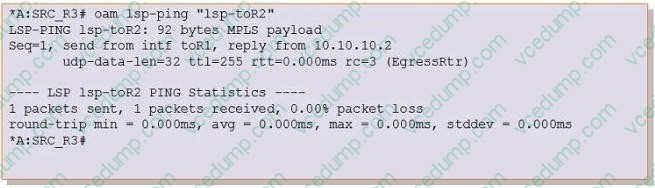

  Click on the exhibit.



  Which of the following is FALSE?

  A. The Isp-ping tool is used to perform a unidirectional LSP test.
  B. The router 10.10.10.2 is the egress router of the LSP.
  C. The router can reach the far-end of the LSP through an RSVP-TE tunnel.
  D. The router can reach the far-end of the LSP through an LDP tunnel.
  D. The router can reach the far-end of the LSP through an LDP tunnel.

• Question 76:

  Which of the following modes are used by RSVP-TE on an Alcatel-Lucent 7750 SR?

  A. Independent control mode, downstream on demand
  B. Independent control mode, downstream unsolicited
  C. Ordered control mode, downstream on demand
  D. Ordered control mode, downstream unsolicited
  C. Ordered control mode, downstream on demand

• Question 77:

  What are the default settings for RSVP-TE on the Alcatel-Lucent 7750 SR?

  A. Per-interface label space, liberal retention mode
  B. Per-platform label space; liberal retention mode
  C. Per-interface label space, conservative retention mode
  D. Per-platform label space, conservative retention mode
  D. Per-platform label space, conservative retention mode

• Question 78:

  Click on the exhibit.



  An LDP-over-RSVP tunnel is established between PE-1 and PE-2. Which of the following is NOT required to protect the LDP-over-RSVP tunnel?

  A. PE-1 requires T-LDP sessions to both ABR-1 and ABR-2.
  B. PE-1 requires a full mesh of RSVP-TE LSPs to all routers in area 1.
  C. ABR-1 requires T-LDP sessions to all ABRs in area 0.
  D. PE-1 requires fast reroute enabled on all RSVP-TE LSPs.
  B. PE-1 requires a full mesh of RSVP-TE LSPs to all routers in area 1.

• Question 79:

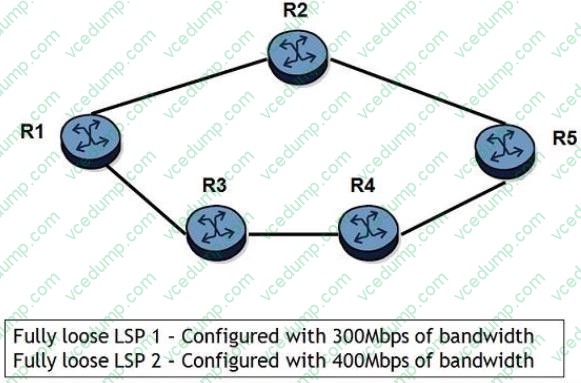

  Click on the exhibit.



  Initially, all links have 800Mbps of unreserved bandwidth. All links are of equal costs. Shared explicit reservation style is used. LSP 1 is signaled first with a setup and hold priority of 2. Then, LSP 2 is signaled with setup and hold priority of 5. Both LSPs go from R1 to R5. Which of the following is TRUE?

  A. LSP 1 will follow R1-R3-R4-R5. LSP 2 will follow R1-R2-R5.
  B. LSP1 will follow R1-R2-R5. LSP 2 will follow R1-R3-R4-R5.
  C. Both LSP 1 and LSP 2 will follow R1-R2-R5.
  D. Both LSP 1 and LSP 2 will follow R1-R3-R4-R5.
  C. Both LSP 1 and LSP 2 will follow R1-R2-R5.

• Question 80:

  Which of the following statements are true? Choose two answers

  A. Selected labels from the FIB are populated to the LIB.
  B. Selected labels from the LIB are populated to the LFIB.
  C. Selected routes from the RIB are populated to the FIB.
  D. Selected routes from the FIB are populated to the RIB.
  E. All labels from the LIB are populated to the LFIB.
  B. Selected labels from the LIB are populated to the LFIB.
  C. Selected routes from the RIB are populated to the FIB.
