Cisco 352-001 Online Practice Questions and Exam Preparation

Cisco 352-001 Online Questions & Answers

• Question 641:

  A Service Provider is designing a solution for a managed CE service to a number of local customers using a single CE platform and wants to have logical separation on the CE platform using Virtual Routing and Forwarding (VRF) based on IP address ranges or packet length. Which is the most scalable solution to provide this type of VRF Selection process on the CE edge device?

  A. Static Routes for Route Leaking
  B. Policy Based Routing
  C. Multi-Protocol BGP
  D. OSPF per VRF Instance
  B. Policy Based Routing

• Question 642:

  Which option is a benefit of using N-Port Virtualization?

  A. reduces the amount of domain IDs that are used in the fabric
  B. does not need to create zoning
  C. reduces latency when using local switching on Fibre Channel ports
  D. allows trunking to the upstream switch
  E. does not need to configure the upstream switches
  A. reduces the amount of domain IDs that are used in the fabric

• Question 643:

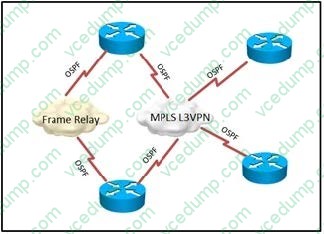

  Refer to the exhibit.



  An enterprise is migrating its single-area OSPF network from a Frame Relay WAN service to an MPLS L3VPN service. Frame Relay will remain in only a few sites that require increased resiliency via two different WAN connections.

  Which feature could be used in the MPLS VPN service provider network to support the design requirement by ensuring that during normal operation, intersite traffic will only use the MPLS VPN service and not the old Frame Relay service?

  A. virtual links
  B. sham links
  C. multiple stub areas
  D. super backbone
  B. sham links

• Question 644:

  To meet specific business requirements, QoS-marked traffic must be sent over a dedicated link. Which technology fulfills this requirement?

  A. MPLS
  B. Q-in-Q tunneling
  C. policy-based routing
  D. EIGRP with modified metrics
  C. policy-based routing

• Question 645:

  Which two options are characteristics of firewall transparent mode operations in a firewall solution design? (Choose two.)

  A. The firewall acts like a router hop in the network.
  B. OSPF adjacencies can be established through the firewall.
  C. Changes in the existing IP addressing and subnets are required.
  D. Multicast traffic can traverse the firewall.
  E. The firewall can participate actively on spanning tree.
  B. OSPF adjacencies can be established through the firewall.
  D. Multicast traffic can traverse the firewall.

• Question 646:

  What is a design consideration of policy-based routing?

  A. It should be implemented at both ends of a GRE tunnel.
  B. It can limit the network scalability.
  C. It can create microloops during network reconvergence.
  D. It decreases failure detection time.
  C. It can create microloops during network reconvergence.

• Question 647:

  When designing fast convergence on a network using loop-free alternate, on which two basis can the next-hop routes be precomputed? (Choose two)

  A. Per neighbor
  B. Per network type
  C. Per link
  D. Per prefix
  E. Per failure type
  C. Per link
  D. Per prefix

• Question 648:

  An enterprise network has two core routers that connect to 200 distribution routers and uses full-mesh iBGP peering between these routers as its routing method. The distribution routers are experiencing high CPU utilization due to the BGP

  process.

  Which design solution is the most effective?

  A. Increase the memory on the distribution routers
  B. Increase the memory on the core routers
  C. Implement route reflectors on the two core routers
  D. Increase bandwidth between the core routers
  E. Implement eBGP between the core and distribution routers
  C. Implement route reflectors on the two core routers

• Question 649:

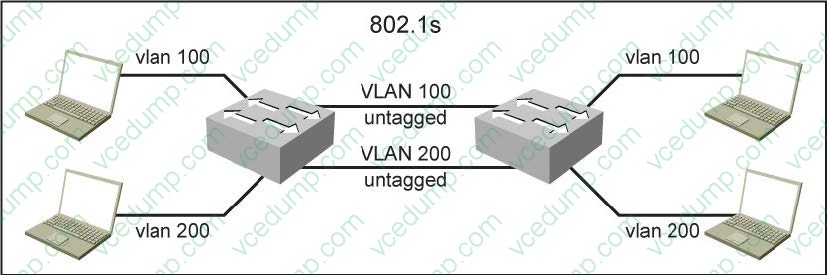

  Refer to the exhibit.



  You are designing a network using the Multiple Spanning Tree Protocol for loop avoidance.

  VLAN trunking is not allowed due to security requirements. Which option describes how you can design this Layer 2 network while using untagged interfaces between both switches?

  A. Assign VLAN 100 and VLAN 200 to the IST instance.
  B. Assign VLAN 100 and VLAN 200 to instance 1.
  C. Assign VLAN 100 to instance 1 and VLAN 200 to instance 2.
  D. Assign VLAN 100 to the IST instance and VLAN 200 to instance 1.
  C. Assign VLAN 100 to instance 1 and VLAN 200 to instance 2.

• Question 650:

  Which two control plane policer design options should you consider to achieve high availability? (Choose two)

  A. Control plane policers require that adequate protocols overhead are factored in to allow protocol convergence
  B. Control plane policers are really needed only on externally facing devices
  C. Control plane policers can cause the network management systems to create false alarms
  D. Control plane policers are enforced in hardware to protect the software path, but they are hardware platform-dependent in terms of classification ability
  E. Control plane policers must be processes before a forwarding decision is made
  D. Control plane policers are enforced in hardware to protect the software path, but they are hardware platform-dependent in terms of classification ability
  E. Control plane policers must be processes before a forwarding decision is made
