• Question 161:

  A service provider wants to offer a service that allows customers to span VLANs across multiple campuses.

  Which configuration will allow this service provider to achieve its desired result with a minimal impact on the scalability of PE routers?

  A. RFC 2547-based service, with L2TPv3 between PE and CE
  B. RFC 2547-based service, with MPLS/LDP between PE and CE (in other words, CsC)
  C. VPWS service, with 802.1Q between PE and CE
  D. VPWS service, with QinQ between PE and CE
  D. VPWS service, with QinQ between PE and CE

• Question 162:

  On a large-scale DMVPN network design, what are two DMVPN characteristics? (Choose two.)

  A. DMVPN can interoperate with other vendors' equipment.
  B. DMVPN supports multicast replication at the hub.
  C. DMVPN supports non-IP protocols.
  D. DMVPN supports dynamic partial- or full-mesh tunnels.
  B. DMVPN supports multicast replication at the hub.
  D. DMVPN supports dynamic partial- or full-mesh tunnels.

• Question 163:

  Which network management tool should a network manager consult in order to pinpoint the cause of a routing recursion error?

  A. debug (for BGP output)
  B. syslog (for BGP errors)
  C. RMON events group
  D. SNMP routing traps
  A. debug (for BGP output)

• Question 164:

  A company requests that you consult with them regarding the design of their production, development, and test environments. They indicate that the environments must communicate effectively, but they must be kept separate due to the inherent failures on the development network. What will be configured on the links between the networks to support their design requirements?

  A. IBGP
  B. EBGP
  C. OSPF
  D. static routes
  B. EBGP

• Question 165:

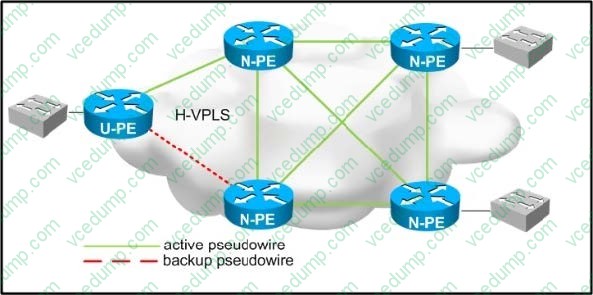

  Refer to the exhibit.



  You are designing a loop-free hierarchical VPLS service. Which two design considerations should be implemented for the pseudowires between the N-PE and U-PE routers? (Choose two.)

  A. Disable split horizon toward the N-PE routers.
  B. Disable split horizon toward the U-PE router.
  C. Enable split horizon toward the U-PE router.
  D. Enable split horizon toward the N-PE routers.
  E. Disable MAC learning on the U-PE route.
  F. Disable MAC learning on the N-PE routers.
  B. Disable split horizon toward the U-PE router.
  D. Enable split horizon toward the N-PE routers.

• Question 166:

  FIFO queuing is being used on all routers in a network. The primary application running on the network is data backup using FTP. At certain times, users experience cyclical performance degradation.

  What two things might mitigate this problem and help ensure bandwidth is used effectively in the network? (Choose two.)

  A. traffic shaping
  B. CB-WFQ
  C. traffic policing
  D. WRED
  E. MDRR
  B. CB-WFQ
  D. WRED

• Question 167:

  Which two resources are propagated by the headend router for constrained based path computation with MPLS Traffic Engineering? (Choose two.)

  A. average link utilization
  B. average input queue depth
  C. link bandwidth
  D. link affinity
  E. link delay
  F. link jitter
  C. link bandwidth
  D. link affinity

• Question 168:

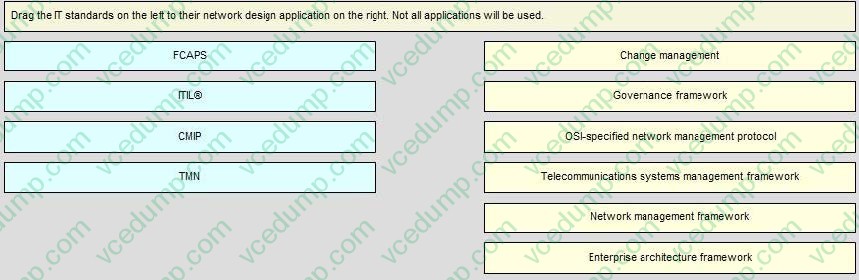

  DRAG DROP

  Select and Place:





• Question 169:

  You are designing an 802.11 wireless network to include a controller as a central configuration point and access points across several remote sites. Which two aspects will manage the flow of the traffic to meet these design considerations? (Choose two.)

  A. WLAN local switching with VLAN mapping requires that VLAN ID that is mapped on the AP to match a dynamic interface that is configured on the wireless LAN controller.
  B. Layer 3 roaming is not supported for locally switched WLANs.
  C. The 802.1x authentication for a client associated to an AP on a locally switched WLAN is always handled at the wireless LAN controller side.
  D. The access point can receive multicast traffic in the form of multicast packets from the WLC.
  E. WLAN access lists can be applied only to centrally switched WLANs.
  B. Layer 3 roaming is not supported for locally switched WLANs.
  E. WLAN access lists can be applied only to centrally switched WLANs.

• Question 170:

  A network administrator is in charge of multiple IPsec VPN headend devices that service thousands of remote connectivity, point-to-point, IPsec/GRE tunnels. During a recent power outage, in which it was found that a backup power supply in one of those headend devices was faulty, one of the headend routers suffered a complete shutdown event. When the router was successfully recovered, remote users found intermittent connectivity issues that went away after several hours. Network operations staff accessed the headend devices and found that the recently recovered unit was near 100% CPU for a long period of time. How would you redesign the network VPN headend devices to prevent this from happening again in the future?

  A. Move the tunnels more evenly across the headend devices.
  B. Implement Call Admission Control.
  C. Use the scheduler allocate command to curb CPU usage.
  D. Change the tunnels to DMVPN.
  B. Implement Call Admission Control.
