Cisco 352-001 Online Practice Questions and Exam Preparation

Cisco 352-001 Online Questions & Answers

• Question 171:

  You have been hired to redesign a network due to issues with congestion. How will a router function if the QoS mechanism of congestion avoidance is integrated into the existing network design?

  A. the router handles the overflow of traffic by using FIFO
  B. the router handles the possible buildup of congestion by using WRED
  C. the router forces inbound and outbound traffic to stay within a defined profile by using rate limiting
  D. the router separates packets based on certain characteristics by using NBAR
  E. the router marks packets based on certain characteristics by using PBR
  B. the router handles the possible buildup of congestion by using WRED

• Question 172:

  When developing an MVPN design, which performance and scalability consideration must be taken into account?

  A. CE end-to-end PIM adjacency establishment
  B. multicast data sent to all PE routers on the default MDT
  C. RP placement in the multicast VRF
  D. RP placement in the customer network
  B. multicast data sent to all PE routers on the default MDT

• Question 173:

  You are asked to design an RSVP-TEL LSP protection solution for a large service provider network .

  Which traffic protection mechanism is highly scalable and ensure that multiple LPS always terminate at the same merge point?

  A. Shared explicit protection.
  B. Detour LSPs.
  C. 1:N protection.
  D. 1:1 protection.
  C. 1:N protection.

• Question 174:

  Which IPv4 addressing and routing scheme can increase the availability of a network service during a DoS attack?

  A. unicast
  B. broadcast
  C. anycast
  D. multicast
  C. anycast

• Question 175:

  A company plans to include Nonstop Forwarding and Bidirectional Forwarding Detection as a part of their network redundancy plan. In which two ways do NSF and BFD work together when different hardware platforms are compared? (Choose two.)

  A. During supervisor engine or routing engine failover, the NSF feature will always ensure that the BFD at the peer router will not trigger a link down independent of the used hardware platform.
  B. At some hardware platforms, BFD and NSF are not supported together. During supervisor engine or routing engine failover, the BFD at the peer router will trigger a link down.
  C. To ensure that BFD at the peer router will not trigger a link down during NSF, the BFD packets must be processed fast enough, and, during supervisor engine or routing engine failover, by processing the BFD independent from the supervisor engine or routing engine.
  D. Because BFD is always processed at the line cards (not at the supervisor engine or routing engine), a supervisor engine or routing engine failover will not affect the BFD peer router.
  E. Because BFD is always processed at the supervisor engine or routing engine, a supervisor engine or routing engine failover will always trigger a link down at the peer router.
  B. At some hardware platforms, BFD and NSF are not supported together. During supervisor engine or routing engine failover, the BFD at the peer router will trigger a link down.
  C. To ensure that BFD at the peer router will not trigger a link down during NSF, the BFD packets must be processed fast enough, and, during supervisor engine or routing engine failover, by processing the BFD independent from the supervisor engine or routing engine.

• Question 176:

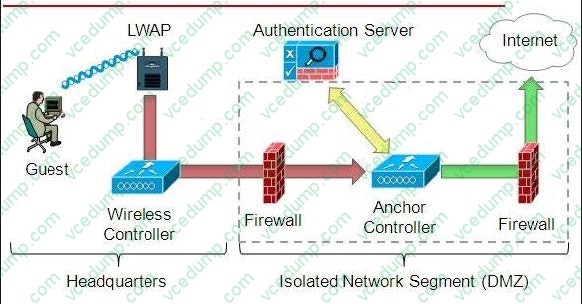

  Refer to the exhibit.



  Which solution must be used to send traffic from the foreign wireless LAN controller to the anchor wireless LAN controller?

  A. Encapsulate packets into an EoIP tunnel and send them to the anchor controller
  B. Send packets from the foreign controller to the anchor controller via Layer 3 MPLS VPN or VRF-Lite
  C. Send packets from the foreign controller to the anchor controller via IPinIP or IPsec tunnel
  D. Send packets without encapsulation to the anchor controller over the routed network
  A. Encapsulate packets into an EoIP tunnel and send them to the anchor controller

• Question 177:

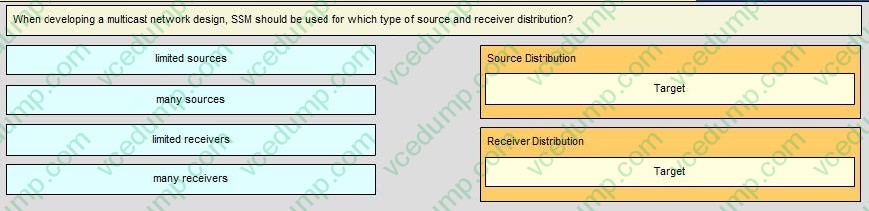

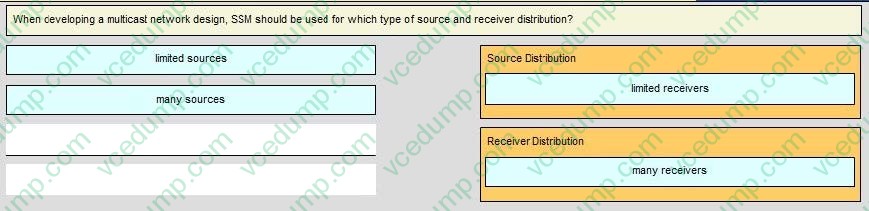

  DRAG DROP

  Select and Place:





• Question 178:

  Which OSPF design consideration, with regards to simplicity and address preservation, must be considered when connecting two Layer 3 switches directly using 10 GBASE-T cabling and formatting an OSPF neighbor adjacency?

  A. Mesh groups must be included in the design
  B. The OSPF Hello and Dead timers must be tuned to detect failures as quickly as possible
  C. The OSPF network type must be set to point-to-multipoint
  D. An OSPF neighbor adjacency formed over loopback interfaces must be placed in Area 0
  E. The OSPF network type must be set to point-to-point
  E. The OSPF network type must be set to point-to-point

• Question 179:

  When a router running EIGRP considers alternate paths, which ones will it consider loop- free?

  A. ones in which the reported distance is equal to the feasible distance
  B. ones in which the reported distance is less than the feasible distance
  C. ones in which the feasible distance is the same as the best possible route
  D. ones in which the reported distance is the same as the metric of the best possible path
  B. ones in which the reported distance is less than the feasible distance

• Question 180:

  You are asked to design an RSVP-TE LSP protection solution for a large service provider network. Which traffic protection mechanism is highly scalable and ensures that multiple LSPs always terminate at the same merge point?

  A. detour LSPs
  B. 1:1 protection
  C. 1:N protection
  D. shared-explicit reservation style
  C. 1:N protection
