Cisco Cisco Certifications 352-001 Questions & Answers

• Question 91:

  An operations engineer asks for your help with a new switching deployment. The engineer confirms that STP is enabled on an edge switch, and a particular port is connected to another switch. The switch is not receiving configuration BPDUs,

  although it appears that everything is functioning correctly in the network.

  What is the design explanation?

  A. Bridge Assurance is enabled on the port

  B. Storm control broadcast is enabled on the port

  C. REP is enabled on the port

  D. BPDU Guard is enabled on the port

  Correct Answer: C

• Question 92:

  You are designing a solution to connect a primary data center to a disaster recovery site, The hosted applications will be web and email servers that are provided through a virtualized environment. Which connectivity technology should you consider for this design?

  A. L2TPV3.

  B. VPWS.

  C. Point-To-Point GRE tunnels.

  D. VPLS.

  Correct Answer: A

• Question 93:

  A large enterprise network has a partial mesh network with multiples redundant links. OSPF is used as IGP and it is implemented in a single-area. The network has slow convergence times and there is a high CPU utilization on the routers. Which solution can address these issues while ensuring that the network scales?

  A. Break the routing domain into separate OSPF areas

  B. Make it a hub-and-spoke topology

  C. Replace OSPF with BGP

  D. Reduce the number of links between routers in the network

  E. Upgrade the routers with higher CPU and memory resources

  Correct Answer: A

• Question 94:

  Which two functions are performed at the distribution layer of the three-layer hierarchical network design model? (Choose two).

  A. Fault isolation

  B. QoS classification and marking boundary

  C. Fast transport

  D. Reliability

  E. Load balancing

  Correct Answer: AE

• Question 95:

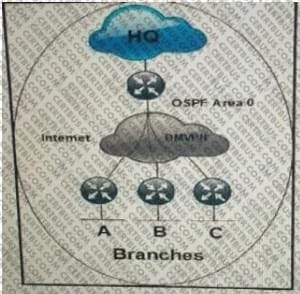

  Refer to the exhibit.



  Each branch network must connect to the HQ and other branch networks over the phase 2 DMVPN network using a single tunnel interface. OSPF is running over the DMVPN network. Which network type is compatible with the DMVPN tunnel and ensures that the next hop of any route is unchanged?

  A. Point-to-point

  B. Point-to-multipoint

  C. Broadcast

  D. Nonbroadcast

  Correct Answer: C

• Question 96:

  Which are two open-source SDN controllers? (Choose two)

  A. Big Cloud Fabric

  B. OpenContrail

  C. Application Policy Infrastructure Controller

  D. Virtual Application Networks SDN controller

  E. OpenDaylight

  Correct Answer: BE

• Question 97:

  An network is designed to use OSPF to reach eBGP peers.

  Which condition should be avoided in the design to potentially prevent the eBGP peers do not flap continuously in case of link failure?

  A. Disable BGP synchronization.

  B. Advertise IP addresses used on eBGP peer statement via a non-backbone OSPF area.

  C. Advertise via eBGP IP addresses used on eBGP peer statements.

  D. Use an ACL to block BGP in one direction.

  Correct Answer: C

• Question 98:

  A data center deign requires monitoring of their business critical voice and video services accessed by remote locations. Which two items are applicable? (Choose two)

  A. If multiple applications share the same DSCP or CoS values, NBAR can be utilized

  B. The applications being monitored must be assigned a unique CoS value

  C. If multiple applications share the same the same DSCP or CoS values, IPFIX can be utilized

  D. The applications being monitored must be assigned a unique QoS profile

  E. The applications being monitored must be assigned unique DSCP values

  F. The reporting data must be assigned to a QoS profile to ensure accurate statistics

  Correct Answer: CF

• Question 99:

  A retail company connects its 250 branches across the globe to the core using MPLS Layer 3 VPN. The company is planning to migrate its traditional telephony services to VoIp, in order to reduce the cost of international calls. What are the two primary concerns when implementing this migration? (Choose two)

  A. Jitter

  B. Call routing design

  C. SRST

  D. MTU

  E. Available bandwidth

  Correct Answer: AE

• Question 100:

  Which are two data plane hardening techniques? (Choose two)

  A. Infrastructure ACLs

  B. Control Plane Policing

  C. Redundant AAA servers

  D. Disable unused services

  E. Routing protocol authentication

  F. SNMPv3

  G. Warning banners

  Correct Answer: AB
