Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 121:

  A network engineer is having trouble overcoming a BGP rulE. "an EBGP neighbor address information is carried in the IBGP advertisement. This information does not change to the local ASBR address". Which BGP attribute can be modified to solve this network reachability issue in this type of scenario?

  A. AS path
  B. origin
  C. weight
  D. next-hop
  D. next-hop

• Question 122:

  Which of the following IOS commands can detect whether the SQL slammer virus propagates in your networks?

  A. access-list 110 permit any any udp eq 69 log
  B. access-list 100 permit any any udp eq 1434 log
  C. access-list 110 permit any any udp eq 69
  D. access-list 100 permit any any udp eq 1434
  B. access-list 100 permit any any udp eq 1434 log

• Question 123:

  In relation to MPLS Multicast VPN, which three statements about multicast distribution (MDT) groups are true? (Choose three)

  A. Default MDT groups are used for PIM control traffic, low-bandwidth sources, and flooding of sparse mode traffic.
  B. MDTs are built in customer networks
  C. Data MDT groups are used for high-bandwidth sources to reduce replication to uninterested PEs.
  D. MDTs are built in provider networks
  E. The number of MDTs depends on PIM modes of MDT groups.
  C. Data MDT groups are used for high-bandwidth sources to reduce replication to uninterested PEs.
  D. MDTs are built in provider networks
  E. The number of MDTs depends on PIM modes of MDT groups.

  ---

  Default-MDT Tree created by the MVPN configuration. The Default-MDT is used for customer Control Plane and low rate Data Plane traffic. It connects all of the PE routers with MVRFs in a particular MD and one will exist in every MD whether there is any active source in the respective customer network.

• Question 124:

  What does FRTP stand for?

  A. Frame Relay Top Pseudowire
  B. Frame Relay Traffic Pseudowire
  C. Frame Relay Traffic Protocol
  D. Frame Relay Traffic Policing
  D. Frame Relay Traffic Policing

  ---

  Frame Relay Traffic Policing provides a mechanism to rate-limit packets on switched PVCs using a "leakybucket" implementation. When enabled, Traffic Policing prevents traffic congestion by discarding or setting the Discard Eligible (DE) bit on packets that exceed specified traffic parameters. Traffic Policing parameters can be specified per DCE interface, or per switched PVC, using the 'map class' mechanisms.

• Question 125:

  Which three protocols use TLVs to carry attributes? (Choose three.)

  A. Cisco Discovery Protocol
  B. Label Discovery Protocol
  C. Border Gateway Protocol
  D. OSPF
  E. RIP version 2
  A. Cisco Discovery Protocol
  B. Label Discovery Protocol
  C. Border Gateway Protocol

• Question 126:

  Which three statements about the secure domain router are true? (Choose three.)

  A. The logical router can span across chassis.
  B. The fabric and system controller module are shared by all logical routers.
  C. Each logical router has a distinct fabric and system controller module
  D. The logical router can share a route processor
  E. The logical router cannot share a route processor.
  A. The logical router can span across chassis.
  B. The fabric and system controller module are shared by all logical routers.
  E. The logical router cannot share a route processor.

  ---

  1.4. SP high end product

  1.4.04. Secure domain router (SDR)

• Question 127:

  In the context of GMPLS, LMP stands for:

  A. Load Management Protocol
  B. Label Management Protocol
  C. Loop Management Protocol
  D. Link Management Protocol
  D. Link Management Protocol

  ---

  The Generalized Multi-Protocol Label Switching (GMPLS)[1] is a protocol suite extending MPLS to manage further classes of interfaces and switching technologies other than packet interfaces and switching, such as time division multiplex,

  layer-2 switch, wavelength switch and fiber-switch.

  GMPLS is composed of three main protocols:

  Resource Reservation Protocol with Traffic Engineering extensions (RSVP-TE) signaling protocol.[5][6]Open Shortest Path First with Traffic Engineering extensions (OSPF-TE) routing protocol.[7][8] Link Management Protocol (LMP).[9]

• Question 128:

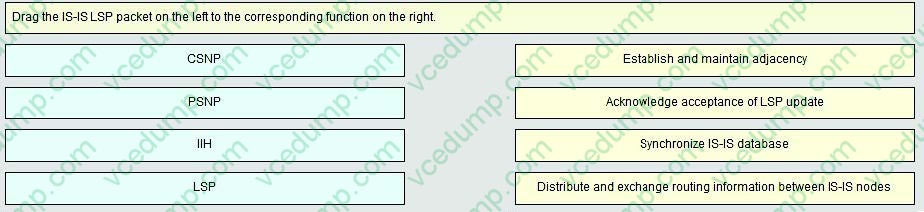

  Drag the IS-IS LSP packet on the left to the corresponding function on the right.

  Select and Place:





• Question 129:

  In PPPoA architecture, which two methods are most commonly deployed? (Choose two)

  A. Terminating PPP sessions at the service provider
  B. PPP framing
  C. PPP multiplexing
  D. GRE tunneling
  E. L2TP tunneling
  A. Terminating PPP sessions at the service provider
  E. L2TP tunneling

  ---

  Reference: http://www.cisco.com/en/US/tech/tk175/tk819/technologies_white_paper09186a0080093bd2.sht ml In PPPoA architectures, the service destination can be reached in different ways. Some of the most commonly deployed methods are: Terminating PPP sessions at the service provider L2TP Tunneling Using SSG

• Question 130:

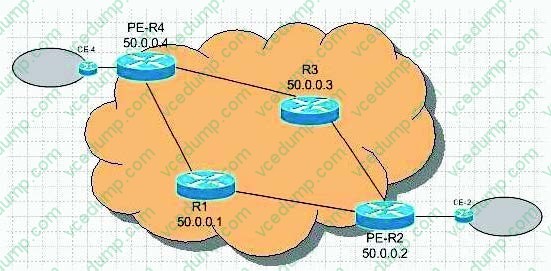

  What is the proper MP-BGP configuration between the shown PE routers to implement MPLS VPNs on PER2?



  A. None of the above
  B. router bgp 1 neighbor 50.0.0.4 remote-as 1 neighbor 50.0.0.4 update-source Loopback0 no auto-summary ! address-family ipv4 neighbor 50.0.0.4 activate neighbor 50.0.0.4 send-community extended exit-address-family
  C. router bgp 1 neighbor 50.0.0.4 remote-as 1 neighbor 50.0.0.4 update-source Loopback0 no auto-summary ! address-family vpnv4 neighbor 50.0.0.4 activate neighbor 50.0.0.4 send-community extended exit-address-family
  D. router bgp 1 neighbor 50.0.0.4 remote-as 1 neighbor 50.0.0.4 update-source Loopback0 no auto-summary ! address-family vpnv4 unicast multicast neighbor 50.0.0.4 activate neighbor 50.0.0.4 send-community extended exit-address-family
  C. router bgp 1 neighbor 50.0.0.4 remote-as 1 neighbor 50.0.0.4 update-source Loopback0 no auto-summary ! address-family vpnv4 neighbor 50.0.0.4 activate neighbor 50.0.0.4 send-community extended exit-address-family
