Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 1:

  Forwarding Equivalence Class (FEC) corresponds to which four of these? (Choose four).

  A. Layer 2 circuits (ATM, FR, PPP, HDLC, Ethernet
  B. Groups of addresses/sites-VPN
  C. IPSEC Encryption Algorithm
  D. A bridge/switch instance-VSI
  E. Tunnel interface-traffic engineering
  A. Layer 2 circuits (ATM, FR, PPP, HDLC, Ethernet
  B. Groups of addresses/sites-VPN
  D. A bridge/switch instance-VSI
  E. Tunnel interface-traffic engineering

• Question 2:

  Which statement about L2VPN Pseudowire Switching is not true?

  A. L2VPN Pseudowire Switching allows the user to extend L2VPN Pseudowires across an inter- AS boundary
  B. L2VPN Pseudowire Switching allows the user to extend L2VPN Pseudowires across two separate MPLS networks.
  C. Quality of service is not supported per Pseudowire
  D. L2VPN Pseudowire Switching connects two or more contiguous Pseudowires segments to from an end-toend multihop Pseudowire
  E. The Cisco MPLS Traffic Engineering tunnel selection is not supported
  E. The Cisco MPLS Traffic Engineering tunnel selection is not supported

  ---

  ReferencE. http://www.cisco.com/en/US/docs/ios/12_0s/feature/guide/fsstitch.html#wp1053770

• Question 3:

  A network engineer wants to deploy a VPLS service within the MPLS backbone. The backbone expert team advises that LDP for signaling is used.

  Which two characteristics of LDP would influence their decision? (Choose two.)

  A. BGP does not need to be run on the PE device.
  B. Non-convergence with IP VPN operation.
  C. There is no autodiscovery.
  D. LDP signaling requires a loopback-based router ID.
  E. CDP is not required on the PE routers.
  A. BGP does not need to be run on the PE device.
  C. There is no autodiscovery.

• Question 4:

  Select 3 AVPs (Attribute-Value Pair) which MUST be present in the ICRQ:

  A. Called Number
  B. Call Serial Number
  C. Message Type
  D. Calling Number
  E. Assigned Session ID
  B. Call Serial Number
  C. Message Type
  E. Assigned Session ID

• Question 5:

  Which Cisco IOS command displays the export VPN route target value of a VRF?

  A. show ip vrf all
  B. show ip vrf route-targets all
  C. show ip vrf summary
  D. show ip vrf interfaces
  E. show ip vrf detail
  F. show ip vrf
  E. show ip vrf detail

  ---

  The show ip vrf [{detail | interfaces}] vrf-name command shows detailed configurations about the VRF. Pesaro# show ip vrf detail Customer_A VRF Customer_A; default RD 100:101 Interfaces: Loopback101 Loopback111 Connected addresses are not in global routing table Export VPN route-target communities RT:100:1001 Import VPN route-target communities RT:100:1001 No import route-map No export route-map Pesaro# show ip vrf interfaces Interface IP-Address VRF Protocol Loopback101 200.0.6.1 Customer_A up Loopback111 200.1.6.1 Customer_A up Loopback102 200.0.6.1 Customer_B up

• Question 6:

  What are BCP 38 (Best Common Practices 38) / RFC 2827 Ingress Packet Filtering Principles? (Choose three.)

  A. Filter Smurf ICMP packets.
  B. Filter as close to the core as possible
  C. Filter as close to the edge as possible
  D. Filter as precisely as possible
  E. Filter both source and destination where possible.
  C. Filter as close to the edge as possible
  D. Filter as precisely as possible
  E. Filter both source and destination where possible.

• Question 7:

  An engineer is looking into a solution for two customers that are using the network prefix 10.10.1.0/24. The network engineer wants the network prefix to remain the same for both customers, while maintaining unique network information for each. Which approach can be used to achieve this requirement?

  A. Assign a unique RD per customer.
  B. Assign a unique RT per customer.
  C. Assign a unique SOO per customer.
  D. Assign a unique TE per customer.
  A. Assign a unique RD per customer.

• Question 8:

  What is the recommended codepoint as per the RFC 2598 "An Expedited Forwarding PHB" for a packet to receive expedited forwarding PHB?

  A. 101111
  B. 101110
  C. 111111
  D. 110111
  E. 101101
  F. 110110
  B. 101110

• Question 9:

  Which statement about Software Maintenance Upgrade is true?

  A. CRS-1 SMU can be applied to a different platform, and vice versa.
  B. SMU is an executable code for running a process or libraries that are shared between the different processes.
  C. SMUs for each release are individually downloadable from Cisco.com and come in the form of a tar ball.
  D. SMUs provide software fixes for critical network down and qualification blocking issues. Therefore, every software defect has a corresponding SMU.
  E. SMUs are release-specific. If an issue affects multiple platforms or releases, an SMU is built separately for each release and each platform.
  E. SMUs are release-specific. If an issue affects multiple platforms or releases, an SMU is built separately for each release and each platform.

  ---

  1.4. SP high end product SMUs for each release are individually downloadable from Cisco.com, whereas the bootable files and optional PIEs come in the form of a tarball. SMUs are release specific. If an issue affects multiple platforms or releases, an SMU will be separately built for each release and each platform depending on the mission- critical need. A CRS-1 SMU cannot be applied to a different platform, and vice versa. SMUs provide software fixes for critical network-down and qualification-blocking issues. Therefore, every software defect will not have a corresponding SMU.

• Question 10:

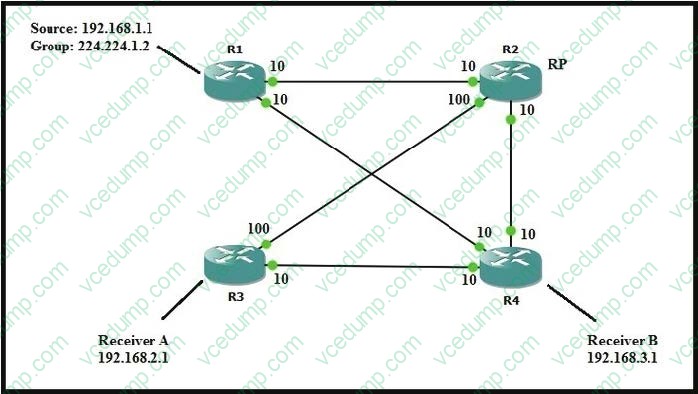

  Refer to the exhibit.



  There are receivers that are registered at the RP. If the source begins sending multicast traffic toward R1, how will R1 handle that traffic?

  A. R1 forwards the multicast packets on the (S, G) tree toward the RP.
  B. R1 encapsulates the multicast packets into a PIM register multicast packet.
  C. R1 encapsulates the multicast packets into a PIM join unicast packet.
  D. R1 tunnels the multicast packets in PIM register messages toward the RP.
  D. R1 tunnels the multicast packets in PIM register messages toward the RP.
