Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 141:

  A network engineer is tasked with supporting traffic discrimination over MPLS traffic engineering tunnels. To allocate restricted bandwidth to a certain type of traffic with no QoS degradation, which technique must be used?

  A. integrated services
  B. MPLS TE Diff-Serv full allocation model
  C. MPLS TE Diff-Serv Russian doll model
  D. IP precedence
  E. class of service
  C. MPLS TE Diff-Serv Russian doll model

• Question 142:

  When you design QoS on CE for an MPLS Layer 2 VPN, which three things should be considered? (Choose three.)

  A. Layer 2 access link QoS design
  B. enterprise-to-service-provider mapping models
  C. Layer 3 link access QoS design
  D. service provider service level agreements
  E. Layer 2 link access load balancing
  A. Layer 2 access link QoS design
  B. enterprise-to-service-provider mapping models
  D. service provider service level agreements

• Question 143:

  What is the maximum capacity of a single Cisco CRS-1?

  A. 64 Tb/s
  B. 78 Tb/s
  C. 92 Tb/s
  D. 106 Tb/s
  E. 128 Tb/s
  C. 92 Tb/s

• Question 144:

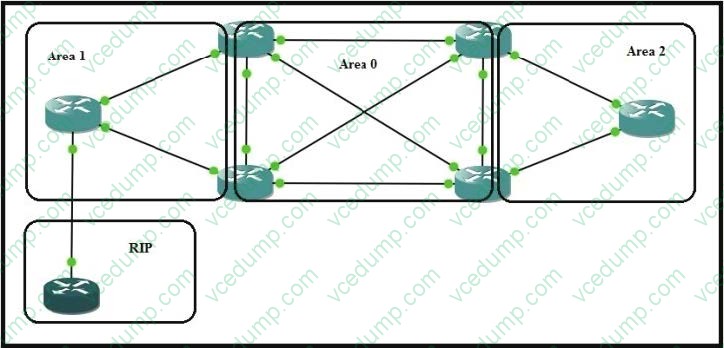

  Refer to the exhibit.



  RIP network 192.168.1.0/24 is redistributed in OSPF Area 1; both Area 1 and Area 2 are configured as NSSAs.

  Which three statements describe the OSPF behavior in this scenario? (Choose three.)

  A. Area 2 does not see the network 192.168.1.0/24 in its link-state database.
  B. Network 192.168.1.0/24 is advertised in a Type 7 LSA in Area 1.
  C. Network 192.168.1.0/24 is advertised in a Type 5 LSA in Area 0.
  D. Network 192.168.1.0/24 is advertised in a Type 7 LSA in Area 0.
  E. ABR between Area 0 and Area 2 converts network 192.168.1.0/24 to a Type 7 LSA.
  F. Network 192.168.1.0/24 is advertised in a Type 5 LSA in Area 2.
  A. Area 2 does not see the network 192.168.1.0/24 in its link-state database.
  B. Network 192.168.1.0/24 is advertised in a Type 7 LSA in Area 1.
  C. Network 192.168.1.0/24 is advertised in a Type 5 LSA in Area 0.

• Question 145:

  In an OSPF domain, four routers are running the OSPF protocol over a LAN switch in a broadcast domain. What is the expected output of executing the show ip OSPF neighbor command on the router that is neither a DR nor a BDR?

  A. one FULL state, two 2WAY states
  B. two FULL states, one 2WAY state
  C. three FULL states
  D. three 2WAY states
  B. two FULL states, one 2WAY state

• Question 146:

  Which statement about provider-independent and provider-assigned address blocks is true?

  A. There is no difference.
  B. PI space is not globally routable and can be used as private addressing.
  C. PA space is globally routable and can be obtained from IANA by all organizations.
  D. PA space is assigned by the ISP and PI space is assigned by the regional registry. Both are globally routable.
  E. PI and PA blocks are both assigned by the regional registry to all organizations.
  D. PA space is assigned by the ISP and PI space is assigned by the regional registry. Both are globally routable.

• Question 147:

  Which three attribute-value pairs (AVPs) must be present in L2TPv3 ICRQ messages? (Choose three.)

  A. PW capabilities list
  B. Message type
  C. Assigned control connection ID
  D. PW type
  E. Remote session ID
  F. Hostname
  B. Message type
  D. PW type
  E. Remote session ID

  ---

  The ICRQ can include information such as pseudowire type, required Layer 2specific sublayer, and circuit status. The following AVPs MUST be present in the ICRQ: Message Type Local Session ID Remote Session ID Serial Number Pseudowire Type Remote End ID Circuit Status Services

• Question 148:

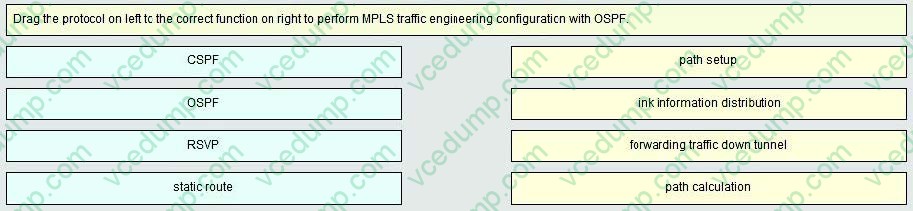

  Drag the protocol on left to the correct function on right to perform MPLS traffic engineering configuration with OSPF.

  Select and Place:





• Question 149:

  What is the statistical reserve?

  A. Bandwidth that is reserved for SVCs to route over a trunk
  B. Bandwidth that is reserved on a trunk so that ABR connections can burst
  C. Bandwidth on a trunk that is reserved for control traffic and cannot be used by connections
  D. Bandwidth that cannot be allocated to connections but can be used to accommodate statistical variations in the traffic
  D. Bandwidth that cannot be allocated to connections but can be used to accommodate statistical variations in the traffic

• Question 150:

  In Ethernet Aggregation applications, which option is needed when the U-PE connects to an N- PE and broadband remote access server?

  A. Ethernet Multipoint Service
  B. E1
  C. VPLS
  D. DSLAM
  E. wire emulation
  D. DSLAM
