Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 111:

  Which option is the ATM Cell Relay feature that enhances throughtput and uses bandwidth more efficiently?

  A. EXP marking match QoS LLD PHB
  B. preferred-interface
  C. cell packing
  D. MPLS experimental bit
  E. RSVP bandwidth reservation
  C. cell packing

• Question 112:

  Which two options describe how 6RD compares to automatic 6to4 tunneling? (Choose two.)

  A. 6RD provides a controlled exit point from the IPv6 Internet.
  B. 6RD provides a controlled entry point to the IPv6 Internet.
  C. 6RD is widely available in current OS implementations.
  D. Automatic 6to4 tunneling is widely available in current OS implementations.
  E. Automatic 6to4 tunneling and 6RD use a well-known IPv6 prefix.
  B. 6RD provides a controlled entry point to the IPv6 Internet.
  D. Automatic 6to4 tunneling is widely available in current OS implementations.

• Question 113:

  Which of the following comparison of Control Plane Policing (CoPP) with Receive ACL (RACL) is correct? (Choose two.)

  A. CoPP protects against IP spoofing, RACL protects against DoS attacks.
  B. CoPP can not use named access lists, RACL can use named access lists.
  C. CoPP applies to a dedicated control plane interface, RACL applies to all interfaces.
  D. CoPP needs a AAA server, RACL does not need a AAA server.
  E. CoPP supports rate limits, RACL does not support rate limits.
  C. CoPP applies to a dedicated control plane interface, RACL applies to all interfaces.
  E. CoPP supports rate limits, RACL does not support rate limits.

• Question 114:

  Which feature provides rapid failure detection times between the forwarding engines, while maintaining low overhead?

  A. Resource Reservation protocol
  B. Precision Time protocol
  C. bidirectional forwarding detection
  D. MPLS traffic engineering
  E. fast hello
  F. nonstop forwarding
  C. bidirectional forwarding detection

• Question 115:

  Which two statements about spanning tree path cost are true? (Choose two.)

  A. The path cost can be changed for an interface using the spanning-tree cost command.
  B. The path cost can be changed for an interface using the stp path-cost command.
  C. The STP default path cost depends on the interface speed.
  D. The STP default path cost is similar for all interface.
  A. The path cost can be changed for an interface using the spanning-tree cost command.
  C. The STP default path cost depends on the interface speed.

• Question 116:

  A service provider with MPLS traffic-eng tunnels is supporting multicast traffic that uses RPF to ensure the source of the sender. The unicast routing table points the source through TE, which does not support multicast and RPF fails.

  Which action fixes the issue?

  A. Use auto-route announce under MPLS TE.
  B. Use multicast-intact under IGP.
  C. Use IGMP snooping.
  D. Use CGMP.
  B. Use multicast-intact under IGP.

• Question 117:

  In which two ways does the BGP graceful capability preserve prefix information during a restart? (Choose two)

  A. The peer router immediately removes the BGP routers that it learned from the restarting router from its BGP routing tables.
  B. The router establishes BGP sessions with other routers and relearns the BGP routes from others that are also capable of graceful restart. The restarting router waits to receive updates from the neighboring routers.
  C. The peer router sends an end-of-RIB message to the restarting router.
  D. The restarting router removes any stale prefixes after the timer for stale entries expires.
  E. The restarting router does not remove any stale prefixes after the timer for stale entries expires.
  B. The router establishes BGP sessions with other routers and relearns the BGP routes from others that are also capable of graceful restart. The restarting router waits to receive updates from the neighboring routers.
  D. The restarting router removes any stale prefixes after the timer for stale entries expires.

  ---

  BGP Graceful Restart for NSF When an NSF-capable router begins a BGP session with a BGP peer, it sends an OPEN message to the peer. Included in the message is a declaration that the NSF-capable or NSF-aware router has graceful restart capability. Graceful restart is the mechanism by which BGP routing peers avoid a routing flap following a switchover. If the BGP peer has received this capability, it is aware that the device sending the message is NSF- capable. Both the NSF-capable router and

  its BGP peer(s) (NSF-aware peers) need to exchange the graceful restart capability in their OPEN messages, at the time of session establishment. If both the peers do not exchange the graceful restart capability, the session will not be

  graceful restart capable.

  If the BGP session is lost during the RP switchover, the NSF-aware BGP peer marks all the routes associated with the NSF-capable router as stale; however, it continues to use these routes to make forwarding decisions for a set period of

  time. This functionality means that no packets are lost while the newly active RP is waiting for convergence of the routing information with the BGP peers.

  After an RP switchover occurs, the NSF-capable router reestablishes the session with the BGP peer. In establishing the new session, it sends a new graceful restart message that identifies the NSF-capable router as having restarted.

  At this point, the routing information is exchanged between the two BGP peers. Once this exchange is complete, the NSF-capable device uses the routing information to update the RIB and the FIB with the new forwarding information. The

  NSF-aware device uses the network information to remove stale routes from its BGP table. Following that, the BGP protocol is fully converged.

  If a BGP peer does not support the graceful restart capability, it will ignore the graceful restart capability in an OPEN message but will establish a BGP session with the NSF-capable device. This functionality will allow interoperability with non-

  NSF-aware BGP peers (and without NSF functionality), but the BGP session with non-NSF-aware BGP peers will not be graceful restart capable.

• Question 118:

  Which SONET protocol layer is in charge of clock synchronization and timing issues?

  A. Photonic
  B. Section
  C. Path
  D. Line
  B. Section

• Question 119:

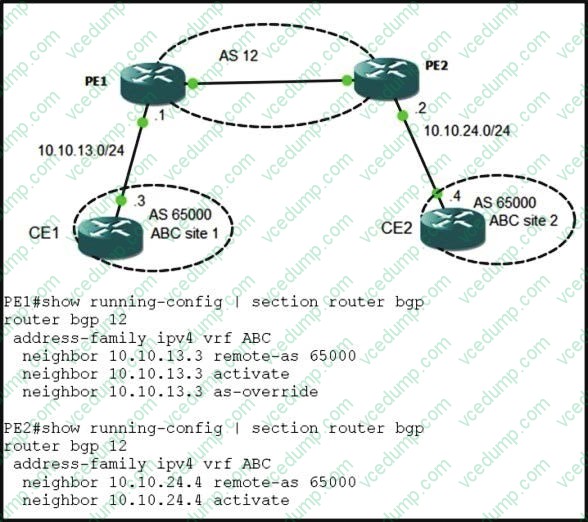

  Refer to the exhibit.



  An MPLS VPN service has been provisioned for an ABC customer. Based on the output from the VRF BGP configuration of PE1 and PE2, which statement describes the route exchange between ABC site 1 and site 2?

  A. Only CE1 will be able to install CE2 BGP updates in its BGP table.
  B. Only CE2 will be able to install CE1 BGP updates in its BGP table.
  C. CE1 can install the CE2 subnets in its BGP table and CE2 can install the CE1 subnets its BGP table.
  D. CE1 cannot install the CE2 subnets in its BGP table and CE2 cannot install the CE1 subnets its BGP table.
  E. "as-override" feature cannot be used in this scenario.
  A. Only CE1 will be able to install CE2 BGP updates in its BGP table.

• Question 120:

  Which three configuration options are available for configuring the l2tp-class command in L2TPv3? (Choose three)

  A. TCP port
  B. authentication
  C. IP DF bit
  D. retransmit retries
  E. sequencing
  F. hostname
  B. authentication
  D. retransmit retries
  F. hostname

  ---

  On Cisco 7200, l2tp-class options available are; R1(config-l2tp-class)#? l2tp-class configuration commands: accounting Method list to use for tunnel accounting authentication Authenticate the L2TP control connection cookie Local cookie options default Set a command to its defaults digest Message Digest Authentication for the L2TP control connection exit Exit from l2tp-class configuration mode hello Set HELLO message interval hidden Hide AVPs in outgoing control messages hostname Local hostname for control connection authentication no Negate a command or set its defaults password Password for control connection authentication, AVP hiding receive-window Receive window size for the control connection retransmit Control message retransmission parameters timeout Control connection timeout parameters R1(config-l2tp-class)#retransmit ? initial SCCRQ message retries/timeout settings retries Number of retries before tearing down a control connection timeout Control packet retransmission timeout parameters R1#sh run | be l2tp-class l2tp-class test authentication hostname TESTNODE retransmit retries 5
