Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 101:

  Which four statements about the Carrier Supporting Carrier (CSC) feature are true? (Choose four.)

  A. MPLS is required between the PE and CE routers that connect the backbone carrier to the customer carrier.
  B. The backbone carrier must enable the PE router to check that the packets it receives from the CE router contain only the labels that the PE router advertised to the CE router.
  C. Every packet that crosses the backbone carrier must be encapsulated so that the packet includes MPLS labels
  D. AII PE routers that link the backbone carrier to the customer carrier must run Route Target Rewrite.
  E. A routing protocol is required between the PE and CE routers that connect the backbone carrier to the customer carrier. The routing protocol enables the customer carrier to exchange IGP routing information with the backbone carrier.
  A. MPLS is required between the PE and CE routers that connect the backbone carrier to the customer carrier.
  B. The backbone carrier must enable the PE router to check that the packets it receives from the CE router contain only the labels that the PE router advertised to the CE router.
  C. Every packet that crosses the backbone carrier must be encapsulated so that the packet includes MPLS labels
  E. A routing protocol is required between the PE and CE routers that connect the backbone carrier to the customer carrier. The routing protocol enables the customer carrier to exchange IGP routing information with the backbone carrier.

• Question 102:

  Which two statements about MPLS point-to-multipoint traffic engineering (P2MP TE) are true? (Choose two)

  A. P2MP TE uses an OSPF extension that is different from the OSPF extension that is used in P2P TE.
  B. Loose path is not supported in P2MP TE.
  C. Multiple IP multicast groups can map to one P2MP tunnel.
  D. Affinity is not supported in P2MP TE.
  E. P2MP TE uses Constrained Shortest Path First (CSPF) to calculate paths.
  C. Multiple IP multicast groups can map to one P2MP tunnel.
  E. P2MP TE uses Constrained Shortest Path First (CSPF) to calculate paths.

• Question 103:

  In the Cisco Resilient Ethernet Protocol (REP), how many ports are always blocking?

  A. zero
  B. at least one
  C. at least two
  D. at least four
  E. at least three
  B. at least one

  ---

  http://www.cisco.com/en/US/prod/collateral/switches/ps6568/ps6580/prod_white_paper0900aec d8 06ec6fa.pdf Cisco REP Operation With REP at least one port is always blocked in any given segment, that is, the alternate port.

• Question 104:

  Which two statements about NTP version 4 are true? (Choose two)

  A. It supports fast synchronization at starting and before network failures.
  B. It supports automatic server discovery.
  C. It uses a fixed-point arithmetic
  D. It supports the "nanokernel" kernel implementation.
  E. It does not support Public-Key Cryptography
  B. It supports automatic server discovery.
  D. It supports the "nanokernel" kernel implementation.

  ---

  Section: IandOandT Managed Services Traversing the Core

  4.1.9. What's new in Version 4?

  According to the NTP Version 4 Release Notes found in release.htm, the new features of version four (as compared to version three) are.

  Use of floating-point arithmetic instead of fixed-point arithmetic. Redesigned clock discipline algorithm that improves accuracy, handling of network jitter, and polling intervals.

  Support for the nanokernel kernel implementation that provides nanosecond precision as well as improved algorithms.

  Public-Key cryptography known as autokey that avoids having common secret keys.

  Automatic server discovery (manycast mode)

  Fast synchronization at startup and after network failures (burst mode) New and revised drivers for reference clocks Support for new platforms and operating systems

• Question 105:

  Which protocol is used to establish LSP tunnels, enabling resource allocation such as bandwidth along the path?

  A. LDP
  B. RSVP
  C. TDP
  D. IPsec
  B. RSVP

• Question 106:

  What does RPL stand for?

  A. routing primary language
  B. routing policy language
  C. routing police language
  D. routing program language
  E. routing protocol language
  B. routing policy language

  ---

  1.5. IGP routing

  1.5.40. IOS-XR routing policy language (RPL)

• Question 107:

  Which statement about SNMP is true?

  A. SNMP version 2 uses a proxy agent to forward GetNext message to SNMP version 3.
  B. SNMP version 2 supports message integrity to ensure that a packet has not been tampered with in transit.
  C. Proxy agents were used only in SNMP version 1.
  D. SNMP version 3 supports encryption and SNMP version 2 support authentication.
  E. GetBulk messages are converted to GetNext messages by the proxy agent and are then forwarded to the SNMP version 1 agent.
  E. GetBulk messages are converted to GetNext messages by the proxy agent and are then forwarded to the SNMP version 1 agent.

  ---

  Proxy agents:

  A SNMPv2 agent can act as a proxy agent on behalf of SNMPv1 managed devices, as follows:

  A SNMPv2 NMS issues a command intended for a SNMPv1 agent. The NMS sends the SNMP message to the SNMPv2 proxy agent. The proxy agent forwards Get, GetNext, and Set messages to the SNMPv1 agent unchanged. GetBulk

  messages are converted by the proxy agent to GetNext messages and then are forwarded to the SNMPv1 agent.

  The proxy agent maps SNMPv1 trap messages to SNMPv2 trap messages and then forwards them to the NMS.

  SNMPv3 provides important security features:[11]

  Confidentiality - Encryption of packets to prevent snooping by an unauthorized source. Integrity - Message integrity to ensure that a packet has not been tampered while in transit including an optional packet replay protection mechanism.

  Authentication - to verify that the message is from a valid source.

• Question 108:

  Which two routing protocols support MPLS traffic engineering link information distribution? (Choose two)

  A. OSPF
  B. BGP
  C. RIP version 2
  D. IS-IS
  E. EIGRP
  A. OSPF
  D. IS-IS

• Question 109:

  During the modem boot process, how does the modem acquire the downstream channel?

  A. The modem is commanded by the CMTS to set to the specific channel.
  B. The modem uses the default value in the broadcom chipset.
  C. The modem tuner sets a level as defined by the DOCSIS specification.
  D. The modem tuner scans the downstream spectrum until digital QAM modulated signal is encountered
  D. The modem tuner scans the downstream spectrum until digital QAM modulated signal is encountered

• Question 110:

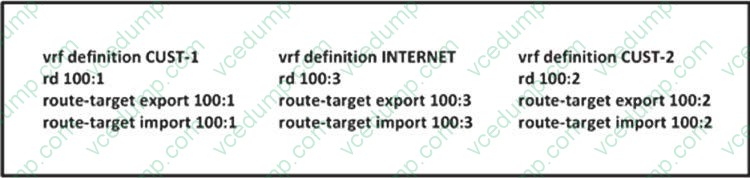

  Refer to the exhibit.



  An ISP network runs L3VPN MPLS over the IP core to deliver internet service for the customer as a central service through a dedicated VRF.

  Which route target plan delivers the internet service to customers while preserving customer VRF privacy?

  A. vrf definition CUST-1 route-target export 100:2 route-target import 100:2 ! vrf definition CUST-2 route-target export 100:1 route-target import 100:1 ! vrf definition INTERNET route-target export 100:1 route-target import 100:2
  B. vrf definition CUST-1 route-target export 100:3 route-target import 100:3 ! vrf definition CUST-2 route-target export 100:3 route-target import 100:3 ! vrf definition INTERNET route-target export 100:1 route-target import 100:2
  C. vrf definition CUST-1 route-target export 100:3 ! vrf definition CUST-2 route-target export 100:3 ! vrf definition INTERNET route-target import 100:1 route-target import 100:2
  D. vrf definition CUST-1 route-target import 100:3 ! vrf definition CUST-2 route-target import 100:3 ! vrf definition INTERNET route-target import 100:1 route-target import 100:2
  D. vrf definition CUST-1 route-target import 100:3 ! vrf definition CUST-2 route-target import 100:3 ! vrf definition INTERNET route-target import 100:1 route-target import 100:2
