Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 491:

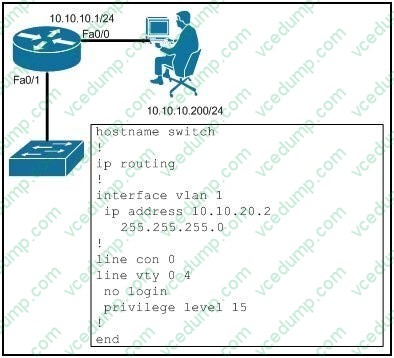

  Refer to the exhibit. A user with IP address 10.10.10.200 fails to telnet to a switch with IP address 10.10.20.2.

  What is the cause of the issue?



  A. The switch is not configured with a default gateway.
  B. The HTTP server is not enabled on the switch.
  C. STP is blocking the connection from switch to router.
  D. IP routing is enabled on the switch, but no route pointing back to the client is configured.
  E. The switch is configured with an IP address from the wrong subnet.
  D. IP routing is enabled on the switch, but no route pointing back to the client is configured.

• Question 492:

  Which three message types are valid PIMv2 message types? (Choose three.)

  A. Register
  B. Register-Stop
  C. Join/Prune
  D. Reject
  E. Register-Prune
  F. Register-Join
  A. Register
  B. Register-Stop
  C. Join/Prune

• Question 493:

  Refer to the exhibit. What would be the security risk when you are using the above configuration?



  A. The locally configured users would override the TACACS+ security policy.
  B. It would be impossible to log in to the router if the TACACS+ server is down.
  C. The default login policy would override the TACACS+ configuration.
  D. If the TACACS+ server failed, no authentication would be required.
  D. If the TACACS+ server failed, no authentication would be required.

• Question 494:

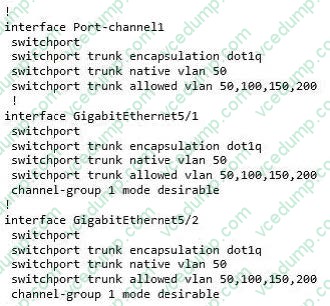

  Refer to the exhibit. You are setting up a 2-gigabit EtherChannel. Following IEEE standards, the exhibit shows your configuration in a local switchl. However, EtherChannel is not coming up. Which one of these statements could be a possible reason?



  A. EtherChannel is only available in Cisco equipment.
  B. The customer side is supposed to be running PAgP, which is a Cisco standard.
  C. PAgP is not an IEEE standard. VRRP should be used.
  D. The configuration on switch1 needs to be modified to use LACP.
  D. The configuration on switch1 needs to be modified to use LACP.

• Question 495:

  Which configuration would make an IP SLA probe use a precedence value of 5?

  A. ip sla 1 icmp-echo 1.1.1.1 tos 160
  B. ip sla 1 icmp-echo 1.1.1.1 tos 20
  C. ip sla 1 icmp-echo 1.1.1.1 precedence 5
  D. ip sla 1 icmp-echo 1.1.1.1 dscp 20
  A. ip sla 1 icmp-echo 1.1.1.1 tos 160

• Question 496:

  Which three options are used in the spanning-tree decision process? (Choose three.)

  A. lowest root bridge ID
  B. lowest path cost to root bridge
  C. lowest sender bridge ID
  D. highest port ID
  E. highest root bridge ID
  F. highest path cost to root bridge
  A. lowest root bridge ID
  B. lowest path cost to root bridge
  C. lowest sender bridge ID

• Question 497:

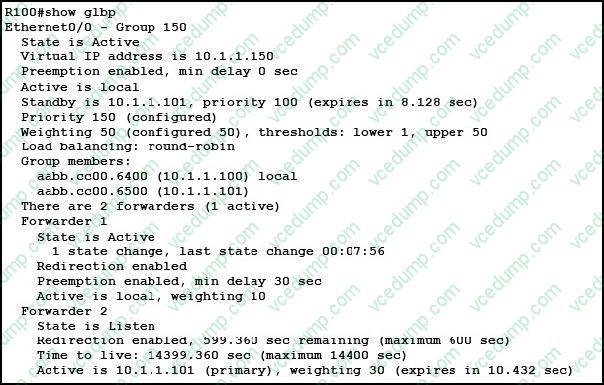

  Refer to the exhibit.



  How will traffic be split between the routers, assuming that there are many hosts on this subnet?

  A. All traffic will be sent to the primary router (10.1.1.100).
  B. Traffic will be split equally between the two routers (10.1.1.100 and 10.1.1.101).
  C. Traffic will be split 25% (10.1.1.101) / 75% (10.1.1.100) between the two routers.
  D. Traffic will be split 75% (10.1.1.101) / 25% (10.1.1.100) between the two routers.
  D. Traffic will be split 75% (10.1.1.101) / 25% (10.1.1.100) between the two routers.

• Question 498:

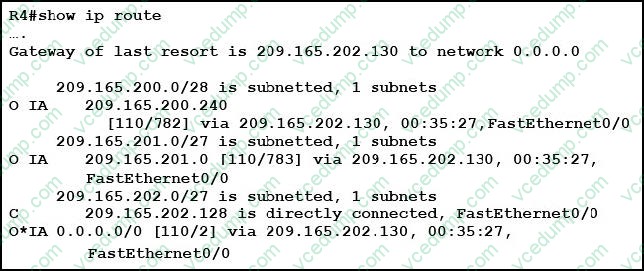

  Refer to the exhibit.



  R4 is configured as an OSPF stub.

  Which action must be taken to avoid R4 from learning OSPF type 3 LSA inter-area routes from 209.165.202.130?

  A. Disable sending summary LSAs by adding no-summary to the stub command on the ABR.
  B. R4 must filter the incoming OSPF updates using route maps.
  C. Disable sending summary LSAs by adding no-summary to the stub command on the ASBR.
  D. Control of inter-area route propagation is best handled with EIGRP.
  A. Disable sending summary LSAs by adding no-summary to the stub command on the ABR.

• Question 499:

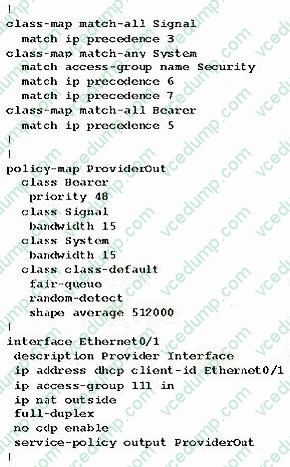

  Refer to the exhibit. Which of these is applied to the Bearer class?



  A. wred
  B. traffic shaping
  C. packet marking
  D. packet classification
  E. FIFO queuing within the class
  E. FIFO queuing within the class

• Question 500:

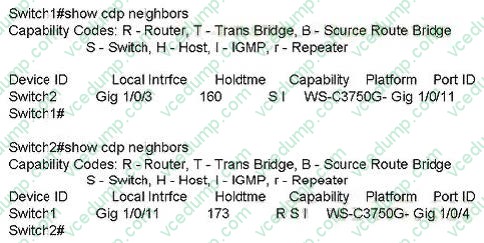

  Refer to the exhibit. Look at the command output.

  What would be the most probable reason for this port-ID mismatch?



  A. spanning-tree misconfiguration
  B. speed mismatch configuration
  C. cabling problem
  D. configuration problem
  C. cabling problem
