Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 511:

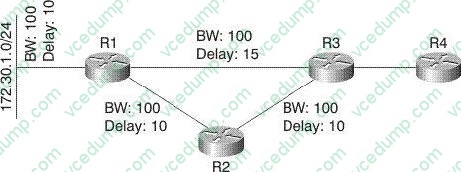

  Refer to the exhibit. Assuming that the routing protocol for this network is EIGRP, if the link between R1 and R3 failed, what would R4 receive from R3?



  A. R4 would receive an update noting R3's higher cost to reach 172.30.1.0/24.
  B. R4 would not receive any updates or queries, since R3 would simply move to the path through R2.
  C. R4 would receive a query, since R3 would mark 172.30.1.0/24 as active when the link between R1 and R4 failed.
  D. R4 would not receive any packets, since R3 is not using the link to R1 to reach 172.30.1.0/24.
  A. R4 would receive an update noting R3's higher cost to reach 172.30.1.0/24.

• Question 512:

  What does the command ip pim send-rp-discovery scope 16 achieve?

  A. it enables PIM BSR
  B. it makes the router an Auto-RP mapping agent
  C. it advertises the router as an RP with Auto-RP
  D. it makes the router an Auto-RP client
  B. it makes the router an Auto-RP mapping agent

• Question 513:

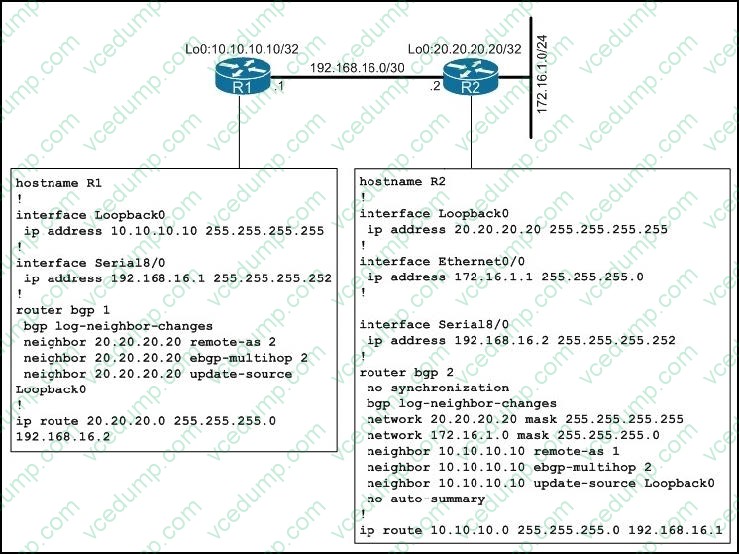

  Refer to the exhibit.



  While troubleshooting BGP in this network, you notice that routes are constantly flapping on R1. What can be done to solve this issue?

  A. Disable synchronization on R1 so that routes from R2 are installed in the routing table.
  B. Disable autosummary on R1 so that routes from R2 are installed in routing table.
  C. Increase the EBGP multihop count to 3.
  D. Replace the static route on R1 with a specific route to 20.20.20.20/32.
  D. Replace the static route on R1 with a specific route to 20.20.20.20/32.

• Question 514:

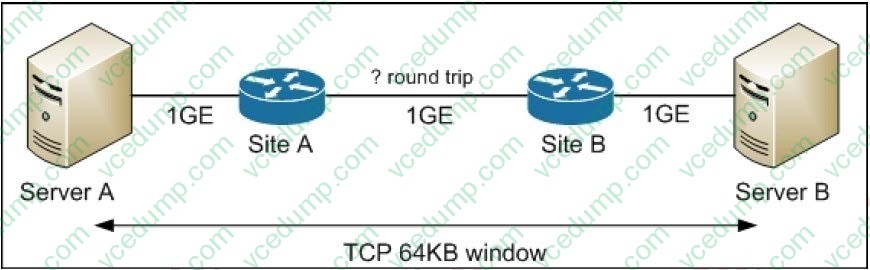

  . Refer to the exhibit



  A single file transfer is executed between Server A in Site A and Server B in Site B. What is the maximum allowable round-trip time if a speed of 1 Gb/s needs to be achieved?

  A. 500 microsec
  B. 10 ms
  C. 1 ms
  D. 50 ms
  A. 500 microsec

• Question 515:

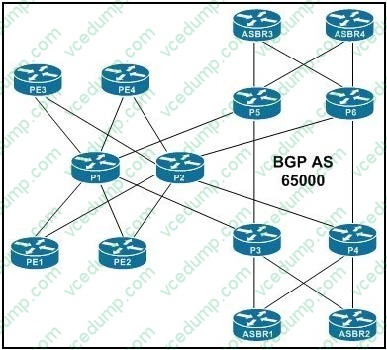

  Refer to the exhibit. AS65000 has core network P1 P6. The eBGP peers to another AS are through ASBR12 and ASBR34. All business and residential customers POPs are currently connected to the P1P2 core. AS65000 has decided to enable MPLS L3VPN services between all ASBR and PE routers.

  Which routers are the best positioned as VPNv4 RR?



  A. ASBR1, ASBR2 and ASBR3, ASBR4, since they have eBGP peers to another AS
  B. P1, since it is in the center of the MPLS network
  C. a new pair of routers (RR1, RR2) dedicated as VPNv4 RR connected to P1, P2 since they are off the path
  D. in MPLS L3VPN, there is no requirement to have VPNv4 RR
  C. a new pair of routers (RR1, RR2) dedicated as VPNv4 RR connected to P1, P2 since they are off the path

• Question 516:

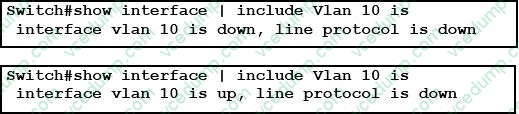

  Refer to the exhibit



  Clients in VLAN 10 complain that they cannot access network resources outside VLAN 10, and the Internet. When you try to ping the default gateway from one of the affected clients, you get ping timeouts.

  What is the cause of this issue?

  A. VLAN 10 is only enabled on trunk interfaces.
  B. VLAN 10 is not created in the switch database.
  C. STP is not running on the switch.
  D. IP routing is disabled on the switch.
  E. The switch CAM table is corrupted.
  F. The no shutdown command is issued under the VLAN 10 interface configuration.
  B. VLAN 10 is not created in the switch database.

• Question 517:

  You are responsible for network monitoring and need to monitor traffic over a routed network from a remote source to an IDS or IPS located in the headquarters site.

  What would you use in order to accomplish this?

  A. VACLs and VSPAN
  B. RSPAN
  C. ERSPAN
  D. NetFlow
  C. ERSPAN

• Question 518:

  The OSPF RFC 3623 Graceful Restart feature allows you to configure IETF NSF in ultivendor networks. When using OSPF Graceful Restart, which mechanism is used to continue forwarding packets during a switchover?

  A. Reverse Path Forwarding
  B. Hardware-based forwarding
  C. UDP forwarding
  D. Layer 2 Forwarding
  B. Hardware-based forwarding

• Question 519:

  You are configuring an 802.1Q trunk between a Layer 2 switch and a firewall. You read in the documentation that the best way to set up a trunk is to set the port as dynamic desirable. The trunk is not coming up. Which one of these options would be a valid explanation?

  A. The firewall does not support Cisco Discovery Protocol. You should set the switchport trunk mode ON.
  B. The firewall does not support Cisco Discovery Protocol. You should set the switchport trunk mode to OFF.
  C. The firewall does not support Cisco Discovery Protocol. You should set the switchport trunk mode as auto.
  D. The firewall does not support DTP. You should set the switchport trunk mode to ON.
  D. The firewall does not support DTP. You should set the switchport trunk mode to ON.

• Question 520:

  On a Cisco router that is in ROMMON mode, how can you set the configuration register to its default value?

  A. set confreg 0x2102
  B. confreg 0x2102
  C. config-register 0x2102
  D. set config-register 0x2102
  B. confreg 0x2102
