Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 481:

  You replaced your Layer 3 switch, which is the default gateway of the end users. Many users cannot access anything now, including email, Internet, and other applications, although other users do not have any issues. All of the applications are hosted in an outsourced data center.

  In order to fix the problem, which one of these actions should you take?

  A. Clear the MAC address table in the switch.
  B. Clear the ARP cache in the switch.
  C. Clear the ARP cache in the end devices.
  D. Clear the ARP cache in the application servers.
  C. Clear the ARP cache in the end devices.

• Question 482:

  You have two EBGP peers connected via two parallel serial lines. What should you do to be able to load- balance between two EBGP speakers over the parallel serial lines in both directions?

  A. nothing, BGP automatically load-balances the traffic between different autonomous systems on all available links
  B. peer between the eBGP speaker's loopbacks, configuring eBGP multihop as required, and use an IGP to load-share between the two equal-cost paths between the loopback addresses
  C. configure a loopback as update source for both EBGP peers and have on each AS an IGP to introduce two equal-cost paths to reach the EBGP peer loopback address; it is also necessary to use the next- hop-self command
  D. use the ebgp-load-balance command on the neighbor statement on both sides
  E. configure a loopback as update source for both EBGP peers and have on each AS an IGP to introduce two equal-cost paths to reach the peer loopback address; it is also necessary to use the ebgp-multihop and next-hop-self commands
  B. peer between the eBGP speaker's loopbacks, configuring eBGP multihop as required, and use an IGP to load-share between the two equal-cost paths between the loopback addresses

• Question 483:

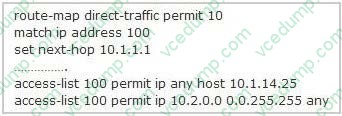

  Based on the exhibit presented. What will be the objective of this route map when applied to traffic passing through a router?



  A. Take any packet sourced from any address in the 10.2.0.0/16 network or destined to 10.1.14.25 and set the next hop to 10.1.1.1
  B. Take any packet sourced from any address in the 10.2.0.0/16 network and destined to 10.1.14.25 and set the next hop to 10.1.1.1
  C. Nothing; extended access lists are not allowed in route maps used for policy-based routing
  D. Drop any packet sourced from 10.2.0.0/16
  A. Take any packet sourced from any address in the 10.2.0.0/16 network or destined to 10.1.14.25 and set the next hop to 10.1.1.1

• Question 484:

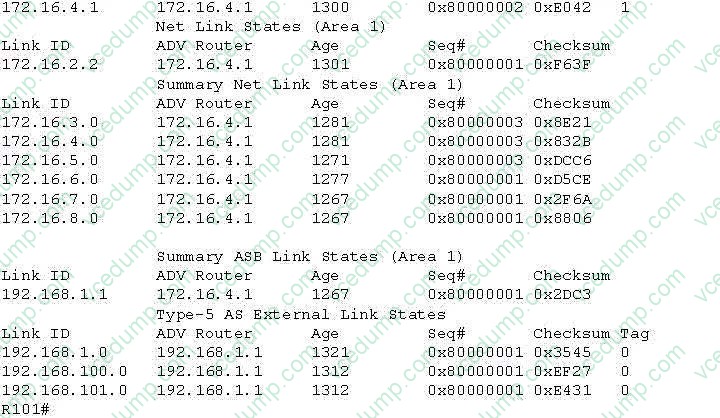

  Refer to the exhibit. Your network is primarily an OSPF network, but there are points of redistribution from other routing protocols into your network. No route filtering has been implemented. Taking into account the output from the show ip ospf database command in the exhibit, which of these statements is true?



  A. R101 is in Area 1, and Area 1 is a standard OSPF area
  B. R101 is in Area 1, and Area 1 is an OSPF stub area
  C. R101 is in Area 1, and Area 1 is an OSPF not-so-stubby area
  D. R101 is an ABR for Area 0 and Area 1
  E. R101 is an ASBR
  A. R101 is in Area 1, and Area 1 is a standard OSPF area

• Question 485:

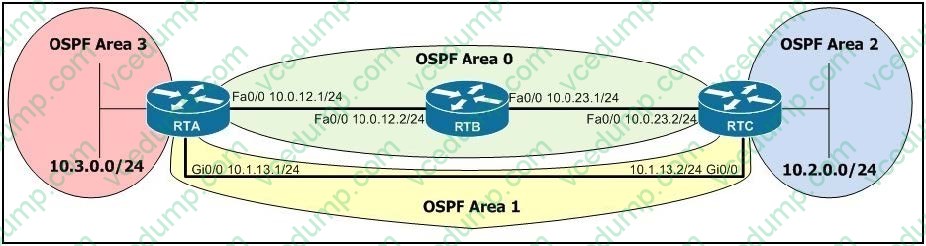

  Refer to the exhibit. A new link has been provisioned between routers RTA and RTC. After all routing is configured and connectivity is established, you are facing an application performance issue between network 10.2.0.0/24 and 10.3.0.0/24. When you check the routing table of router RTC, you find out that packets toward network 10.3.3.0/24 are sent out via the slower path out of the Fa0/0 interface.

  What would you do to solve this issue?



  A. change Gi0/0 on RTA to area 3 and Gi0/0 on RTC to area 2
  B. change Gi0/0 on RTA to area 0 and Gi0/0 on RTC to area 2
  C. change Gi0/0 on RTA to area 3 and Gi0/0 on RTC to area 0
  D. change Gi0/0 on RTA to area 0 and Gi0/0 on RTC to area 0
  E. change Gi0/0 on RTA to area 1 and Gi0/0 on RTC to area 1
  D. change Gi0/0 on RTA to area 0 and Gi0/0 on RTC to area 0

• Question 486:

  In which two spanning-tree port states is the port learning MAC addresses? (Choose two.)

  A. disabled
  B. blocking
  C. listening
  D. learning
  E. forwarding
  D. learning
  E. forwarding

• Question 487:

  Refer to the exhibit. AS65000 has core network P1 - P6. The eBGP peers to another AS are through ASBR1-2 and ASBR3-4. All business and residential customer POPs are connected to the P1 - P2 core. AS65000 has decided to enable MPLS LDP on all BGP routers, and disable BGP on the core network (P1 - P6).

  What is the drawback of this BGP core-free network?



  A. MPLS LDP is slower compared to BGP.
  B. All IP addresses of nodes and links within AS65000 are exposed to any external AS.
  C. The BGP configuration must be full-mesh between the ASBR and PE routers.
  D. The core router will not be involved in the BGP path selection process.
  D. The core router will not be involved in the BGP path selection process.

• Question 488:

  Which statement best describes OSPF external LSAs (type 5)?

  A. OSPF external LSAs are automatically flooded into all OSPF areas, unlike type 7 LSAs, which require that redistribution be configured.
  B. External LSAs (type 5) are automatically changed to type 1 LSAs at ASBRs.
  C. Type 5 LSAs are route summaries describing routes to networks outside the OSPF Autonomous System.
  D. External network LSAs (type 5) redistributed from other routing protocols into OSPF are not permitted to flood into a stub area.
  D. External network LSAs (type 5) redistributed from other routing protocols into OSPF are not permitted to flood into a stub area.

• Question 489:

  Refer to the exhibit. What type of issue does this error log indicate if the IP address in the error log is located off of the Router A WAN?



  A. HSRP standby configuration error
  B. HSRP burned-in address error
  C. HSRP secondary address configuration error
  D. this is not an HSRP problem, but rather an STP error or router or switch configuration issue
  D. this is not an HSRP problem, but rather an STP error or router or switch configuration issue

• Question 490:

  What is the purpose of the STP PortFast BPDU guard feature?

  A. enforce the placement of the root bridge in the network
  B. ensure that a port is transitioned to a forwarding state quickly if a BPDU is received
  C. enforce the borders of an STP domain
  D. ensure that any BPDUs received are forwarded into the STP domain
  C. enforce the borders of an STP domain
