• Question 471:

  Multi Protocol Label Switching (MPLS) is a data-carrying mechanism that belongs to the family of packet-switched networks. For an MPLS label, if the stack bit is set to1, which option is true?

  A. The stack bit will only be used when LDP is the label distribution protocol
  B. The label is the last entry in the label stack.
  C. The stack bit is for Cisco implementations exclusively and will only be used when TDP is the label distribution protocol.
  D. The stack bit is reserved for future use.
  B. The label is the last entry in the label stack.

• Question 472:

  What is Phantom RP used for?

  A. it is used for load balancing in bidirectional PIM
  B. it is used for redundancy in bidirectional PIM
  C. it is used for redundancy in PIM-SM
  D. it is used for load balancing in PIM-SM
  B. it is used for redundancy in bidirectional PIM

• Question 473:

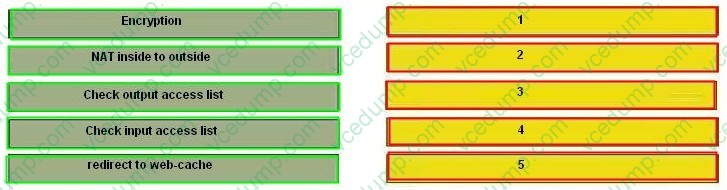

  Doing inside to outside NAT translations. Drag each action that the router will perform on the left to its correct order on the right.

  Select and Place:





• Question 474:

  Which two of these are differences between traffic policing and traffic shaping? (Choose two.)

  A. with traffic shaping, a router stores excess traffic in packet buffers until bandwidth is available again
  B. with policing you can tune the buffer usage for traffic exceeding the specified CIR
  C. with shaping you can tune the buffer usage for traffic exceeding the specified CIR D. shaping should only be applied for ingress traffic, policing only for egress
  E. policing uses a token bucket algorithm, shaping uses an SPD algorithm
  A. with traffic shaping, a router stores excess traffic in packet buffers until bandwidth is available again
  C. with shaping you can tune the buffer usage for traffic exceeding the specified CIR D. shaping should only be applied for ingress traffic, policing only for egress

• Question 475:

  Network A has a spanning-tree problem in which the traffic is selecting a longer path. How is the path cost calculated?

  A. number of hops
  B. priority of the bridge
  C. interface bandwidth
  D. interface delay
  E. None of the above
  C. interface bandwidth

• Question 476:

  Which two protocols can have their headers compressed through MQC? (Choose two.)

  A. RTP
  B. RTSP
  C. HTTP
  D. TCP
  E. UDP
  A. RTP
  D. TCP

• Question 477:

  Which statement is true about TCN propagation in RSTP (802.1w)?

  A. The originator of the TCN immediately floods this information through the network.
  B. The TCN propagation is a two step process.
  C. A TCN is generated and sent to the root bridge.
  D. The root bridge must flood this information throughout the network.
  A. The originator of the TCN immediately floods this information through the network.

• Question 478:

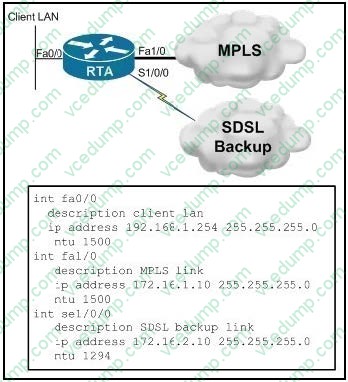

  Refer to the exhibit. You get reports that Windows users cannot log in anymore when the main MPLS link is down. The message that users receive is, "There are currently no login servers available to service the login request." However, if you modify the MTU of the client machine to 1294, the user can log in.

  What would be a reliable fix for this issue?



  A. add "ip tcp mss-adjust 1254" to se1/0/0
  B. add "ip tcp mss-adjust 1254" to se1/0/0 and fa1/0
  C. force Windows to use TCP for Kerberos
  D. add "ip icmp error-send" to se1/0/0
  C. force Windows to use TCP for Kerberos

• Question 479:

  This question is about the formation of OSPF adjacency. An OSPF adjacency will not form correctly across a point-to-point link in the same area. Which would most likely cause this problem?

  A. Each interface has a different OSPF cost.
  B. Each interface is configured with secondary addresses as well as primary addresses.
  C. Each interface has a different MTU size.
  D. Each interface is configured with the ip unnumbered loopback 0 command.
  C. Each interface has a different MTU size.

• Question 480:

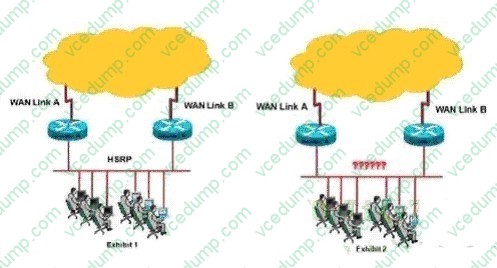

  Refer to exhibits 1 and 2. In exhibit 1, all users on the LAN segment use router A as the active HSRP router. Router B is the standby router for the HSRP. In exhibit 2, the network management team reported that there is no utilization on the WAN link B. To solve this problem, you decide to change the logical topology of your LAN, but you are not sure about what changes must be made. You must manage HSRP or change it to another protocol in order to provide the most scalable design, automatic redundancy, and load balancing.

  Which one of these actions would be the best choice?



  A. Use MHSRP, with three users using router A as the default gateway and three users using router B as the default gateway.
  B. Keep HSRP and activate PBR to redirect half of the traffic to the other WAN link.
  C. Use the backup interface on the WAN link B to provide load balancing for all users.
  D. Use GLBP instead, because it provides you with up to three MAC addresses for the same default gateway virtual IP address.
  E. Use GLBP instead, because it provides you with up to four MAC addresses for the same default gateway virtual IP address.
  E. Use GLBP instead, because it provides you with up to four MAC addresses for the same default gateway virtual IP address.
