Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 461:

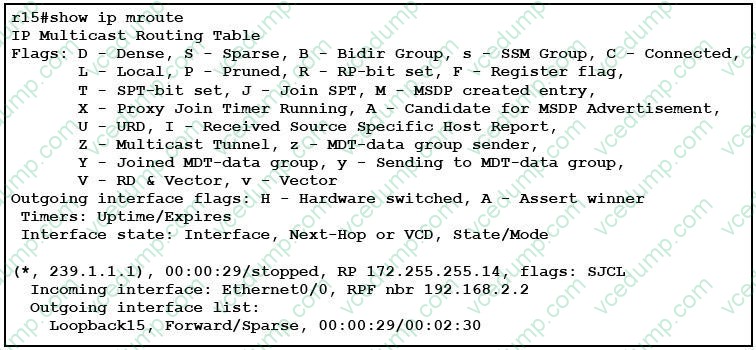

  Refer to the exhibit. What does the incoming interface of the above (*, G) entry indicate?



  A. the interface closest to the source, according to the unicast routing table
  B. the interface where an IGMP join has been received
  C. the interface with the highest IP address
  D. the last interface to hear a PIM (*, G) join
  E. the interface closest to the RP, according to the unicast routing table
  E. the interface closest to the RP, according to the unicast routing table

• Question 462:

  Refer to the exhibit. Which output will the EEM applet in the exhibit produce?



  A. The output of show version will be executed every 5 hours.
  B. The output of show log will be executed every 5 hours.
  C. The output of show log will be executed every Friday.
  D. The output of show log will be executed every 5 minutes.
  D. The output of show log will be executed every 5 minutes.

• Question 463:

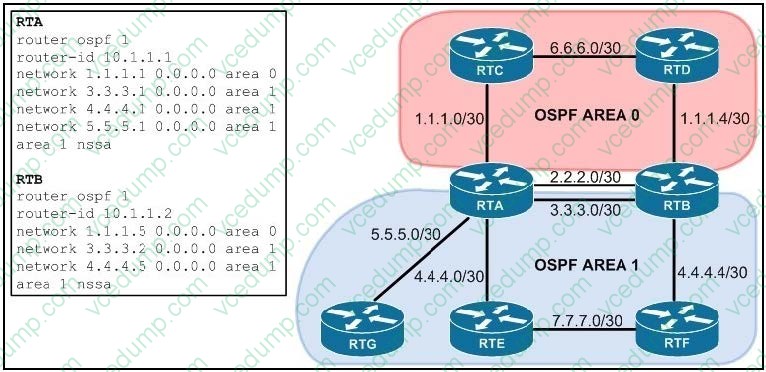

  Refer to the exhibit. RTE is redistributing some static routes into OSPF as E2. Which LSA will be seen in RTA and RTB for those routes?



  A. LSA1
  B. LSA5
  C. LSA7
  D. RTA/RTB will not see any LSA for those routes, since this is NSSA and no external redistribution is allowed
  C. LSA7

• Question 464:

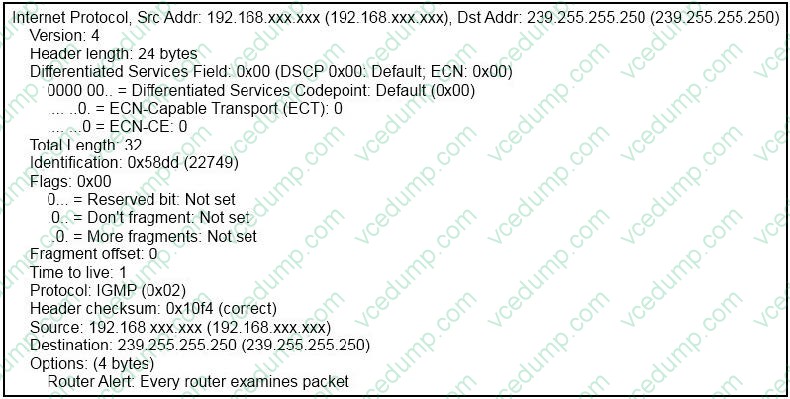

  Refer to the exhibit. Which IGMPv2 message is displayed in the output of the packet capture?



  A. General Query
  B. Membership Report
  C. Membership Query
  D. Membership Delay
  B. Membership Report

• Question 465:

  Refer to the exhibit. We have IPv6 multicast configured between R5 and R6, which three statements are true based on the partial command output shown? (Choose three)



  R6#sh ipv6 mroute <...>

  (*,FF04::10), 01:15:32/never, RP 2001:DB8:5::5, flags: SPC Incoming interface: GigabitEthernet0/0 RPF nbr: FE80::216:47FF:FEBB:FF0

  (*,FF04::30), 00:00:07/never, RP 2001:DB8:5::5, flags: SPC Incoming Interface: GigabitEthernet0/0 RPF nbr: FE80::216:47FF:FEBB:FF0

  A. R6 has joined one multicast group, and it expires in 46 seconds.
  B. The rendezvous point address is 2001:DB8:5::5.
  C. The multicast group address is FE80::216.
  D. R6 has joined two multicast groups, and it expires in 7 seconds.
  E. The multicast entry is operating in sparse mode.
  F. The multicast groups are FF04::10 and FF04::30.
  B. The rendezvous point address is 2001:DB8:5::5.
  E. The multicast entry is operating in sparse mode.
  F. The multicast groups are FF04::10 and FF04::30.

• Question 466:

  Which of these statements about the Designated Forwarder in bidirectional PIM is true?

  A. It has the best route to the rendezvous point and is the only router on the local subnet that may forward multicast traffic up the shared tree.
  B. It is responsible for forwarding all multicast traffic on to and off of the local subnet.
  C. It is elected based on the highest IP address of all PIM routers on the local subnet and is the only router on the local subnet that may forward multicast traffic up the shared tree.
  D. It has the best route to the rendezvous point and is the only router on the local subnet that may forward multicast traffic down the shared tree.
  A. It has the best route to the rendezvous point and is the only router on the local subnet that may forward multicast traffic up the shared tree.

• Question 467:

  Internet Protocol version 6 (IPv6) is the next-generation Internet Layer protocol for packet- switched internetworks and the Internet. IPv6 router solicitation is:

  A. A request made by a node for the IP address of the local router
  B. A request made by a node to join a specified multicast group
  C. A request made by a node for a DHCP provided IP address
  D. A request made by a node for the IP address of the DHCP server
  A. A request made by a node for the IP address of the local router

• Question 468:

  After applying a new ACL on a device, its CPU utilization rose significantly and many messages starting with "%SEC-6-IPACCESSLOG" appeared on the Syslog server. What can be done to resolve this situation?

  A. Increase memory allocation for ACLs.
  B. Remove all entries from the ACL and use a single permit ip any any statement.
  C. Remove the log keyword from each ACL entry.
  D. Reboot the device after the ACL has been applied.
  C. Remove the log keyword from each ACL entry.

• Question 469:

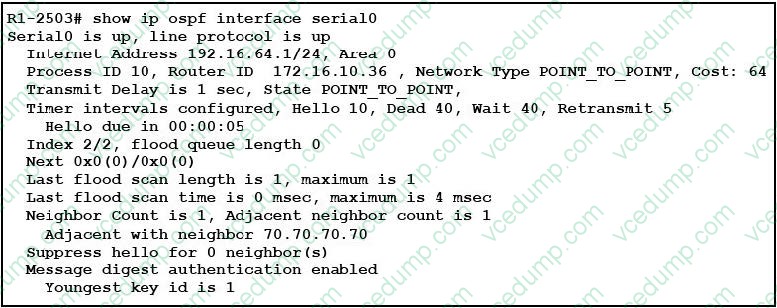

  Refer to the exhibit. Which statement is correct?



  A. OSPF peers are using Type 1 authentication
  B. OSPF peers are using Type 2 authentication
  C. Authentication is used, but there is a password mismatch
  D. The OSPF peer IP address is 172.16.10.36
  B. OSPF peers are using Type 2 authentication

• Question 470:

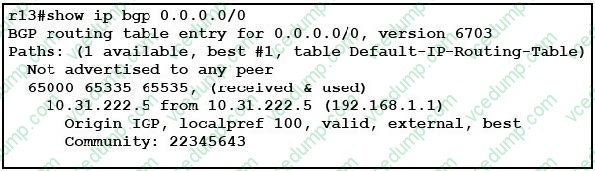

  Refer to the exhibit. What does "(192.168.1.1)" indicate in the output?



  A. the BGP router ID of the eBGP peer
  B. the advertising route reflector cluster-id
  C. the router originating this prefix
  D. the BGP router ID of the iBGP peer
  E. our local router ID
  F. the BGP next hop for this route
  A. the BGP router ID of the eBGP peer
