Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 451:

  The core of a network has four routers connected in a square design with Gigabit Ethernet links using /30 subnets. The network is used to carry voice traffic and other applications. Convergence time is taking more than expected. Which three actions would you take to improve OSPF convergence time? (Choose three.)

  A. Increase MTU of the interfaces to accommodate larger OSPF packets
  B. Change the network type to point-to-point on those links.
  C. Reduce SPF initial timer.
  D. Increase hello interval to avoid adjacency flapping.
  E. Enable OSPF.
  B. Change the network type to point-to-point on those links.
  C. Reduce SPF initial timer.
  D. Increase hello interval to avoid adjacency flapping.

• Question 452:

  Which of these tables is used by an LSR to perform a forwarding lookup for a packet destined to an address within an RFC 4364 VPN?

  A. CEF
  B. FIB
  C. LFIB
  D. IGP
  C. LFIB

• Question 453:

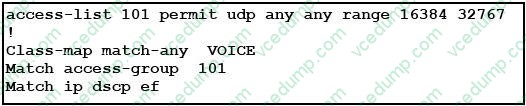

  Refer to the exhibit. On what will the config class-map VOICE match?



  A. only on UDP traffic between port ranges 16384 and 32767
  B. only on DSCP EF traffic
  C. on UDP traffic between port ranges 16384 and 32767, and on DSCP EF traffic
  D. only on EF traffic that is UDP and within the UDP range of 16384 and 32767
  C. on UDP traffic between port ranges 16384 and 32767, and on DSCP EF traffic

• Question 454:

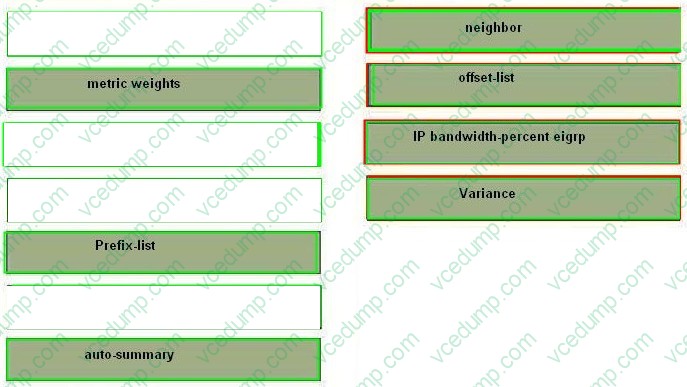

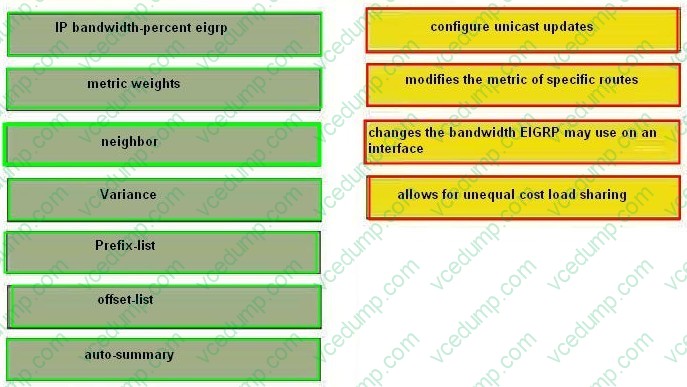

  Drag the command or keyword on the left to the correct definition on the right. Not all options will be used.

  Select and Place:





• Question 455:

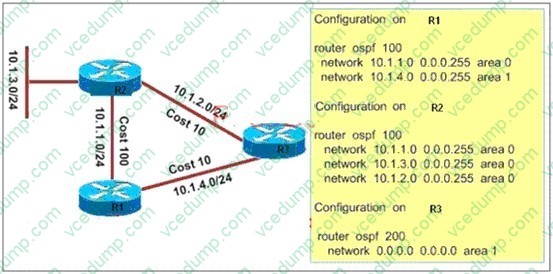

  Observe the following exhibit seriously, which path will be preferred by traffic destined to 10.1.3.1 and arriving at R1?



  A. through R3, because R1 will only have a summary (type 3) LSA from R2
  B. through R2, since it is the path through Area 0
  C. through R3, since that is the lowest cost path (10+10 = 20, which is lower than 100)
  D. through R2; this is the only path available for R1 to reach 10.1.3.0/24, since R3 is in a different autonomous system than R1 and R2
  B. through R2, since it is the path through Area 0

• Question 456:

  Router 1 is configured for BGP as dual-homed on the Cisco network.

  Which three BGP attributes are carried in every BGP update on this router (both IBGP and EBGP)? (Choose three.)

  A. origin
  B. router-ID
  C. AS-path
  D. local-preference
  E. next-hop
  A. origin
  C. AS-path
  E. next-hop

• Question 457:

  Which three are needed to run VRF lite for IPv6 on a router? (Choose three.)

  A. VRF definition for IPv6
  B. MP BGP for IPv6
  C. LDP
  D. VRF-enabled routing protocol
  E. VRF-enabled interface
  A. VRF definition for IPv6
  D. VRF-enabled routing protocol
  E. VRF-enabled interface

• Question 458:

  IP multicast addresses in which range are used for Scope Relative multicast?

  A. The lowest (numerically) 256 multicast addresses of each administratively scoped address range are automatically reserved for Scope Relative multicast.
  B. Scope Relative multicast addresses must be chosen from the administratively scoped address range by the network administrator and configured on every router.
  C. The highest (numerically) 256 addresses of each administratively scoped address range are automatically reserved for Scope Relative multicast.
  D. The highest (numerically) 32 addresses of each administratively scoped address range are automatically reserved for Scope Relative multicast.
  C. The highest (numerically) 256 addresses of each administratively scoped address range are automatically reserved for Scope Relative multicast.

• Question 459:

  Which prefix list will only match on class A addresses with classful masks?

  A. ip prefix-list CLASS_A permit 0.0.0.0/1 ge 8 le 8
  B. ip prefix-list CLASS_A permit 0.0.0.0/1 le 8
  C. ip prefix-list CLASS_A permit 0.0.0.0/1 le 32
  D. ip prefix-list CLASS_A permit 0.0.0.0/1 ge 8 le 16
  E. ip prefix-list CLASS_A permit 0.0.0.0/1 ge 8 le 32
  A. ip prefix-list CLASS_A permit 0.0.0.0/1 ge 8 le 8

• Question 460:

  Where should frame-relay traffic shaping be applied?

  A. on the physical interface
  B. on the subinterface
  C. under the frame-relay map class
  D. on any of the above
  A. on the physical interface
