Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 431:

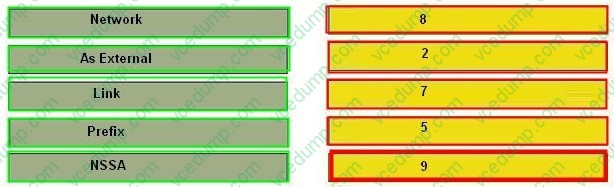

  Drag the OSPFv3 LSA on the left to the correct function code on the right.

  Select and Place:





• Question 432:

  While troubleshooting a network, you need to verify which hosts are active on the subnet 192.168.10.0/23. All of the hosts are able to reply to ping requests. How would you confirm the existing nodes with one single command?

  A. ping 192.168.10.255
  B. ping with sweep option
  C. ping 192.168.11.255
  D. ping with broadcast option
  E. ping 192.168.10.127
  C. ping 192.168.11.255

• Question 433:

  For the following ports, which port is on every bridge in a Spanning Tree Protocol IEEE 802.1w network except the root bridge?

  A. root port
  B. backup port
  C. designated port
  D. alternate port
  A. root port

• Question 434:

  Refer to the exhibit. When would the EEM applet be triggered?



  A. every time that the input packet per second counter is below 10, 000
  B. every time that the input packet per second counter has increased by 1, 000
  C. every time that the input packet per second counter is above 10, 000
  D. every time that the input packet per second counter has decreased by 1, 000
  C. every time that the input packet per second counter is above 10, 000

• Question 435:

  Which two tunneling techniques support IPv6 multicasting? (Choose two.)

  A. 6to4
  B. 6over4
  C. ISATAP
  D. 6PE
  E. GRE
  B. 6over4
  E. GRE

• Question 436:

  In which way can the IPv6 address of 2031:0000:130F:0000:0000:09C0:876A:130B be expressed most efficiently?

  A. 2031:0:130F:0:0:09C0:876A:130B
  B. 2031::130F::9C0:876A:130B
  C. 2031:0:130F::9C0:876A:130B
  D. 2031:0:130F:0:0:9C0:876A:130B
  C. 2031:0:130F::9C0:876A:130B

• Question 437:

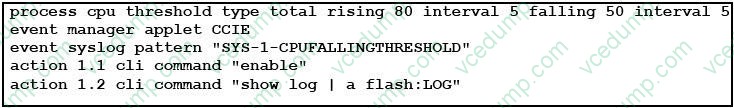

  Refer to the exhibit. Based on the above commands, when will the output of the show log command be saved?



  A. Each time the total CPU utilization goes below 50 percent
  B. Each time the total CPU utilization goes above 80 percent
  C. Every 5 minutes while the total CPU utilization is above 80 percent
  D. Every 5 seconds while the total CPU utilization is above 80 percent
  E. Every 5 minutes while the total CPU utilization is below 50 percent
  F. Every 5 seconds while the total CPU utilization is below 50 percent
  F. Every 5 seconds while the total CPU utilization is below 50 percent

• Question 438:

  Which three protocols or applications should be placed in a class that is configured with WRED? (Choose three.)

  A. HTTP
  B. RTP
  C. streaming video
  D. BitTorrent
  E. POP3
  A. HTTP
  D. BitTorrent
  E. POP3

• Question 439:

  Refer to the exhibit. Clients in VLAN 10 complain that they cannot access network resources and the Internet. When you try to ping the default gateway from one of the affected clients, you get ping timeouts.

  What is most likely the cause of this issue?



  A. VLAN 10 is only enabled on trunk interfaces.
  B. VLAN 10 is not created in the switch database.
  C. STP is not running on the switch.
  D. IP routing is disabled on the switch.
  E. The switch CAM table is corrupted.
  F. The no shutdown command is issued under the VLAN 10 interface configuration.
  D. IP routing is disabled on the switch.

• Question 440:

  Two routers are connected by a serial link, and are configured to run EIGRP on all interfaces. You examine the EIGRP neighbor table on both routers (using the show ip eigrp neighbor command) and see that the router connected over the serial link is listed as a neighbor for a certain amount of time, but is periodically removed from the neighbor table. None of the routes from the neighbor ever seem to be learned, and the neighbor transmission statistics (SRTT, RTO, and Q Count) seem to indicate that no packets are being transmitted between the neighbors.

  Which would most likely cause this problem?

  A. While multicast packets are being successfully sent over the link, unicast packets are not.
  B. There is a bug in the EIGRP code that needs to be fixed.
  C. This is correct behavior for the first few minutes of EIGRP neighbor formation. After four or five cycles, it should straighten itself out and the neighbor
  D. The hello or hold intervals are set differently on the two routers.
  A. While multicast packets are being successfully sent over the link, unicast packets are not.
