Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 351:

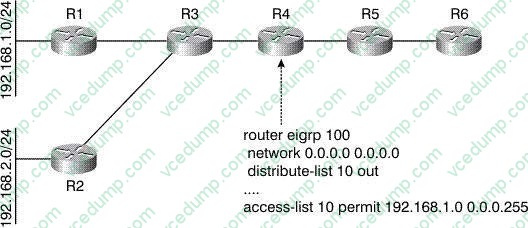

  Observe the following network presented in this exhibit carefully. Assume that all routers are running EIGRP in AS 100 on all connected links. If the link between R3 and R4 is down, how many queries will R5 and R6 receive?



  A. R5 will receive two queries, one for 192.168.1.0/24 and one for 192.168.2.0/24. R6 will receive one query, for 192.168.2.0/24.
  B. R5 will receive one query, for 192.168.1.0/24, and R6 will receive no queries
  C. Both R5 and R6 will receive two queries, one for 192.168.1.0/24 and one for 192.168.2.0/24
  D. Neither R5 nor R6 will receive any queries for either 192.168.1.0/24 or 192.168.2.0/24.
  A. R5 will receive two queries, one for 192.168.1.0/24 and one for 192.168.2.0/24. R6 will receive one query, for 192.168.2.0/24.

• Question 352:

  Which three causes could prevent a host from getting an IPv6 address with stateless autoconfiguration? (Choose three.)

  A. The autoconfig command is missing from the router interface.
  B. IPv6 multicast routing is not enabled on the router interface.
  C. IPv6 unicast routing is not enabled on the router interface.
  D. The router interface is configured with a /63 mask.
  E. The router interface is configured with a /65 mask.
  C. IPv6 unicast routing is not enabled on the router interface.
  D. The router interface is configured with a /63 mask.
  E. The router interface is configured with a /65 mask.

• Question 353:

  For the following protocols, which one provides a mechanism to transparently intercept and redirect CIFS traffic from a client to a local Cisco Wide Area Application engine?

  A. Virtual Router Redundancy Protocol (VRRP)
  B. File Transport Protocol (FTP)
  C. Hot Standby Routing Protocol (HSRP)
  D. Web Cache Communication Protocol (WCCP)
  D. Web Cache Communication Protocol (WCCP)

• Question 354:

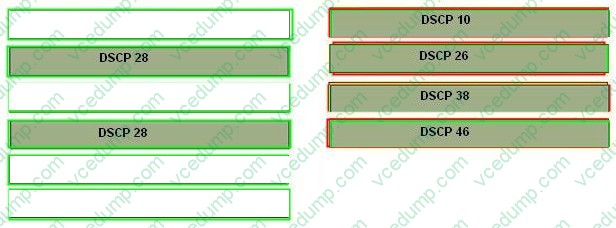

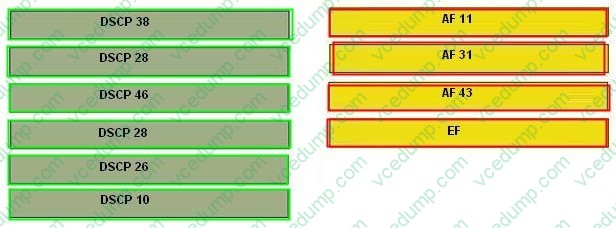

  Drag the DSCP values on the left to the correct classes on the right. Not all DSCP values will be used.

  Select and Place:





• Question 355:

  Which of these statements about OSPF external LSAs (type 5) is correct?

  A. External LSAs (type 5) are automatically changed to type 1 LSAs at ASBRs.
  B. Type 5 LSAs are route summaries describing routes to networks outside the OSPF Autonomous
  C. System.
  D. OSPF external LSAs are automatically flooded into all OSPF areas, unlike type 7 LSAs, which require that redistribution be configured.
  E. External network LSAs (type 5) redistributed from other routing protocols into OSPF are not permitted to flood into a stub area.
  F. OSPF external LSAs can be flooded into an NSSA area if redistributed from other routing protocols into OSPF and if the subnets parameter is used with the redistribute command.
  D. OSPF external LSAs are automatically flooded into all OSPF areas, unlike type 7 LSAs, which require that redistribution be configured.

• Question 356:

  A user has no network connectivity. A check of the associated port indicates that the interface is up, the line protocol is down. Which item would most likely cause this problem?

  A. Speed mismatch
  B. Incorrect encapsulation
  C. MTU set too low
  D. Duplex mismatch
  A. Speed mismatch

• Question 357:

  In which two scenarios would MSDP be used? (Choose two.)

  A. Interdomain multicast
  B. Anycast RP
  C. Distributing the RP address to other routers
  D. Implementing PIM-SSM
  A. Interdomain multicast
  B. Anycast RP

• Question 358:

  Your Cisco network currently runs OSPF and you have a need to policy-route some specific traffic, regardless of what the routing table shows. Which one of these options would enable you to policy-route the traffic?

  A. source IP address and the protocol (such as SSL, HTTPS, SSH)
  B. the packet Time to Live and the source IP address
  C. type of service header and DSCP value
  D. destination IP address
  A. source IP address and the protocol (such as SSL, HTTPS, SSH)

• Question 359:

  Which two are contained in a VTP summary advertisement? (Choose two.)

  A. configuration revision number B. VTP domain name
  C. VLAN information
  D. sequence number
  E. VLAN type
  A. configuration revision number B. VTP domain name

• Question 360:

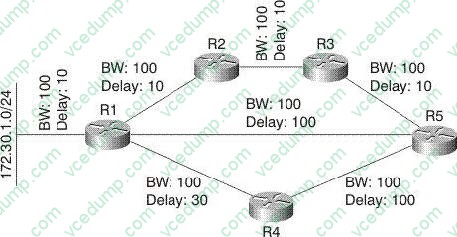

  On the basis of the exhibit provided, assuming that EIGRP is the routing protocol, then at R5, what would be the status of each path to 172.30.1.0/24?



  A. the path through R3 would be the successor, the path through R1 would be a feasible successor, and the path through R4 would be neither a successor nor a feasible successor
  B. not enough information has been given to figure out what the status of each route would be
  C. the path through R3 would be the successor, and the paths through R1 and R4 would be feasible successors
  D. the path through R1 would be the successor, the path through R3 would be a feasible successor, and the path through R4 would be neither a successor nor feasible successor
  A. the path through R3 would be the successor, the path through R1 would be a feasible successor, and the path through R4 would be neither a successor nor a feasible successor
