Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 361:

  Which two are differences between IGMPv2 and IGMPv3 reports? (Choose two.)

  A. IGMPv3 has the ability to include or exclude source lists.
  B. All IGMPv3 hosts send reports to destination address 224.0.0.22.
  C. Only IGMPv2 reports may contain multiple group state records.
  D. All IGMPv3 hosts send reports to destination address 224.0.0.23.
  E. IGMPv2 does not support the Leave Group message.
  A. IGMPv3 has the ability to include or exclude source lists.
  B. All IGMPv3 hosts send reports to destination address 224.0.0.22.

• Question 362:

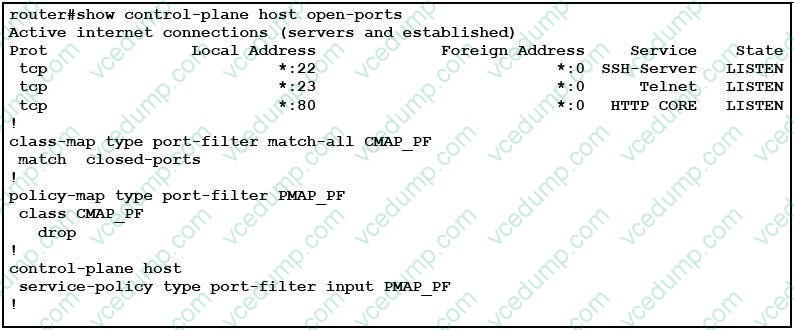

  Refer to the exhibit. Which statement is correct?



  A. This configuration is not valid.
  B. Control Plane Policing is configured; however you cannot determine on which interface it is configured.
  C. NTP is not configured on the router.
  D. Telnet traffic will be dropped.
  C. NTP is not configured on the router.

• Question 363:

  A new backup connection is being deployed on a remote site router. The stability of the connection has been a concern. In order to provide more information to EIGRP regarding this interface, you wish to incorporate the "reliability" cost metric in the EIGRP calculation with the command metric weights 1 0 1 0 1.

  What impact will this modification on the remote site router have for other existing EIGRP neighborships from the same EIGRP domain?

  A. Existing neighbors will immediately begin using the new metric.
  B. Existing neighbors will use the new metric after clearing the EIGRP neighbors.
  C. Existing neighbors will resync, maintaining the neighbor relationship.
  D. All existing neighbor relationships will go down.
  D. All existing neighbor relationships will go down.

• Question 364:

  Which two tunneling techniques in IPv6 do not require an IPv4 tunnel destination in the configuration? (Choose two.)

  A. 6to4
  B. 6over4
  C. ISATAP
  D. GRE
  A. 6to4
  C. ISATAP

• Question 365:

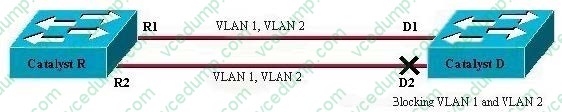

  Refer to the exhibit. Catalyst R is the root bridge for both VLAN 1 and VLAN 2. What is the easiest way to load-share traffic across both trunks and maintain redundancy in case a link fails, without using any type of EtherChannel link-bundling?



  A. Increase the root bridge priority (increasing the numerical priority number) for VLAN 2 on Catalyst D so that port D2 becomes the root port on Catalyst D for VLAN 2.
  B. Decrease the port priority on R2 for VLAN 2 on Catalyst R so that port D1 will be blocked for VLAN 2 and port D2 will remain blocked for VLAN 1.
  C. Decrease the path cost on R2 on Catalyst R for VLAN 2 so that port D1 will be blocked for VLAN 2 and port D2 will remain blocked for VLAN 1.
  D. Increase the root bridge priority (decreasing the numerical priority number) for VLAN 2 on Catalyst R so that R2 becomes the root port on Catalyst D for VLAN 2.
  B. Decrease the port priority on R2 for VLAN 2 on Catalyst R so that port D1 will be blocked for VLAN 2 and port D2 will remain blocked for VLAN 1.

• Question 366:

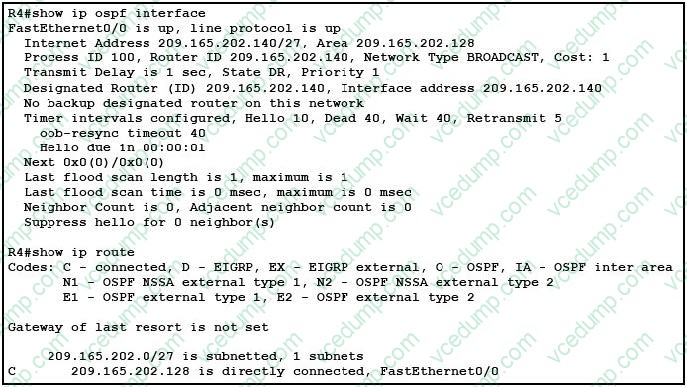

  Refer to the exhibit. What is preventing R4 from learning any networks via OSPF?



  A. R4 does not have any OSPF neighbors.
  B. There is no OSPF backup designated router on FastEthernet0/0.
  C. The OSPF area number for FastEthernet0/0 does not match the interface network.
  D. There are no OSPF learned routes in the network beyond R4.
  A. R4 does not have any OSPF neighbors.

• Question 367:

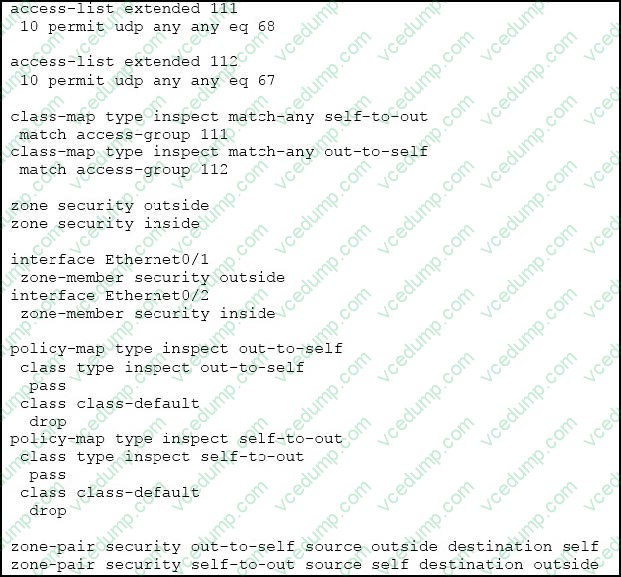

  Refer to the exhibit.



  A network engineer is trying to configure a router as a zone-based firewall and needs to allow DHCP traffic to and from the router on the outside interface. After applying the configuration to the router, he notices that his configuration is not working.

  What is wrong with the configuration?

  A. The UDP ports in access list 111 and access list 112 are incorrect.
  B. The wrong action has been configured on the policy map.
  C. The zone pair configuration is incorrect.
  D. The inside and outside references are incorrect.
  A. The UDP ports in access list 111 and access list 112 are incorrect.

• Question 368:

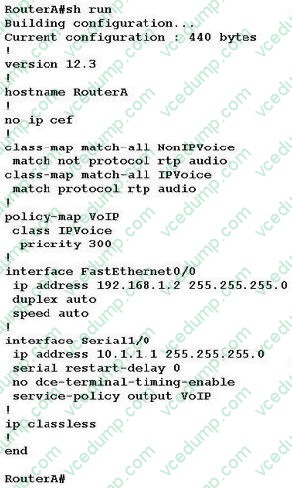

  Refer to the exhibit. A network engineer received a sudden request to prioritize voice over his Cisco network and he has decided to leverage the AutoQoS feature. Based on the output shown, which two tasks need to be performed prior to issuing the autoqos voip command in this router? (Choose two.)



  A. Enable Cisco Express Forwarding.
  B. Enable fast switching.
  C. Delete all policy maps.
  D. Remove service-policy commands from interface serial1/0.
  E. Delete all the currently configured class maps.
  A. Enable Cisco Express Forwarding.
  D. Remove service-policy commands from interface serial1/0.

• Question 369:

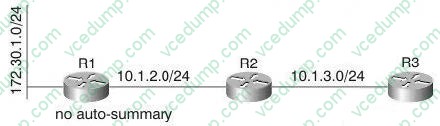

  Refer to the exhibit. In this network, R1 is configured not to perform autosummarization within EIGRP. What routes will R3 learn from R2 through EIGRP?



  A. 172.30.1.0/24 and 10.1.2.0/24; EIGRP only performs autosummarization at the edqe between two major networks.
  B. 172.30.0.0/16 and 10.1.2.0/24; R2 will perform autosummarization, although R1 will not.
  C. Since R2 is configured without autosummarization, it will not propagate the 172.30.1.0/24 route.
  D. 172.30.0.0/8 and 10.0.0.0/8
  A. 172.30.1.0/24 and 10.1.2.0/24; EIGRP only performs autosummarization at the edqe between two major networks.

• Question 370:

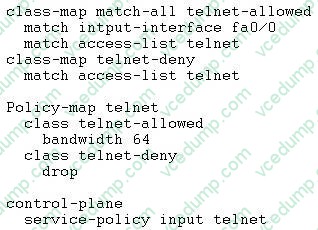

  Refer to the exhibit. Which option is correct?



  A. This configuration is not valid.
  B. The user can use Telnet to any interface on the device as long as the input interface for Telnet is FastEthernet 0/0.
  C. Telnet access is not allowed on the router.
  D. The user can use Telnet from the router only if the Telnet is sourced from FastEthernet 0/0.
  B. The user can use Telnet to any interface on the device as long as the input interface for Telnet is FastEthernet 0/0.
