Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 341:

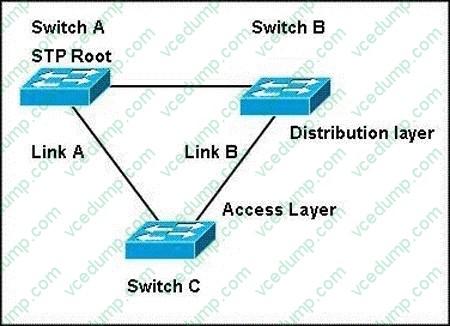

  Refer to the exhibit Spanning tree protocol is running on all three switches. The switches are configured so that Link A is the active link, and Link B is the standby link. There is a problem occurring where Switch B starts forwarding on Link B causing a routing loop.



  What is the likely cause of the problem?

  A. PortFast is not enabled.
  B. There is a port duplex mismatch.
  C. MISTP is enabled without RSTP.
  D. A single instance of STP is enabled instead of PVST.
  B. There is a port duplex mismatch.

• Question 342:

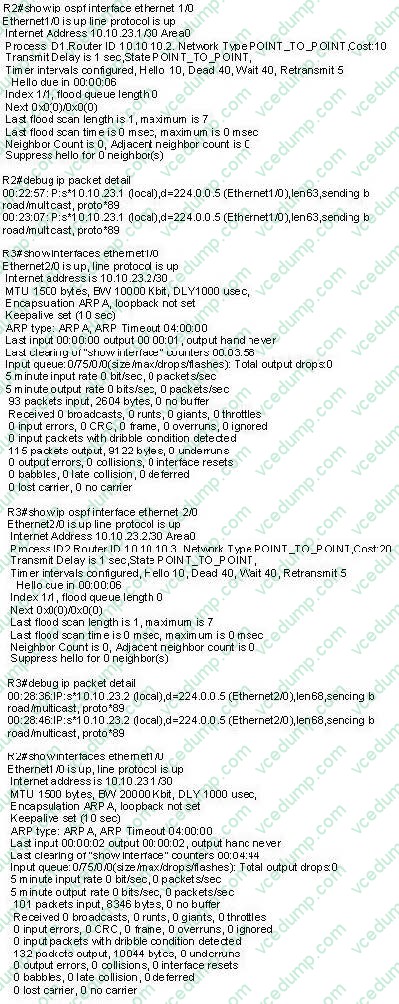

  Refer to the exhibit. R2 and R3 are routers connected using Ethernet services from a service provider and can receive pings from each other. OSPF is configured as the routing protocol but adjacency is not happening. According to the output of the show commands in the exhibit, what could be the most likely cause of the problem?



  A. Ethernet interfaces were configured as point-to-point.
  B. Process IDs are not matching.
  C. Configured bandwidths do not match on both interfaces.
  D. Broadcasts and multicast are not being propagated over the Ethernet services.
  E. OSPF cost does not match on both interfaces.
  D. Broadcasts and multicast are not being propagated over the Ethernet services.

• Question 343:

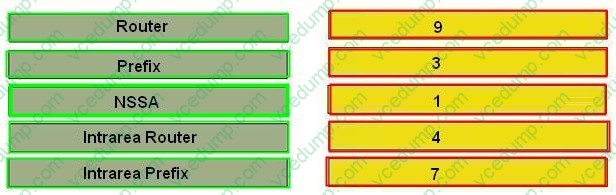

  Drag the OSPFv3 type on the left to the correct function code on right.

  Select and Place:





• Question 344:

  Which address needs to be present on an interface for OSPFv3 to form an adjacency?

  A. Global unicast
  B. Unique local
  C. Link local
  D. FF02::5
  E. FF02::6
  C. Link local

• Question 345:

  Half of your network uses RIPv2 and the other half runs OSPF. The networks do not communicate with each other.

  Which two of these factors describe the impact of activating EIGRP over each separate part? (Choose two.)

  A. EIGRP will not be accepted when configured on the actual RIPv2 routers.
  B. OSPF will no longer be used in the routing table, because you only have EIGRP internal routes running.
  C. OSPF will no longer be used in the routing table, because you only have EIGRP external routes running.
  D. RIPv2 will populate its RIP database but not its routing table, because you only have EIGRP external routes running.
  E. RIPv2 will populate its RIP database but not its routing table, because you only have EIGRP internal routes running.
  F. OSPF database will have RIPv2 routes.
  B. OSPF will no longer be used in the routing table, because you only have EIGRP internal routes running.
  E. RIPv2 will populate its RIP database but not its routing table, because you only have EIGRP internal routes running.

• Question 346:

  Which two orders in the BGP Best Path Selection process are correct? (Choose two.)

  A. Higher local preference, then lowest MED, then eBGP over iBGP paths
  B. Higher local preference, then highest weight, then lowest router ID
  C. Highest weight, then higher local preference, then shortest AS path
  D. Lowest origin type, then higher local preference, then lowest router ID
  E. Highest weight, then higher local preference, then highest MED
  A. Higher local preference, then lowest MED, then eBGP over iBGP paths
  C. Highest weight, then higher local preference, then shortest AS path

• Question 347:

  You have a router running BGP for the MPLS network and OSPF for the local LAN network at the sales office. A route is being learned from the MPLS network that also exists on the OSPF local network. It is important that the router chooses the local LAN route being learned from the downstream switch running OSPF rather than the upstream BGP neighbor. Also, if the local OSPF route goes away, the BGP route needs to be used.

  What should be configured to make sure that the router will choose the LAN network as the preferred path?

  A. static route needs to be added
  B. floating static route needs to be added
  C. bgp backdoor command
  D. ospf backdoor command
  C. bgp backdoor command

• Question 348:

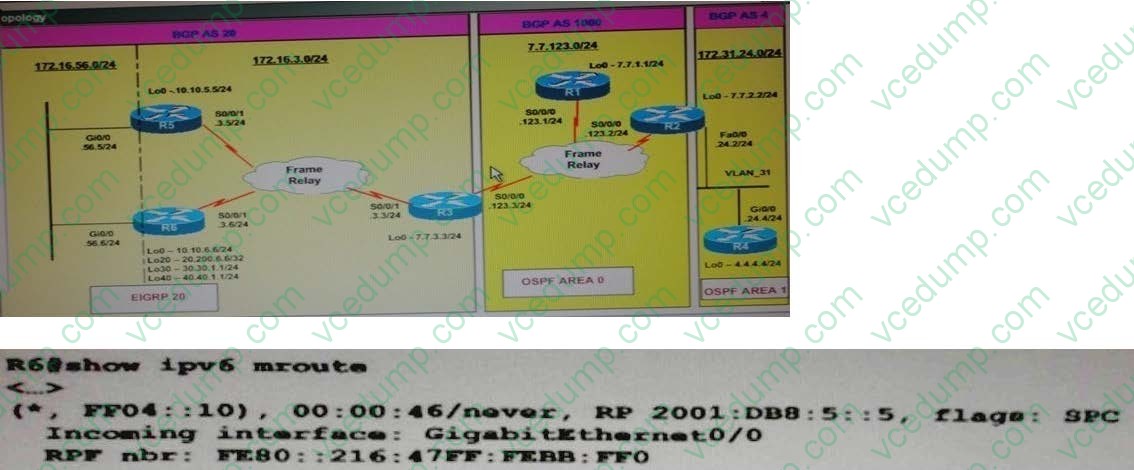

  Refer to the exhibit. We have IPv6 multicast configured between R5 and R6. Which two statements are true based on the partial command output shown? (Choose two.)



  A. R6 has joined the multicast group, and it expires in 46 seconds.
  B. The rendezvous point address is FE80::21 6:47FF:FEBB:FFO.
  C. The multicast group address is FF04::10.
  D. The multicast entry is operating in dense mode.
  E. The multicast route has been pruned.
  C. The multicast group address is FF04::10.
  E. The multicast route has been pruned.

• Question 349:

  Which command should be used on a PE router to connect to a CE router (11.1.1.4) in VRF red?

  A. telnet 11.1.1.4 /vrf-source red
  B. telnet 11.1.1.4 source /vrf red
  C. telnet 11.1.1.4 /source vrf red
  D. telnet 11.1.1.4 /vrf red
  E. telnet 11.1.1.4 vrf red
  D. telnet 11.1.1.4 /vrf red

• Question 350:

  When you are troubleshooting duplex mismatches, which two errors are typically seen on the full- duplex end? (Choose two.)

  A. runts
  B. FCS errors
  C. interface resets
  D. late collisions
  A. runts
  B. FCS errors
