Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 291:

  In order to configure two routers as anycast RPs, which of these requirements, af a minimum, must be satisfied?

  A. Multicast Source Discovery Protocol mesh-groups must be configured between the two anycast RPs.
  B. The RPs must be within the same IGP domain.
  C. Multicast Source Discovery Protocol must be configured between the two anycast RPs.
  D. The two anycast RPs must be IBGP peers.
  C. Multicast Source Discovery Protocol must be configured between the two anycast RPs.

• Question 292:

  Unicast Reverse Path Forwarding can perform all of these actions except which one?

  A. examine all packets received to make sure that the source addresses and source interfaces appear in the routing table and match the interfaces where the packets were received
  B. check to see if any packet received at a router interface arrives on the best return path
  C. combine with a configured ACL
  D. log its events, if you specify the logging options for the ACL entries used by the unicast rpf command
  E. inspect IP packets encapsulated in tunnels, such as GRE
  E. inspect IP packets encapsulated in tunnels, such as GRE

• Question 293:

  You are the network administrator of a small Layer 2 network with 50 users. Lately, users have been complaining that the network is very slow. While troubleshooting, you notice that the CAM table of your switch is full, although it supports up to 12, 000 MAC addresses.

  How can you solve this issue and prevent it from happening in the future?

  A. Upgrade the switches
  B. Configure BPDU guard
  C. Configure VLAN access lists
  D. Configure port security
  E. Configure Dynamic ARP inspection
  D. Configure port security

• Question 294:

  What is the default maximum reservable bandwidth (percentage) by any single flow on an interface after enabling RSVP?

  A. 75 percent
  B. 60 percent
  C. 56 percent
  D. 50 percent
  E. 25 percent
  A. 75 percent

• Question 295:

  Refer to the exhibit. All routers in this network are configured to run OSPF on all their connected links. R1 is redistributing 192.168.1.0/24 into Area 1. When the 192.168.1.0/24 network is disconnected from R1, the network administrator notes that R4 and R3 both receive two OSPF updates. Since 192.168.1.0/24 is within Area 1, the network administrator thinks this may indicate incorrect operation and calls technical support. Is this incorrect OSPF operation, and why or why not?



  A. This is correct operation; R3 should receive new LSAs from R1, and R4 should receive one updated LSA from R1 and another from R2.
  B. This is correct operation; R4 will receive and updated router (type 1) LSA from R1 and an OSPF update removing the external (type 5) LSA from the OSPF database.
  C. This is incorrect operation; R4 should only receive one LSA when 192.168.1.0/24 is disconnected from R1.
  D. This is incorrect operation; R4 should not receive any LSAs when 192.168.1.0/24 is disconnected from R1.
  A. This is correct operation; R3 should receive new LSAs from R1, and R4 should receive one updated LSA from R1 and another from R2.

• Question 296:

  Choose two commands that are required to enable multicast on a router, when it is known that the receivers use a specific functionality of IGMPv3. (Choose two.)

  A. ip pim rp-address
  B. ip pim ssm
  C. ip pim sparse-mode
  D. ip pim passive
  B. ip pim ssm
  C. ip pim sparse-mode

• Question 297:

  Which value is used in the PIM TYPE field to indicate a Register message?

  B. 1
  C. 2
  D. 3
  B. 1

• Question 298:

  In Frame Relay, the Discard Eligible bit works in conjunction with which of these mechanisms as part of congestion control?

  A. type of service (TOS) settings
  B. class of service (COS) settings
  C. Frame Relay traffic shaping (FRTS) settings
  D. forward explicit congestion notification (FECN) settings
  E. differentiated services code point (DSCP) Settings
  D. forward explicit congestion notification (FECN) settings

• Question 299:

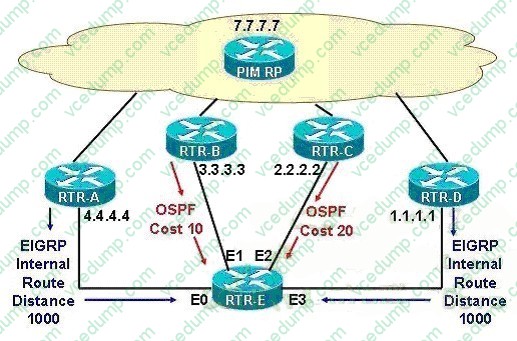

  Refer to the exhibit. Router E learned about the PIM RP (designated as 7.7.7.7) from four different sources. Routers A and D advertised the 7.0.0.0 network via EIGRP. Routers B and C advertised the 7.0.0.0 network via OSPF. Considering that all four Ethernet interfaces on router E could potentially lead back to the PIM-RP, when router E receives the first multicast packet down the shared tree, which incoming interface will be used to successfully pass the RPF check?



  A. E0
  B. E1
  C. E2
  D. E3
  E. None of these interfaces will be used to successfully pass the RPF check.
  F. All of these interfaces would successfully pass the RPF check.
  A. E0

• Question 300:

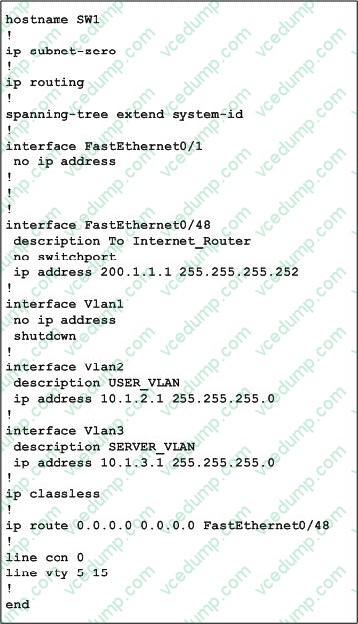

  Refer to the exhibit.



  While troubleshooting performance issues on your network, you notice that CPU utilization on your Layer 3 Internet switch is very high. What can be done to solve this issue?

  A. Use an SVI instead of a routed port to connect to the Internet router.
  B. This is a capacity issue. Replace the switch with a high-performance Layer 3 switch.
  C. Point the default static route to an IP address instead of a physical interface.
  D. Configure CoPP on the Layer 3 switch.
  C. Point the default static route to an IP address instead of a physical interface.
