Cisco 350-001 Online Practice Questions and Exam Preparation

350-001 Exam Details

  • Exam Code
    :350-001
  • Exam Name
    :CCIE Routing and Switching Written
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :581 Q&As
  • Last Updated
    :Dec 16, 2021

Cisco 350-001 Online Questions & Answers

  • Question 281:

    Which feature is used to translate several internal addresses to only one or a few external addresses (also referred to as "overload")?

    A. Network Address Translation
    B. Address Translation Table
    C. Overload Address Method
    D. Port Address Translation

  • Question 282:

    Which two statements are true about RED? (Choose two.)

    A. RED randomly drops packets before the queue becomes full.
    B. RED is always useful, without dependency on flow.
    C. RED increases the drop rate as the average queue size increases.
    D. RED has a per-flow intelligence.

  • Question 283:

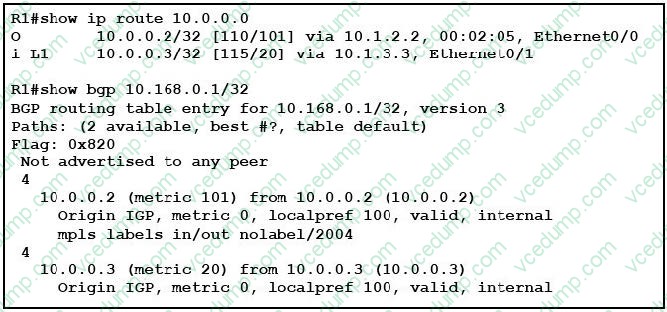

    Refer to the exhibit. The next hops are learned via OSPF and IS-IS. Which path is selected as the best path for 10.168.0.1?

    A. the path via 10.0.0.2, because it is an MPLS labeled path
    B. the path via 10.0.0.2, because the next hop is learned via OSPF with an AD of 110, compared to 115 for IS-IS
    C. the path via 10.0.0.3, because it has the highest router ID
    D. the path via 10.0.0.3, because it has the lowest IGP metric

  • Question 284:

    Refer to the following descriptions, which three are true about Cisco spanning-tree features? (Choose three.)

    A. RPVST+ converges faster than RSTP during a topology change.
    B. STP BPDUs are relayed by all non-root bridges and RSTP BPDUs are generated by each bridge.
    C. RSTP can only achieve rapid transition to Forwarding on edge ports and on point-to-point links.
    D. RPVST+ and RSTP are both based upon the IEEE 802.1w specification.

  • Question 285:

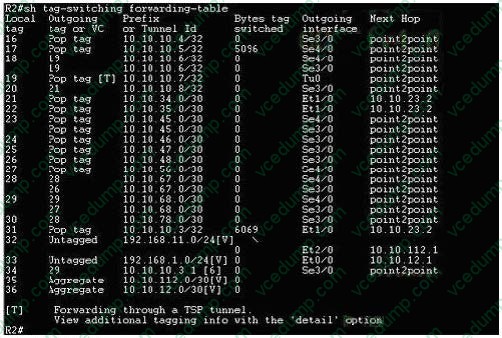

    Refer to the exhibit. According to the output of the command show tag-switching forwarding-table, which four of these statements are true? (Choose four.)

    A. Packets to the IP address 10.10.10.5/32 will be tagged with "17" toward the next hop.
    B. Label "19" will be advertised to MPLS neighbors so that they can use this label to reach the IP address 10.10.10.6/32.
    C. IP address 10.10.10.4/32 is directly connected to the neighbor router on serial 3/0.
    D. Packets arriving with label "17" will be forwarded without any label toward serial 4/0.
    E. Packets arriving with label "20" will be forwarded with label "21" after label-swapping.
    F. Label "20" is advertised to MPLS neighbors so that they can use this information to reach the prefix 10.10.10.8/32.

  • Question 286:

    When troubleshooting a network, the output of the command show interfaces indicates a large number of runts.

    What is a runt?

    A. the number of packets that are discarded because they exceed the maximum packet size of the medium
    B. errors created when the CRC generated by the originating LAN station or far-end device does not match the checksum calculated from the data received.
    C. the number of packets that are discarded because they are smaller than the minimum packet size of the medium
    D. the number of received packets that were iqnored bv the interface because the interface hardware ran low on internal buffers
    E. the number of times that the interface requested another interface within the router to slow down

  • Question 287:

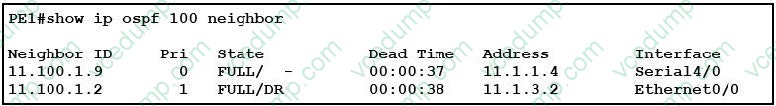

    Refer to the exhibit. Which statement is correct?

    A. Router PE1 is not the DR on interface Ethernet0/0 and interface Serial4/0 is an OSPF point-to- point link.
    B. Router PE1 is the DR on interface Ethernet0/0 and interface Serial4/0 is an OSPF point-to-point link.
    C. Router PE1 is the DR on interface Ethernet0/0 and the DR election has yet to complete on the interface Serial 4/0.
    D. Interface Ethernet0/0 does not participate in a DR/BDR election.

  • Question 288:

    Which three port states are used by RSTP 802.1w? (Choose three.)

    A. Listening
    B. Learning
    C. Forwarding
    D. Blocking E. Discarding
    F. Disabled

  • Question 289:

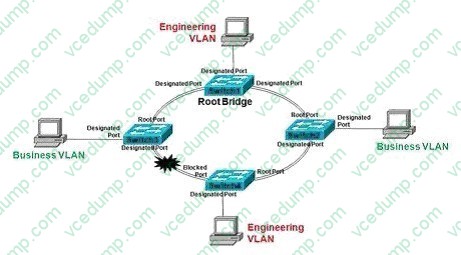

    Refer to the exhibit. Users from the Engineering VLAN complain that every time Business VLAN users have a network connectivity issue, the Engineering VLAN users usually have problems experiencing slow response or network connectivity problems. After troubleshooting, an unauthorized switch 2 was found. This unauthorized switch has been a regular problem, assuming the root bridge function under the spanning-tree domain and causing the Engineering VLAN to be unstable.

    Which three of these actions could be suggested to fix the problem?

    A. Upgrade Spanning Tree Protocol to Rapid Spanning Tree Protocol.
    B. Change Business VLAN PCs to switch 1 and switch 4.
    C. Force the root bridge to be switch 2, instead.
    D. Adjust spanning-tree timers (max-age and forward-delay).
    E. Shut down all unused ports.
    F. Use MSTP to separate the Engineering VLAN from the Business VLAN to optimize spanning- tree convergence time within each VLAN

  • Question 290:

    In an 802.1s BPDU, what is the size of the configuration revision number?

    A. 8 bits
    B. 16 bits
    C. 24 bits
    D. 32 bits
