Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 301:

  Refer to the exhibit.



  When will the Cisco IOS EEM applet be triggered?

  A. Once every day at 12:30 P.M.
  B. Once every 30 minutes
  C. Once every 12 hours and 30 minutes
  D. Once every 30 minutes on the 12th of each month
  A. Once every day at 12:30 P.M.

• Question 302:

  In BGP routing, what does the rule of synchronization mean?

  A. A BGP router can only advertise an EBGP learned route, provided that the route is an IGP route in the routing table.
  B. A BGP router can only advertise an IBGP learned route, provided that the route is an IGP route in the routing table.
  C. A BGP router can only advertise an IBGP learned route, provided that the route is an IGP route that is not in the routing table.
  D. A BGP router can only advertise an EBGP learned route, provided that the route is a metric of 0 in the BGP table.
  B. A BGP router can only advertise an IBGP learned route, provided that the route is an IGP route in the routing table.

• Question 303:

  Which value is used in the PIM TYPE field to indicate a register-stop message?

  B. 1
  C. 2
  D. 3
  C. 2

• Question 304:

  How is RPF used in multicast routing?

  A. to prevent multicast packets from looping
  B. to prevent PIM packets from looping
  C. to instruct PIM where to send a (*, G) or (S, G) join message
  D. to prevent multicast packets from looping and to instruct PIM where to send a (*, G) or (S, G) join message
  D. to prevent multicast packets from looping and to instruct PIM where to send a (*, G) or (S, G) join message

• Question 305:

  To troubleshoot network issues more accurately, milliseconds should be included in the syslog of the router.

  Which command will achieve this?

  A. service timestamps log datetimec msec
  B. logging timestamps msec
  C. syslog timestamps hour minute second miliseconds
  D. service logging timestamp msec
  E. logging service timestamp msec
  A. service timestamps log datetimec msec

• Question 306:

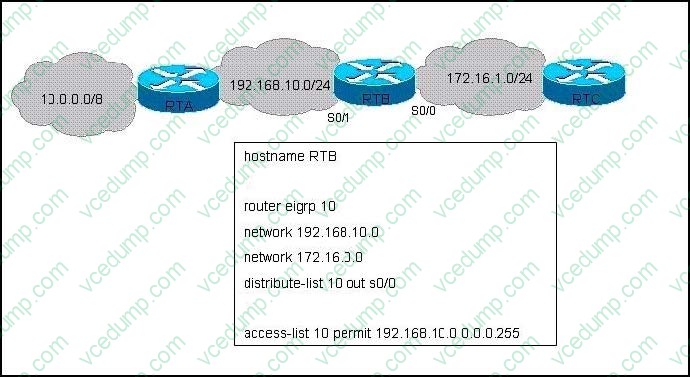

  Which description of the following is true according to the information shown in the figure?



  A. RTC will not have the 192.168.10.0 network in its routing table.
  B. RTC will not have the 10.0.0.0 network in its routing table.
  C. RTB will not have the 10.0.0.0 network in its routing table.
  D. RTB and RTC will not have the 10.0.0.0 network in their routing tables.
  B. RTC will not have the 10.0.0.0 network in its routing table.

• Question 307:

  In order to create a fully-meshed Frame Relay network with point-to-point links between 10 sites, how many links would be needed?

  A. 10
  B. 20
  C. 35
  D. 45
  E. 60
  D. 45

• Question 308:

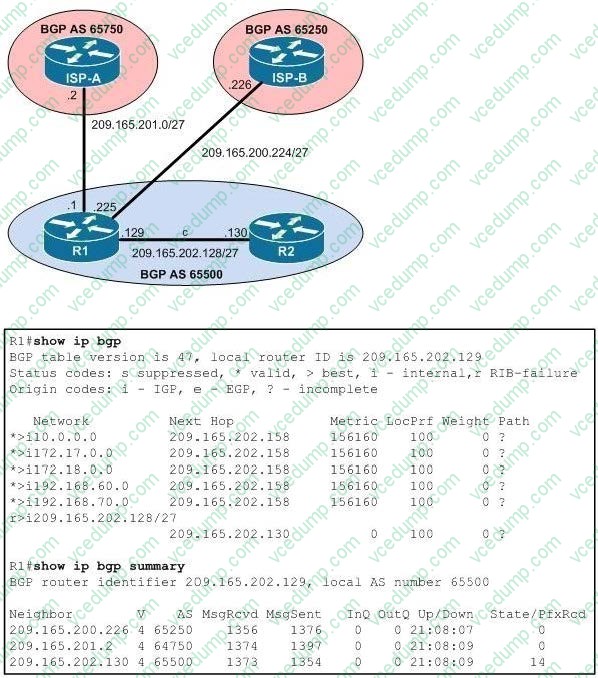

  Refer to the exhibit. All iBGP routes should have the iBGP peer as the next hop address. Why is this not the case for BGP routes learned between R1 and R2?



  A. R2 is missing the next-hop-self option under the neighbor command for R1
  B. ISP-A is missing the next-hop-self option under the neighbor command for R1
  C. ISP-B is missing the next-hop-self option under the neighbor command for R1
  D. R2, ISP-A, and ISP-B are missing the next-hop-self option under the neighbor command for R1
  A. R2 is missing the next-hop-self option under the neighbor command for R1

• Question 309:

  Under which two circumstances would an RSTP bridge flush its CAM table? (Choose two.)

  A. upon a port state change
  B. upon receiving a topology change notification
  C. when transitioning from discarding to forwarding
  D. when transitioning from forwarding to discarding
  E. only when changing from listening to discarding
  F. when CAM resources have been completely used up
  B. upon receiving a topology change notification
  C. when transitioning from discarding to forwarding

• Question 310:

  Which two statements are true about PAgP? (Choose two.)

  A. PaGP packets are sent with multicast group MAC address 01-80-c2-00-00-02.
  B. PAgP uses the same multicast group MAC address as Cisco Discovery Protocol.
  C. The PAgP protocol value is 0x0104.
  D. During detection, PAgP packets are transmitted every 2 seconds.
  B. PAgP uses the same multicast group MAC address as Cisco Discovery Protocol.
  C. The PAgP protocol value is 0x0104.
