Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 271:

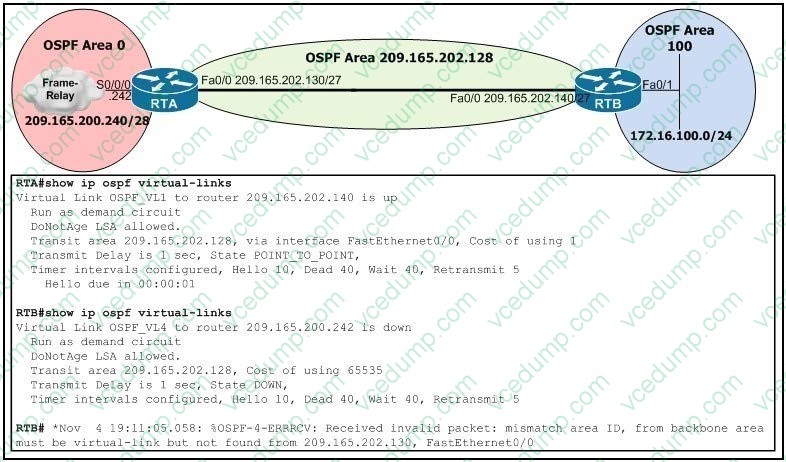

  Refer to the exhibit. An OSPF virtual link is configured between RTB and RTA. Based upon the exhibit, why is the virtual link on RTB down?



  A. The cost on each end of the OSPF virtual link must be identical.
  B. There is a unidirectional physical layer issue from RTB to RTA.
  C. The OSPF virtual link neighbor IP address on RTB is incorrect.
  D. The virtual link state on FastEthernet0/0 of RTA must be point-to-multipoint.
  C. The OSPF virtual link neighbor IP address on RTB is incorrect.

• Question 272:

  Which of these statements accurately identifies how Unicast Reverse Path Forwarding can be employed to prevent the use of malformed or forged IP sources addresses?

  A. It is applied only on the input interface of a router.
  B. It is applied only on the output interface of a router.
  C. It can be configured either on the input or output interface of a router.
  D. It cannot be configured on a router interface.
  E. It is configured under any routing protocol process.
  A. It is applied only on the input interface of a router.

• Question 273:

  What needs to be enabled for Unicast RPF?

  A. BGP
  B. OSPF
  C. CEF
  D. RIP
  C. CEF

• Question 274:

  An 802.1Q trunk is not coming up between two switches. The ports on both switches are configured as "switchport mode desirable." Assuming that there is no physical issue, choose two possible causes. (Choose two.)

  A. Incorrect VTP domain
  B. Incorrect VTP password
  C. Incorrect VTP mode
  D. Incorrect VTP configuration revision
  A. Incorrect VTP domain
  B. Incorrect VTP password

• Question 275:

  You are the network administrator of a small Layer 2 network with 50 users. Lately, users have been complaining that the network is very slow. While troubleshooting, you notice that the CAM table of your switch is full, although it supports up to 12,000 MAC addresses.

  How should you solve this issue and prevent it from happening in the future?

  A. Upgrade the switches.
  B. Configure BPDU guard.
  C. Configure VLAN access lists.
  D. Configure port security.
  E. Configure Dynamic ARP inspection.
  D. Configure port security.

• Question 276:

  Which statement is true about loop guard?

  A. Loop guard only operates on interfaces that are considered point-to-point by the spanning tree.
  B. Loop guard only operates on root ports.
  C. Loop guard only operates on designated ports.
  D. Loop guard only operates on edge ports.
  A. Loop guard only operates on interfaces that are considered point-to-point by the spanning tree.

• Question 277:

  You add the following commands into a routed topology: router eigrp 1 variance 3 traffic-share min across- interfaces. Users now complain about voice quality in your VoIP system.

  What should be done?

  A. Add the command: router eigrp 1 traffic-share voice interface fast 0/0.
  B. Reconfigure EIGRP to recognize voice packets.
  C. Remove the variance from the configuration.
  D. Reconfigure the VoIP system to use RTP sequence number headers.
  E. Use an H.323 gatekeeper for your VoIP system to negotiate an H.245 uneven packet buffer.
  F. Reconfigure EIGRP to version 2.
  C. Remove the variance from the configuration.

• Question 278:

  Which two are differences between IGMPv2 and IGMPv3 reports? (Choose two.)

  A. IGMPv3 adds the ability to include or exclude source lists.
  B. All IGMPv2 hosts send reports to destination address 224.0.0.22.
  C. Only IGMPv3 reports may contain multiple group state records.
  D. All IGMPv3 hosts send reports to destination address 224.0.0.23.
  E. IGMPv2 does not support the Leave Group message.
  A. IGMPv3 adds the ability to include or exclude source lists.
  C. Only IGMPv3 reports may contain multiple group state records.

• Question 279:

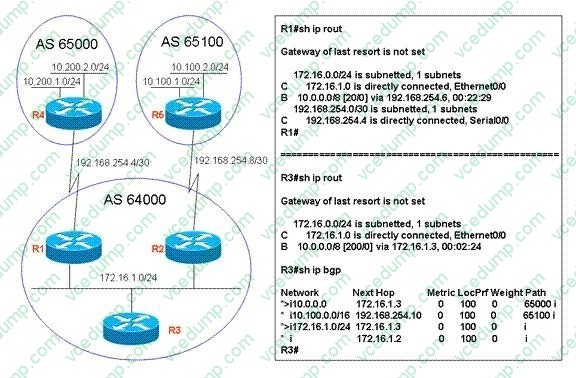

  Refer to the exhibit. Packets from hosts attached to R3 and destined for network 10.100.2.0 are being sent to R4 via R1. Which of these is a solution to the problem?



  A. Set the update source on R3 to R5.
  B. Set the next-hop-self command on R2 for neighbor R3.
  C. Enable EBGP multihop between R2 and R3.
  D. Set R3 to advertise its specific 24 bit 10.x.x.x routes to R1.
  E. Increase the weight parameter for the 10.100.0.0 route on R3.
  B. Set the next-hop-self command on R2 for neighbor R3.

• Question 280:

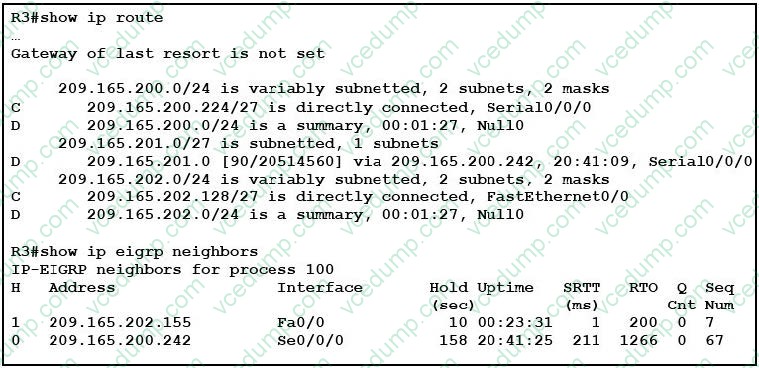

  Refer to the exhibit. What can be done to remove the summary routes to Null0 on R3?



  A. Configure the EIGRP routing subcommand no auto-summary on 209.165.202.155.
  B. Configure the EIGRP routing subcommand no auto-summary on 209.165.202.24.
  C. Configure the EIGRP routing subcommand no auto-summary on both 209.165.202.155 and 209.165.202.242.
  D. Configure the EIGRP routing subcommand no auto-summary on R3.
  D. Configure the EIGRP routing subcommand no auto-summary on R3.
