Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 221:

  Though many options are supported in EIGRPv6, select two options from the below list that are supported. (Choose Two)

  A. VRF
  B. auto-summary
  C. per-interface configuration
  D. prefix-list support via route-map
  E. prefix-list support via distribute-list
  C. per-interface configuration
  E. prefix-list support via distribute-list

• Question 222:

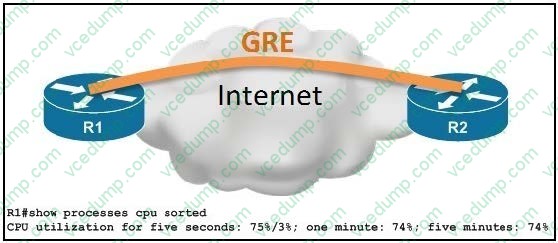

  Refer to the exhibit. A GRE tunnel between R1 and R2 has been configured over an Internet connection. As soon as traffic is sent over the tunnel, high CPU utilization is observed on R1. Reducing the traffic shows a reduction in CPU utilization.

  What could be a possible cause for the high CPU utilization?



  A. The BGP process is processing the complete Internet routing table.
  B. An MTU issue causes GRE packets to be fragmented.
  C. A GRE-based DDoS attack is overloading the router control plane.
  D. All GRE packets are always process switched.
  B. An MTU issue causes GRE packets to be fragmented.

• Question 223:

  In order to maintain security, with which hop count are IPv6 neighbor discovery packets sent?

  B. 1
  C. 255
  D. 256
  C. 255

• Question 224:

  Refer to the exhibit. R4 is configured as an OSPF stub; however, R4 should still be learning the OSPF LSA type 3 interarea routes from 209.165.202.130. Which action will solve this issue?



  A. Remove any route maps from R4 that are filtering the incoming OSPF updates.
  B. Enable sending summary LSA's by removing no-summary from the stub command on the ABR.
  C. Enable sending summary LSA's by removing no-summary from the stub command on the ASBR.
  D. Control of interarea route propagation is best handled with EIGRP.
  B. Enable sending summary LSA's by removing no-summary from the stub command on the ABR.

• Question 225:

  Which two Cisco IOS features can be used to defend against spoofing attacks? (Choose two.)

  A. auth-proxy
  B. lock-and-key ACL
  C. IP Source Guard
  D. TCP Intercept
  E. CAR
  F. uRPF
  G. reflexive ACL
  C. IP Source Guard
  F. uRPF

• Question 226:

  On which port type would you configure STP PortFast BPDU guard?

  A. root ports
  B. designated ports
  C. host ports
  D. alternate ports
  C. host ports

• Question 227:

  Which three options are features of VTP version 3? (Choose three.)

  A. VTPv3 supports 8K VLANs.
  B. VTPv3 supports private VLAN mapping.
  C. VTPv3 allows for domain discovery.
  D. VTPv3 uses a primary server concept to avoid configuration revision issues.
  E. VTPv3 is not compatible with VTPv1 or VTPv2.
  F. VTPv3 has a hidden password option.
  B. VTPv3 supports private VLAN mapping.
  D. VTPv3 uses a primary server concept to avoid configuration revision issues.
  F. VTPv3 has a hidden password option.

• Question 228:

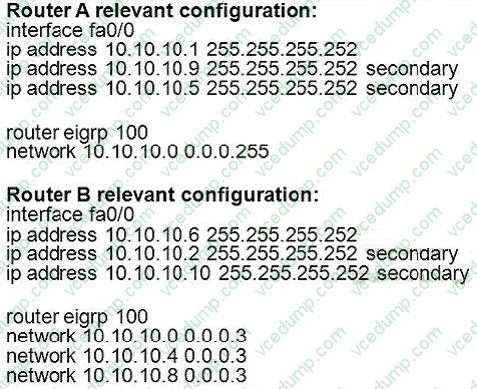

  Refer to the exhibit. Routers A and B are directly connected and running EIGRP, but they are unable to form a neighbor relationship.

  What is the most likely cause?



  A. The network statements are misconfigured.
  B. The IP address statements are misconfigured
  C. The autonomous system is misconfigured.
  D. There is a physical issue with the cable.
  B. The IP address statements are misconfigured

• Question 229:

  Refer to the exhibit. In this network, R1, R2, and R3 are all configured to run EIGRP on all their connected interfaces. R2 is also configured as an EIGRP stub. At R3, what EIGRP routes are in the local topology table?



  A. 172.30.0.0/16
  B. 172.30.2.0/24
  C. 172.20.1.0/24 and 172.30.2.0/24
  D. Not enough information has been provided to know what would be in the topology table at R3.
  B. 172.30.2.0/24

• Question 230:

  You are configuring the Cisco IOS DHCP Server to handle DHCP in a LAN.

  Which two of these configurations are required in order for DHCP to work? (Choose two.)

  A. configure manual bindings
  B. configure a DHCP address pool
  C. configure a DHCP server boot file
  D. exclude those IP addresses that will not be used in DHCP
  E. configure the timeout value for ping packets
  B. configure a DHCP address pool
  D. exclude those IP addresses that will not be used in DHCP
