Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 231:

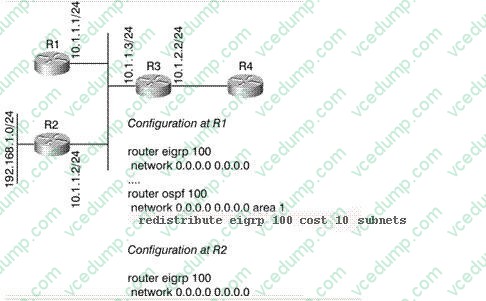

  On the basis of the network provided in the exhibit, R3 and R4 are configured to run all connected links in OSPF Area 1. The network administrator is complaining that traffic destined to 192.168.1.0/24 is being routed to R2, even if R2 is not running OSPF.

  Which would be the cause of this problem?



  A. The next hop towards 192.168.1.0/24 at R4 should be 10.1.1.2, which is R2.
  B. The next hop towards 192.168.1.0/24 at R4 should be 10.1.1.1, since R1 is redistributing the route from EIGRP into OSPF. R3 is forwarding traffic incorrectly.
  C. The next hop towards 192.168.1.0/24 at R4 should be 10.1.2.2, which is R3. R3 should be load-sharing between R1 and R2 for its next hop.
  D. R4 does not have a route towards 192.168.1.0/24, so the network administrator is wrong in thinking any traffic is being forwarded there.
  A. The next hop towards 192.168.1.0/24 at R4 should be 10.1.1.2, which is R2.

• Question 232:

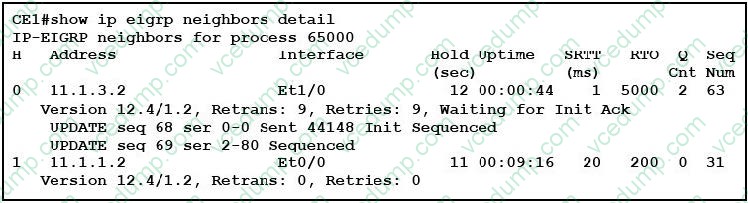

  Refer to the exhibit. What will happen?



  A. EIGRP keeps on retransmitting the reliable EIGRP packets forever.
  B. EIGRP will retransmit the reliable EIGRP packets up to 16 times and then delete the related prefixes.
  C. EIGRP will retransmit the reliable EIGRP packets up to 16 times and then reset the EIGRP neighbor 11.1.3.2.
  D. The EIGRP neighbor 11.1.3.2 goes down when the hold time reaches 0, which is 12 seconds from now.
  C. EIGRP will retransmit the reliable EIGRP packets up to 16 times and then reset the EIGRP neighbor 11.1.3.2.

• Question 233:

  Which protocol and port have been assigned by IANA for RADIUS authentication?

  A. UDP/1812
  B. UDP/1813
  C. TCP/1812
  D. TCP/1813
  A. UDP/1812

• Question 234:

  In your Cisco EIGRP network, you notice that the neighbor relationship between two of your routers was recently restarted. Which two of these choices could have made this occur? (Choose two.)

  A. An update packet with init flag set from a known, already established neighbor relationship was received by one of the routers.
  B. The ARP cache was cleared.
  C. The counters were cleared.
  D. The IP EIGRP neighbor relationship was cleared manually.
  A. An update packet with init flag set from a known, already established neighbor relationship was received by one of the routers.
  D. The IP EIGRP neighbor relationship was cleared manually.

• Question 235:

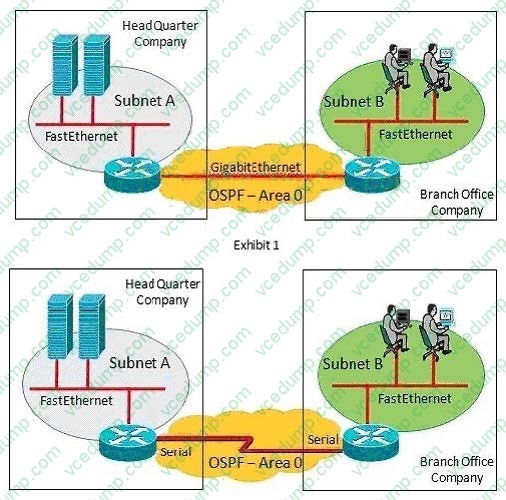

  Refer to exhibits 1 and 2. A company uses a Metro Ethernet (Gigabit Ethernet) dedicated circuit to communicate between users (subnet B) and servers (subnet A) as shown in Exhibit 1. Both routers use OSPF to advertise the subnets. During a weekly management meeting, they realize that the WAN link is oversize. They have been using only 2 Mb/s in the worst-case scenario. So they propose a new, cheaper WAN connection using a 2-Mb/s Frame-Relay point-to-point link to interconnect both sites (Exhibit 2). The Frame Relay service provider informs them that multicast traffic is not allowed to run over the service provider network.

  Which one of these options is best to enable the company to establish the OSPF neighbor adjacency?



  A. Use OSPF network broadcast, because it uses unicast to establish a neighbor relationship.
  B. Use OSPF network point-to-multipoint, because it uses unicast to establish a neighbor relationship.
  C. Use OSPF network point-to-point, because it uses unicast to establish a neighbor relationship.
  D. Use OSPF network point-to-multipoint nonbroadcast, because it establishes a neighbor relationship using unicast packets.
  E. Use OSPF network nonbroadcast, because it establishes a neighbor relationship using multicast.
  D. Use OSPF network point-to-multipoint nonbroadcast, because it establishes a neighbor relationship using unicast packets.

• Question 236:

  Which IGMPv2 message contains a non-zero "Max Response Time"?

  A. Membership Query
  B. Membership Report
  C. Membership Delay
  D. Backward Compatible IGMPv1 Report Message
  A. Membership Query

• Question 237:

  Refer to the exhibit. On what will the class-map VOICE match?



  A. only UDP traffic between port ranges 16384 and 32787
  B. only DSCP EF traffic
  C. both UDP traffic between port ranges 16384 and 32787 and DSCP EF traffic
  D. only EF traffic that is UDP and is within the UDP range 16384-32787
  D. only EF traffic that is UDP and is within the UDP range 16384-32787

• Question 238:

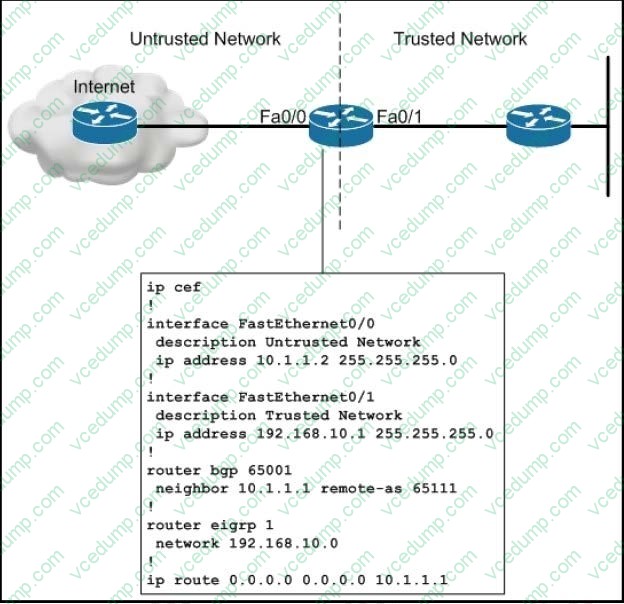

  Refer to the exhibit Where should uRPF be configured to protect the trusted network against internet-based IP spoofing and in which direction will inspection happen?



  A. uRPF should be applied to interface Fa0/0 and it will inspect inbound packets.
  B. uRPF should be applied to interface Fa0/0 and it will inspect outbound packets.
  C. uRPF should be applied to interface Fa0/1 and it will inspect inbound packets.
  D. uRPF should be applied to interface Fa0/1 and it will inspect outbound packets.
  A. uRPF should be applied to interface Fa0/0 and it will inspect inbound packets.

• Question 239:

  Which two attributes need to match for two switches to become members of the same MST region? (Choose two.)

  A. the table of 4096 elements that map the respective VLAN to STP instance number
  B. VTP version
  C. configuration revision number
  D. native VLAN ID
  A. the table of 4096 elements that map the respective VLAN to STP instance number
  C. configuration revision number

• Question 240:

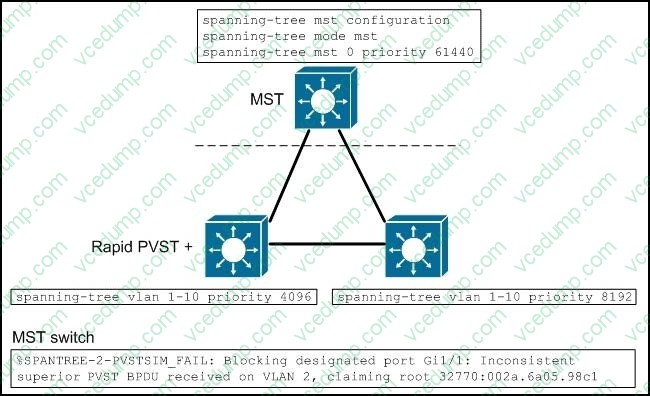

  Refer to the exhibit.



  What is causing the error to occur on the MST switch?

  A. When a PVST+ switch is connected to an MST switch, the IST root (MST0) needs to be the root for all PVST+ spanning trees.
  B. When a PVST+ switch is connected to an MST switch, interaction between MST and PVST+ is not supported
  C. When a PVST+ switch is connected to an MST switch, root guard should be disabled on a per-port basis.
  D. When a PVST+ switch is connected to an MST switch, the PVST+ switch must be the root for all MST instances.
  A. When a PVST+ switch is connected to an MST switch, the IST root (MST0) needs to be the root for all PVST+ spanning trees.
