Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 241:

  Which statement correctly describes the disabling of IP TTL propagation in an MPLS network?

  A. The TTL field from the IP packet is copied into the TTL field of the MPLS label header at the ingress edge LSR.
  B. TTL propagation cannot be disabled in an MPLS domain.
  C. TTL propagation is only disabled on the ingress edge LSR.
  D. The TTL field of the MPLS label header is set to 255.
  E. The TTL field of the IP packet is set to 0.
  D. The TTL field of the MPLS label header is set to 255.

• Question 242:

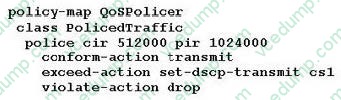

  Refer to the exhibit. Based on this configuration, what type of marker is achieved?



  A. Single-rate, two-color marker
  B. Three-rate, two-color marker
  C. Two-rate, three-color marker
  D. Single-rate, three-color marker
  C. Two-rate, three-color marker

• Question 243:

  When a BGP router is not capable of understanding 4-byte AS numbers, it will see 4-byte AS numbers as a special, reserved, 2-byte AS number in the AS path. Which 2-byte AS number is this reserved one?

  A. 00000
  B. 12345
  C. 23456
  D. 65000
  E. 99999
  C. 23456

• Question 244:

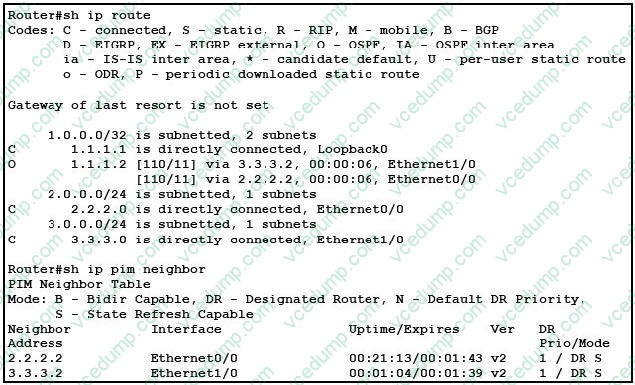

  Refer to the exhibit. Which interface(s) will show ip rpf 1.1.1.2 indicate as RPF interface(s)?



  A. Ethernet 1/0
  B. Ethernet 0/0
  C. Both Ethernet 0/0 and Ethernet 1/0
  D. RPF will fail
  A. Ethernet 1/0

• Question 245:

  Which two statements are true about traffic shaping? (Choose two.)

  A. Out-of-profile packets are queued.
  B. It causes TCP retransmits.
  C. Marking/remarking is not supported.
  D. It does not respond to BECN and ForeSight Messages.
  E. It uses a single/two-bucket mechanism for metering.
  A. Out-of-profile packets are queued.
  C. Marking/remarking is not supported.

• Question 246:

  Two routers configured to run BGP have been connected to a firewall, one on the inside interface and one on the outside interface. BGP has been configured so the two routers should peer, including the correct BGP session endpoint addresses and the correct BGP session hop-count limit (EBGP multihop).

  What is a good first test to see if BGP will work across the firewall?

  A. Attempt to TELNET from the router connected to the inside of the firewall to the router connected to the outside of the firewall. If telnet works, BGP will work, since telnet and BGP both use TCP to transport data.
  B. Ping from the router connected to the inside interface of the firewall to the router connected to the outside interface of the firewall. If you can ping between them, BGP should work, since BGP uses IP to transport packets.
  C. There is no way to make BGP work across a firewall without special configuration, so there is no simple test that will show you if BGP will work or not, other than trying to start the peering session.
  D. There is no way to make BGP work across a firewall.
  C. There is no way to make BGP work across a firewall without special configuration, so there is no simple test that will show you if BGP will work or not, other than trying to start the peering session.

• Question 247:

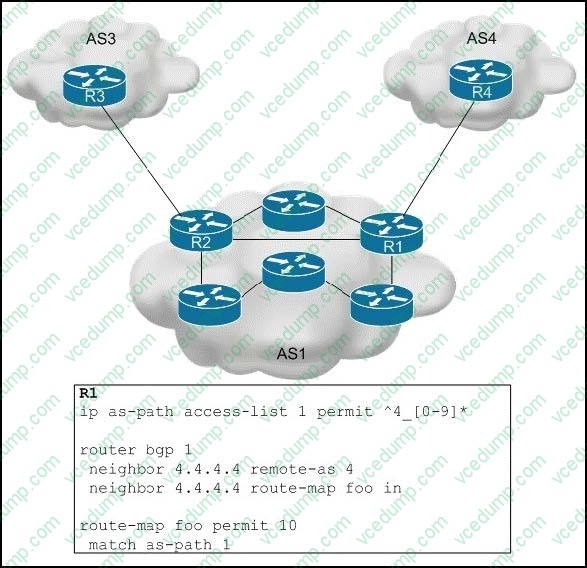

  Refer to the exhibit



  Refer to the exhibit.

  You want to set up an AS path filter that allows networks that originated from AS4, and autonomous systems that are directly attached to AS4, to enter R1. When you tested the filter, you noticed that something was wrong with it.

  How can this be solved?

  A. Change the regular expressing to ^4_0-9*$.
  B. Change the regular expression to ^4_0-9+$.
  C. Change the regular expression to ^4_0-9.*.
  D. Change the regular expression to ^4_0-9.$.
  A. Change the regular expressing to ^4_0-9*$.

• Question 248:

  Which of these statements best describes the major difference between an IPv4-compatible tunnel and a 6to4 tunnel?

  A. An IPv4-compatible tunnel is a static tunnel, but an 6to4 tunnel is a semiautomatic tunnel.
  B. The deployment of a IPv4-compatible tunnel requires a special code on the edge routers, but a 6to4 tunnel does not require any special code.
  C. An IPv4-compatible tunnel is typically used only between two IPv6 domains, but a 6to4 tunnel is used to connect to connect two or more IPv6 domains.
  D. For an IPv4-compatible tunnel, the ISP assigns only IPv4 addresses for each domain, but for a 6to4 tunnel, the ISP assigns only IPv6 addresses for each domain.
  C. An IPv4-compatible tunnel is typically used only between two IPv6 domains, but a 6to4 tunnel is used to connect to connect two or more IPv6 domains.

• Question 249:

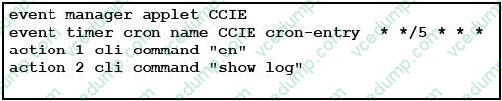

  Refer to the exhibit. Which result will the EEM applet in the exhibit produce?



  A. The output of show version will be executed every 5 hours.
  B. The output of show log will be executed every 5 hours.
  C. The output of show log will be executed every Friday.
  D. The output of show log will be executed every 5 minutes.
  B. The output of show log will be executed every 5 hours.

• Question 250:

  In which two spanning-tree port states is the port learning MAC addresses? (Choose two.)

  A. disabled
  B. blocking
  C. listening
  D. learning
  E. forwarding
  D. learning
  E. forwarding
