Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 201:

  Which mechanism can you use to achieve sub-second failover for link failure detection when a switched Ethernet media is used and loss of signal is not supported by the link provider?

  A. OSPF standard hellos
  B. Cisco Discovery Protocol link detection
  C. Bidirectional Forwarding Detection
  D. Fast Link Pulse
  E. autonegotiation
  C. Bidirectional Forwarding Detection

• Question 202:

  What does Cisco recommend when you are enabling Cisco IOS IPS?

  A. Do not enable all the signatures at the same time.
  B. Do not enable the ICMP signature.
  C. Disable the Zone-Based Policy Firewall because it is not compatible with Cisco IOS IPS.
  D. Disable CEF because it is not compatible with Cisco IOS IPS.
  A. Do not enable all the signatures at the same time.

• Question 203:

  A branch router is configured with an egress QoS policy that was designed for a total number of 10 concurrent VOIP calls. Due to expansion, 15 VOIP calls are now running over the link, but after the 14th call was established, all calls were affected and the voice quality was dramatically degraded.

  Assuming that there is enough bandwidth on the link for all of this traffic, which part of the QoS configuration should be updated due to the new traffic profile?

  A. Increase the shaping rate for the priority queue.
  B. Remove the policer applied on the priority queue.
  C. Remove the shaper applied on the priority queue.
  D. Increase the policing rate for the priority queue.
  D. Increase the policing rate for the priority queue.

• Question 204:

  What does the OSPF command capability vrf-lite achieve?

  A. It enables provider edge (PE) specific checks on a router when the OSPF process is associated with the VRF.
  B. It disables provider edge (PE) specific checks on a router when the OSPF process is associated with the VRF.
  C. It enables the exchange of the "VRF-Lite" capability when the OSPF adjacency is formed.
  D. It disables the MPLS processing on the OSPF learned routes inside the VRF.
  B. It disables provider edge (PE) specific checks on a router when the OSPF process is associated with the VRF.

• Question 205:

  Which three combinations are valid LACP configurations that will set up a channel? (Choose three.)

  A. On/On
  B. On/Auto
  C. Passive/Active
  D. Desirable/Auto
  E. Active/Active
  F. Desirable/Desirable
  A. On/On
  C. Passive/Active
  E. Active/Active

• Question 206:

  Which action has the same effect as disabling spanning tree on a single switch port?

  A. enable the PortFast feature on the interface
  B. enable the BPDU guard feature on the interface?
  C. enable the BPDU filter feature on the interface?
  D. enable loop guard on the interface
  C. enable the BPDU filter feature on the interface?

• Question 207:

  Which two are IPv6 neighbor discovery packets? (Choose two.)

  A. Neighbor Solicitation
  B. Anycast Solicitation
  C. Anycast Advertisement
  D. Router Advertisement
  A. Neighbor Solicitation
  D. Router Advertisement

• Question 208:

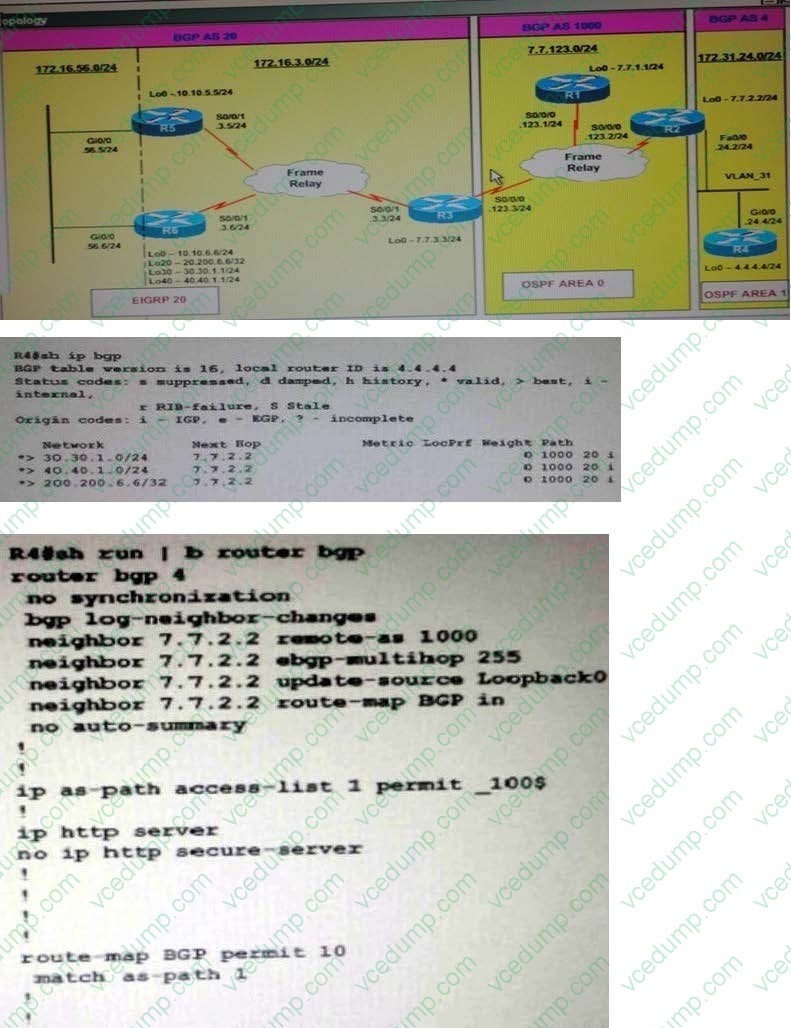

  Refer to the exhibit. What effect will the as-path filter command that is configured on R4 create BGP routing table?



  A. It will have all three routes on the R4 BGP routing table
  B. It will have none of the three routes on the R4 BGP routing table.
  C. It will have only the route 30.30.1.0/24.
  D. It will have routes 40.40.1.0/24 and 200.200.6.6/32.
  E. It will have routes 30.30.1.0/24 and 200.200.6.6/32.
  F. It will have routes 30.30.1.0/24 and 40.40.1.0/24.
  B. It will have none of the three routes on the R4 BGP routing table.

• Question 209:

  Which of these statements correctly describes traffic policing?

  A. It allows for the provision of low latency on congested interfaces.
  B. It is mandatory when enabling NBAR and CBWFQ.
  C. It allows for the metering and limitation of bandwidth utilization.
  D. It is also referred to as 'buffer tuning,' and is an optimal way to manage router I/O memory.
  E. It should be configured on every router to avoid memory corruption.
  C. It allows for the metering and limitation of bandwidth utilization.

• Question 210:

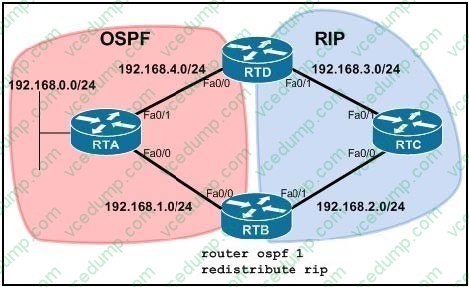

  Refer to the exhibit. Router RTB is performing one-way redistribution from RIP to OSPF.

  Which outgoing interface will router RTD choose for packets to the 192.168.0.0/24 network, and why?



  A. Fa0/1, because OSPF is a link-state routing protocol
  B. Fa0/0, because RIP is a distance vector protocol
  C. Fa0/0, because RIP has a higher administrative distance
  D. Fa0/0, because OSPF has a lower administrative distance
  E. Fa0/1, because OSPF has a lower administrative distance
  F. Fa0/1, because RIP has a lower administrative distance
  D. Fa0/0, because OSPF has a lower administrative distance
