Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 191:

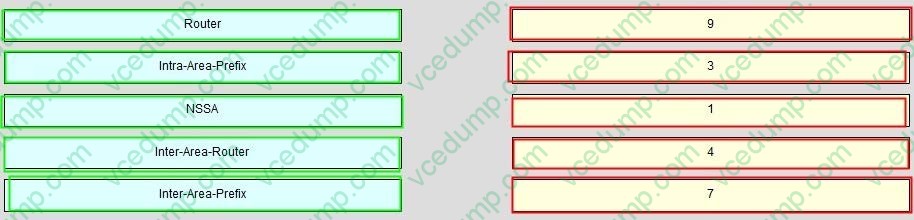

  Drag the OSPFv3 LSA type on the left to the correct function code on the right.

  Select and Place:





• Question 192:

  If a port configured with STP root guard receives a superior STP BPDU, the port will be put into which state?

  A. root-inconsistent state
  B. forwarding state
  C. blocking state
  D. errdisabled state
  A. root-inconsistent state

• Question 193:

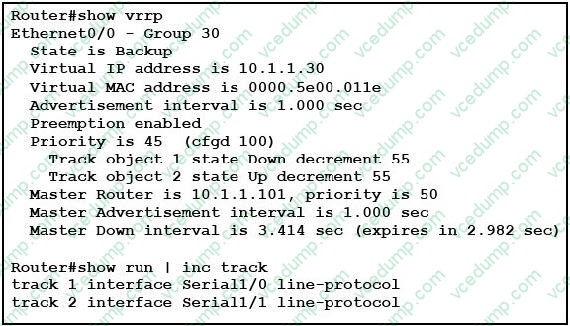

  Refer to the exhibit. Which action would make the router the active VRRP router?



  A. Recover interface Serial 1/0.
  B. Increase priority in the configuration to 100.
  C. Change the interface tracking priority to 100.
  D. Recover interface Serial 1/1.
  A. Recover interface Serial 1/0.

• Question 194:

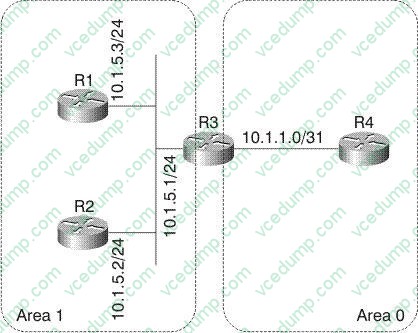

  Based on the network provided in the exhibit, in these two areas, all routers are performing OSPF on all interfaces. After examining the OSPF database on R4, do you know which type of LSA will contain 10.1.5.0/24, and which router will have originated it?



  A. 10.1.5.0/24 will be in a summary (type 3) LSA originated by R3.
  B. 10.1.5.0/24 will be in a router (type 1) LSA generated by R3.
  C. 10.1.5.0/24 will be in a network (type 2) LSA originated by R3.
  D. 10.1.5.0/24 will not be in any LSA in the OSPF database at R4, because R4 and R3 are in different areas.
  A. 10.1.5.0/24 will be in a summary (type 3) LSA originated by R3.

• Question 195:

  Study the exhibit carefully. Two directly connected routers are configured with OSPF. The output presented in the exhibit can be seen on the console of one router. What most likely cause this problem?



  A. The maximum transmission unit on either side of the link is not the same
  B. This debug is wrong, OSPF does not exchange DBD packets
  C. This is normal for OSPF running over an FDDI ring
  D. OSPF has received a packet that will not fit in its local buffer, so the packet has been discarded.
  A. The maximum transmission unit on either side of the link is not the same

• Question 196:

  Refer to the exhibit. Which two statements are correct? (Choose two.)



  A. The packet is received on the private interface.
  B. Zone-Based Firewall is configured on the router.
  C. Logging is enabled for the access list.
  D. Private is an identification of that ACE.
  E. The Telnet connection is successfully set up.
  C. Logging is enabled for the access list.
  D. Private is an identification of that ACE.

• Question 197:

  Two directly connected routers, R1 and R2, are both configured for OSPF graceful restart. R2 is able to switch packets in hardware, but R1 is not. If a network administrator logs on to R2 and performs a system reload, which will be the result?

  A. Traffic forwarded from R2 to or through R1 will continue to be forwarded based on the forwarding table state at the time of the reload.
  B. R2 will continue to forward traffic to R1, but R1 will drop the traffic because its neighbor adjacency with R2 has failed.
  C. R2 will continue forwarding traffic to and through R1, but R1 will drop this traffic because it is not capable of maintaining its forwarding state.
  D. All the traffic R2 is forwarding to or through R1 will be dropped while OSPF rebuilds its neighbor adjacency and forwarding tables.
  A. Traffic forwarded from R2 to or through R1 will continue to be forwarded based on the forwarding table state at the time of the reload.

• Question 198:

  Which three of these are reasons to implement a DMVPN using both IPsec and GRE for remote site connectivity? (Choose three.)

  A. Less configuration needed at the hub site
  B. Support for dynamically addressed (DHCP) spoke routers
  C. Support for dynamically addressed (DHCP) hub routers
  D. Dynamic spoke-to-spoke tunneling
  E. Support for Dynamic Spoke Control Protocol
  F. Less configuration needed at the spoke sites
  A. Less configuration needed at the hub site
  B. Support for dynamically addressed (DHCP) spoke routers
  D. Dynamic spoke-to-spoke tunneling

• Question 199:

  Which OSPF LSA type does an ASBR use to originate a default route into an area?

  A. LSA1
  B. LSA3
  C. LSA4
  D. LSA 5
  E. LSA7
  D. LSA 5

• Question 200:

  For the following LMI types, which three can be configured for use with Frame Relay on a Cisco router? (Choose three.)

  A. Cisco
  B. ANSI - Annex D
  C. Q.931 - Annex B
  D. Q.933 - Annex A
  A. Cisco
  B. ANSI - Annex D
  D. Q.933 - Annex A
