Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 151:

  Which individual metrics can be used to calculate the composite EIGRP metric?

  A. total delay, minimum bandwidth, reliability, load, MTU
  B. total delay, minimum bandwidth, reliability, load, MTU, hop count
  C. total delay, minimum bandwidth, reliability, load, hop count
  D. total delay, minimum bandwidth, reliability, load
  E. total delay, minimum bandwidth
  D. total delay, minimum bandwidth, reliability, load

• Question 152:

  Which two options are contained in a VTP subset advertisement? (Choose two.)

  A. followers field
  B. MD5 digest
  C. VLAN information
  D. sequence number
  C. VLAN information
  D. sequence number

• Question 153:

  Select and Place:





• Question 154:

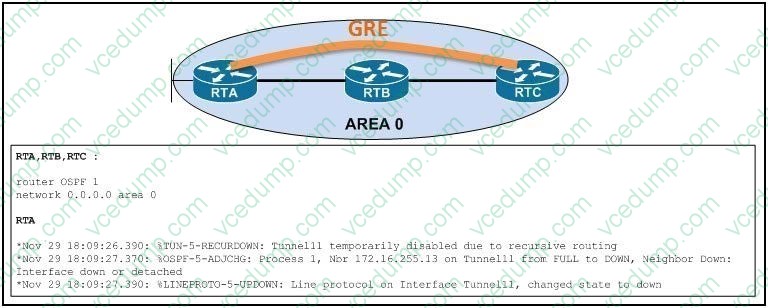

  Refer to the exhibit. As soon as the OSPF neighbors are established across the GRE tunnel between RTA and RTC, the GRE tunnel immediately goes down/down. What could be a possible cause?



  A. The route to the tunnel destination is preferred via the tunnel.
  B. Autosummary is not configured.
  C. GRE tunnels cannot be in area 0.
  D. A misconfigured access list is on the router C tunnel interface.
  E. A misconfigured access list is on the router A tunnel interface.
  A. The route to the tunnel destination is preferred via the tunnel.

• Question 155:

  Refer to the exhibit. What problem does the debug ip ospf event output from R3 indicate?



  A. 209.165.202.140 and R3 are not both configured as OSPF stubs.
  B. 209.165.202.140 and R3 are not configured in the same OSPF area.
  C. 209.165.202.140 is configured as a no-summary stub.
  D. Transit area OSPF hello packets are not processed by design.
  A. 209.165.202.140 and R3 are not both configured as OSPF stubs.

• Question 156:

  Which Cisco IOS feature can be used to defend against spoofing attacks?

  A. Cisco IOS Firewall (CBAC)
  B. lock-and-key ACL and/or reflexive ACL
  C. IP Source Guard and/or Unicast RPF
  D. TCP Intercept
  E. Cisco IOS IPS
  F. Auth-Proxy
  C. IP Source Guard and/or Unicast RPF

• Question 157:

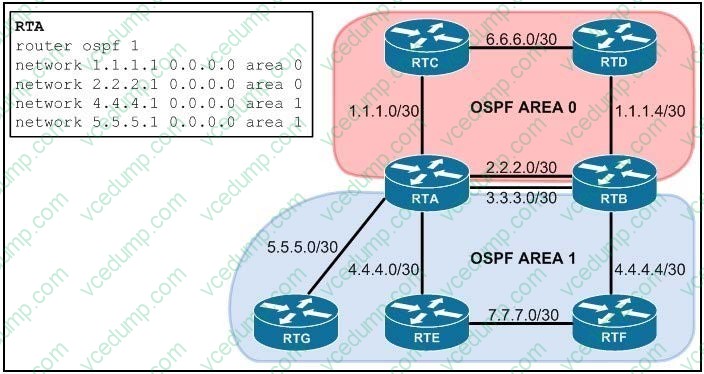

  Refer to the exhibit. What will happen if the link between RTA and RTE fails?



  A. Area 1 will be split into two between RTB-RTF-RTE and RTG-RTA, so these separate areas will not be able to communicate with each other.
  B. Area 1 will be split into two between RTB-RTF-RTE and RTG-RTA, and to avoid communication issues a virtual link between RTA and RTB needs to be configured.
  C. Area 1 will be split into two between RTB-RTF-RTE and RTG-RTA, and duplicate LSAs from Area 1 will flood OSPF Area 0.
  D. Area 1 will be split into two between RTB-RTF-RTE and RTG-RTA, and OSPF will work just fine.
  D. Area 1 will be split into two between RTB-RTF-RTE and RTG-RTA, and OSPF will work just fine.

• Question 158:

  What are two ways to force the selection of a root bridge in a network that is running the 802.1D protocol? (Choose two.)

  A. spanning tree vlan all root
  B. spanning-tree vlan vlan-id priority 65535
  C. spanning-tree vlan vlan-id root
  D. spanning-tree vlan vlan-id priority 0
  E. spanning-tree vlan vlan-id force root
  C. spanning-tree vlan vlan-id root
  D. spanning-tree vlan vlan-id priority 0

• Question 159:

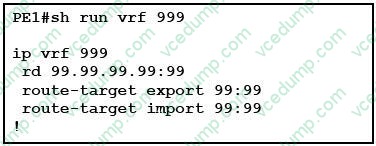

  Refer to the exhibit. Which statement is correct about this configuration?



  A. This is not a legal configuration.
  B. The RD is a type 0 RD.
  C. The RD is a type 1 RD.
  D. The RD is a type 2 RD.
  E. This is a special RD that is used only for management VRFs.
  C. The RD is a type 1 RD.

• Question 160:

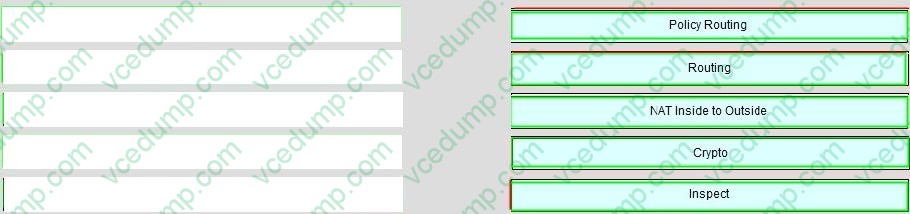

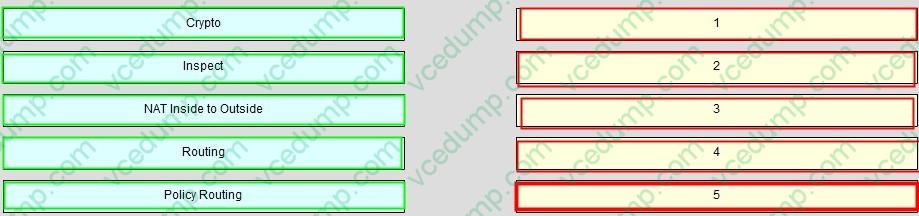

  Drag the actions on the left to the correct order on the right when doing inside to outside NAT translation.

  Select and Place:
