Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 171:

  Which of these statements about anycast RPs is correct?

  A. Anycast RPs cannot be used in conjunction with Auto-RPs.
  B. After a failure of one of the anycast RPs, the PIM network will reconverge on the remaining anycast RP or RPs in less than one second.
  C. After a failure of one of the anycast RPs, the PIM network will reconverge on the remaining anycast RP or RPs in roughly the same time that it takes unicast routing to reconverge.
  D. The anycast RPs must reside within the same IGP domain.
  C. After a failure of one of the anycast RPs, the PIM network will reconverge on the remaining anycast RP or RPs in roughly the same time that it takes unicast routing to reconverge.

• Question 172:

  The classic Spanning Tree Protocol (802.1 D 1998) uses which sequence of variables to determine the best received BPDU?

  A. 1) lowest root bridge id, 2) lowest sender bridge id, 3) lowest port id, 4) lowest root path cost
  B. 1) lowest root path cost, 2) lowest root bridge id, 3) lowest sender bridge id, 4) lowest sender port id
  C. 1) lowest root bridge id, 2) lowest sender bridge id, 3) lowest root path cost 4) lowest sender port id
  D. 1) lowest root bridge id, 2) lowest root path cost, 3) lowest sender bridge id, 4) lowest sender port id
  D. 1) lowest root bridge id, 2) lowest root path cost, 3) lowest sender bridge id, 4) lowest sender port id

• Question 173:

  Which three protocols should be explicitly managed by using Control Plane Policing on an Internet border router? (Choose three.)

  A. LDAP
  B. ICMP
  C. RTP
  D. BGP
  E. SSH
  F. RDP
  B. ICMP
  D. BGP
  E. SSH

• Question 174:

  You are using IPv6, and would like to configure EIGRPv3.

  Which three of these correctly describe how you can perform this configuration? (Choose three.)

  A. EIGRP for IPv6 is directly configured on the interfaces over which it runs.
  B. EIGRP for IPv6 is not configured on the interfaces over which it runs, but if a user uses passive- interface configuration, EIGRP for IPv6 needs to be configured on the interface that is made passive.
  C. There is a network statement configuration in EIGRP for IPv6, the same as for IPv4.
  D. There is no network statement configuration in EIGRP for IPv6.
  E. When a user uses a passive-interface configuration, EIGRP for IPv6 does not need to be configured on the interface that is made passive.
  F. When a user uses a non-passive-interface configuration, EIGRP for IPv6 does not need to be configured on the interface that is made passive.
  A. EIGRP for IPv6 is directly configured on the interfaces over which it runs.
  D. There is no network statement configuration in EIGRP for IPv6.
  E. When a user uses a passive-interface configuration, EIGRP for IPv6 does not need to be configured on the interface that is made passive.

• Question 175:

  Which QoS mechanism will rate-limit traffic, and limit drops by implementing queuing?

  A. Shaper
  B. Policer
  C. WRED
  D. Rate-Limit
  E. LLQ
  F. Fair-Queue
  A. Shaper

• Question 176:

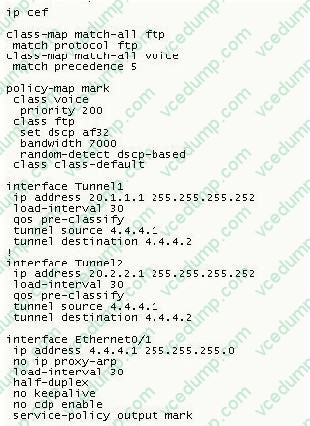

  Refer to the exhibit. You would like to guarantee 7 Mb/s for FTP traffic in your LAN, as it seems that peer- to-peer traffic is taking up a large amount of bandwidth. When testing the configuration, you notice that FTP traffic doesnl reach 7 Mb/

  s.

  What is the problem?



  A. The Ethernet interface should have keepalives enabled.
  B. The duplex settings are wrong on the Ethernet interface.
  C. The qos pre-classify command should be removed from the tunnel interfaces.
  D. the priority queue for the voice class is probably taking all the bandwidth
  E. there are probably not enough interface buffers; they should be tuned.
  B. The duplex settings are wrong on the Ethernet interface.

• Question 177:

  Which QoS mechanism will prevent a decrease in TCP performance?

  A. Shaper
  B. Policer
  C. WRED
  D. Rate-Limit
  E. LLQ
  F. Fair-Queue
  C. WRED

• Question 178:

  When running IP SLA, which application type should be used if you want to know round-trip delay, jitter, and packet loss for the full path?

  A. ICMP path echo
  B. UDP echo
  C. ICMP path jitter
  D. Application Performance Monitor
  E. TCP connect
  C. ICMP path jitter

• Question 179:

  Which two combinations are valid PAgP configurations that will set up a PAgP channel? (Choose two.)

  A. On-Passive
  B. On-Auto
  C. Passive-Active
  D. Desirable-Auto
  E. Active-Active
  F. Desirable-Desirable
  D. Desirable-Auto
  F. Desirable-Desirable

• Question 180:

  Phase I and Phase II DMVPN differ in terms of which of these characteristics?

  A. Utilization of spoke-to-spoke dynamic tunnels
  B. Utilization of multipoint GRE tunnels at the hub site
  C. Utilization of hub-to-spoke dynamic tunnels
  D. Support for multicast
  A. Utilization of spoke-to-spoke dynamic tunnels
