Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 131:

  Which command can be used on a PE router to connect to a CE router (11.1.1.4) in VRF red?

  A. telnet 11.1.1.4 /vrf-source red
  B. telnet 11.1.1.4 source /vrf red
  C. telnet 11.1.1.4 /source vrf red
  D. telnet 11.1.1.4 /vrf red
  E. telnet 11.1.1.4 vrf red
  D. telnet 11.1.1.4 /vrf red

• Question 132:

  Which two commands are required to enable multicast on a router, when it is known that the receivers use a specific functionality of IGMPv3? (Choose two.)

  A. ip pim rp-address
  B. ip pim ssm
  C. ip pim sparse-mode
  D. ip pim passive
  B. ip pim ssm
  C. ip pim sparse-mode

• Question 133:

  What is the difference between BPDU guard and root guard?

  A. BPDU guard disables the port upon the reception of a BPDU if PortFast is enabled on the port; root guard allows for the reception of BPDUs as long as a device does not try to become the root.
  B. BPDU guard blocks BPDUs from being transmitted; root guard does not let other devices become the root bridge.
  C. BPDU guard disables a port upon receiving a BPDU if PortFast is enabled on the port; root guard protects against root bridge flapping between devices.
  D. BPDU guard ignores BPDUs received on a port if PortFast is enabled on the port; root guard allows for the reception of BPDUs as long as a device does not try to become the root.
  E. BPDU guard ignores BPDUs received on a port if PortFast is enabled on the port; root guard is used during configuration to force a switch to be the root bridge.
  A. BPDU guard disables the port upon the reception of a BPDU if PortFast is enabled on the port; root guard allows for the reception of BPDUs as long as a device does not try to become the root.

• Question 134:

  Refer to the exhibit. Which statement is correct?



  A. Group 232.1.1.1 will be in SSM mode, but without the access-list ssm-groups it would also be in SSM mode.
  B. Group 232.1.1.1 will not be in SSM mode yet; some further configuration is needed.
  C. Group 232.1.1.1 can never be in SSM mode, regardless of any configuration.
  D. Group 232.1.1.1 will be in SSM mode because of the access-list ssm-groups.
  E. Group 232.1.1.1 is not in SSM mode yet; a different access-list would be needed to achieve this.
  D. Group 232.1.1.1 will be in SSM mode because of the access-list ssm-groups.

• Question 135:

  Refer to the exhibit. R1 has an EBGP session to ISP 1 and an EBGP session to ISP 2. R1 receives the same prefixes through both links. Which configuration should be applied so that the link between R1 and ISP 2 will be preferred for outgoing traffic (R1 to ISP 2)?



  A. Increase local preference on R1 for routes received from ISP2.
  B. Decrease local preference on R1 for routes received from ISP2.
  C. Increase MED on ISP 2 for routes received from R1.
  D. Decrease MED on ISP 2 for routes received from R1.
  A. Increase local preference on R1 for routes received from ISP2.

• Question 136:

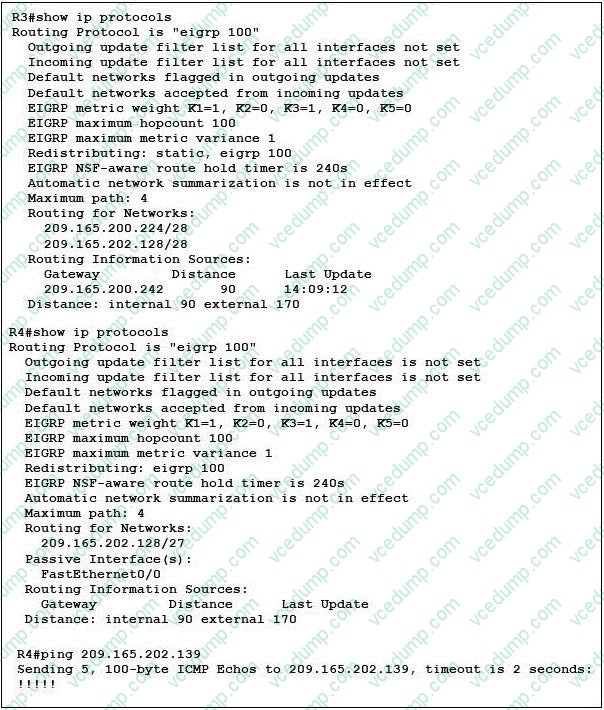

  Refer to the exhibit. R4 is unable to establish an EIGRP adjacency with R3, the only other router on the Fa0/0 LAN segment, although it is able to ping R3. An EIGRP debug on R4 does not provide any clues.

  What might be the cause of the problem?



  A. The passive interface has disabled the transmission of EIGRP multicast hello packets.
  B. EIGRP on R4 should be routing to network 209.165.202.128/28.
  C. The designated router/backup designated router (DR/BDR) selection requires that at least three routers are on a LAN.
  D. The routing metrics on R4 and R3 are different.
  A. The passive interface has disabled the transmission of EIGRP multicast hello packets.

• Question 137:

  You are about to migrate a customer network to use a VSS.

  Which of these statements is true about a VSS?

  A. The VSS switch must be the root bridge for all VLANs and is automatically designated.
  B. The VSS switch is defined in RFC 4318 as a managed object.
  C. The PAgP+ or LACP protocols are used to maintain the operational state of the VSS devices.
  D. A VSS interoperates with a virtual port channel.
  E. The 802.1 Q or ISL protocols are used to maintain the operational state of the VSS devices.
  F. A VSS increases the size of the spanning-tree domain.
  C. The PAgP+ or LACP protocols are used to maintain the operational state of the VSS devices.

• Question 138:

  Which two statements are true about NBAR? (Choose two.)

  A. NBAR performs protocol discovery.
  B. NBAR is not dependent on CEF.
  C. NBAR is used for traffic statistics collection.
  D. NBAR performs traffic classification.
  A. NBAR performs protocol discovery.
  D. NBAR performs traffic classification.

• Question 139:

  The network administrator is trying to add Switch1 to the network, but the 802.1 Q trunk is not coming up. Switch1 was previously tested in the laboratory and its trunk configuration worked fine. What are three possible causes of this problem? (Choose three.)

  A. The trunking configuration mode on Switch1 is set to Off.
  B. The trunking configuration mode on the other end is set to On.
  C. The trunking configuration mode on the other end is set to Desirable.
  D. Cisco Discovery Protocol is not running on the other end.
  E. There is a VTP domain name mismatch.
  F. Switch1 does not support 802.1Q.
  B. The trunking configuration mode on the other end is set to On.
  C. The trunking configuration mode on the other end is set to Desirable.
  E. There is a VTP domain name mismatch.

• Question 140:

  Based on the output provided in the exhibit, to which address or location will the router forward a packet sent to 192.168.32.1? D 192.168.32.0/26 [90/25789217] via 10.1.1.1 R 192.168.32.0/24 [120/4] via 10.1.1.2 O 192.168.32.0/19 [110/229840] via 10.1.1.3

  A. 10.1.1.1
  B. 10.1.1.2
  C. 10.1.1.3
  D. The default gateway
  A. 10.1.1.1
