Cisco 350-001 Online Practice Questions and Exam Preparation

Cisco 350-001 Online Questions & Answers

• Question 121:

  Select and Place:





• Question 122:

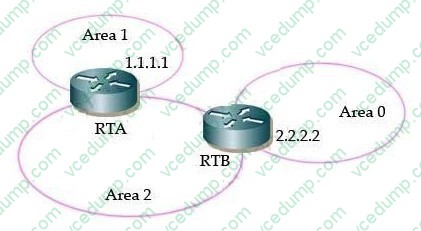

  Refer to the exhibit. How would you get the 1.1.1.1 network into the OSPF database?



  A. Configure RTA as an ASBR.
  B. Redistribute connected routes on RTA into OSPF.
  C. Set up a virtual link between area 1 and area 0.
  D. Set up a virtual link between area 1 and area 2.
  E. Add a static route into RTB and enter it into OSPF.
  F. Place a network 1.1.1.0 0.0.0.0 command into RTB.
  G. Set up a unique router ID on RTA using an RFC 1918 address
  H. Change area 0 on RTB to area 1
  C. Set up a virtual link between area 1 and area 0.

• Question 123:

  What are two differences between IGMPv2 and IGMPv3 reports? (Choose two.)

  A. IGMPv2 has the ability to include or exclude source lists.
  B. All IGMPv3 hosts send reports to destination address 224.0.0.22.
  C. Only IGMPv3 reports may contain multiple group state records.
  D. All IGMPv3 hosts send reports to destination address 224.0.0.23.
  E. IGMPv2 does not support the Leave Group message.
  B. All IGMPv3 hosts send reports to destination address 224.0.0.22.
  C. Only IGMPv3 reports may contain multiple group state records.

• Question 124:

  What is the default queuing mechanism on slow serial interfaces?

  A. FIFO
  B. WFQ
  C. CQ
  D. LLQ
  E. WRR
  A. FIFO

• Question 125:

  If you have a large number of alignment errors, FCS errors, or late collisions, this may indicate which of these problems?

  A. There is a half-duplex connection between the switch and an endpoint on a 10/100/1000 BASE-T Ethernet link
  B. No problem, these errors are normal under most circumstances
  C. There is a duplex mismatch on a 1000 BASE-LX/LH
  D. There is a duplex mismatch on a 10/100/1000 BASE-T Ethernet link
  D. There is a duplex mismatch on a 10/100/1000 BASE-T Ethernet link

• Question 126:

  What is the correct command to set the router ID for an OSPFv3 process?

  A. router-id 1.2.3.4
  B. router-id 2011::1
  C. router-id Loopback0
  D. router-id FF02::5
  A. router-id 1.2.3.4

• Question 127:

  Modified deficit round robin supports which of these functionalities? (Choose two.)

  A. priority queue
  B. weighted fair queues
  C. round-robin service of output queues
  D. LLQ
  A. priority queue
  C. round-robin service of output queues

• Question 128:

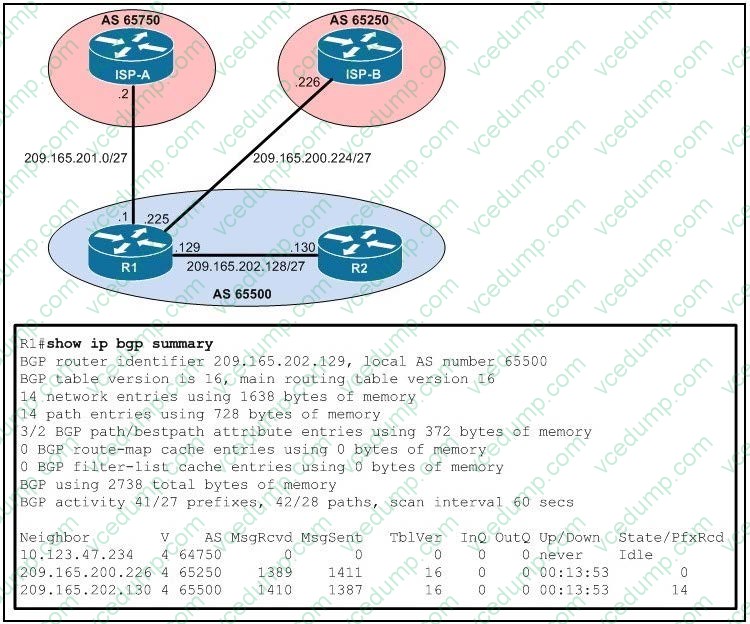

  Refer to the exhibit. R1 is configured as an eBGP neighbor to ISP-A and ISP-B. While the adjacency between R1 and ISP-B is okay, R1 and ISP-A are not able to establish an adjacency. The ISP-A and ISP-B neighbor configurations on R1 are nearly identical.

  What is the problem between R1 and ISP-A?



  A. R1 should be configured with the BGP AS 64750
  B. R1 is missing the next-hop-self option under the neighbor command for ISP-A
  C. R1 needs to add the ebgp-multihop option to the ISP-A neighbor command
  D. R1 should redistribute static routes into the BGP process
  C. R1 needs to add the ebgp-multihop option to the ISP-A neighbor command

• Question 129:

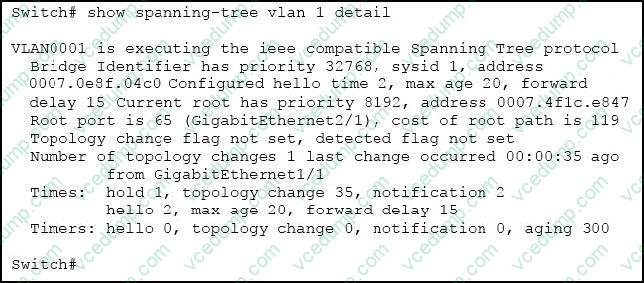

  Refer to the exhibit.



  Which statement is correct?

  A. Setting the priority of this switch to 16384 for VLAN 1 would cause it to become the secondary root bridge.
  B. IEEE 802.1s spanning tree is being used.
  C. Spanning-tree PortFast should not be enabled on GigabitEthernet2/1.
  D. The spanning-tree timers are not set to their default values.
  C. Spanning-tree PortFast should not be enabled on GigabitEthernet2/1.

• Question 130:

  What is a requirement to enable Cisco IOS IPS with 5.x signature?

  A. disable Zone-Based Firewall as the two features are not compatible
  B. disable Cisco Express Forwarding as the two features are not compatible
  C. generate a certificate and export on Cisco.com to receive a signature update
  D. import the public RSA key from the Cisco IPS team that allows the router to verify that a signature update (which was signed by this key) comes from Cisco
  D. import the public RSA key from the Cisco IPS team that allows the router to verify that a signature update (which was signed by this key) comes from Cisco
