Avaya 3100 Online Practice Questions and Exam Preparation

Avaya 3100 Online Questions & Answers

• Question 71:

  Which command must be used to define the system internal number scheme of the extensions?

  A. Change diaplan parameters
  B. Change node-name IP
  C. Change dialplan analysis
  D. Change uniform-dialplan
  C. Change dialplan analysis

• Question 72:

  AAR is used to route which type of traffic?

  A. Internal/Private Network
  B. External/Public Network
  C. Public Switched Telephone Network
  D. Internal and External Networks
  A. Internal/Private Network

• Question 73:

  When adding an IP Station type 96xx, which statement is true regarding the port field?

  A. It is automatically populated by the system as "IP".
  B. It must be populated as "SOOOXX"
  C. It must be populated with an available port on an MM712 or TN2214
  D. It must be populated with an available port on the LAN switch.
  A. It is automatically populated by the system as "IP".

• Question 74:

  You want a user's station to be able to dial extension 5605 and 5608 only. Which station configuration will achieve this?

  A. Assign COR 11 to user' station, In COR11 Set COR-to COR calling permission = `n' for all except COR 10. Assign COR to 5605 and 5608. Ensure that these two CORs are not assigned to any other station object.
  B. The FRL = 7to user's station. FRL = 7 to station 5606 and 5608. Set FRL for all other stations to 6 and lesser
  C. Assign COR 10 to user's station. In COR 11, set CPR-to-COR calling permission = `n' for all except. Assign COR 11 to 5605 and 5608. Ensure that these two CORs are not assigned to any other object.
  D. The FRL = 5 to user's station, FRL = 7 to station 5606 and 5608. Set FRL for all other stations to 5 or lesser.
  A. Assign COR 11 to user' station, In COR11 Set COR-to COR calling permission = `n' for all except COR 10. Assign COR to 5605 and 5608. Ensure that these two CORs are not assigned to any other station object.

• Question 75:

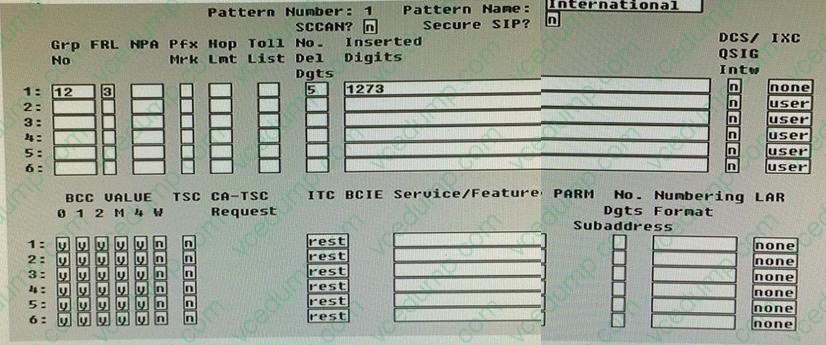

  Refer to the exhibit.

  Consider the settings shown in the exhibit displayed by using the display route-pattern command. You must deny calls from users in COR 10 to use route pattern 1.

  To what should the Facility Restriction Level (FRL) for COR 10 be set?

  A. 2
  B. 3
  C. 4
  D. 5
  E. 6
  A. 2

• Question 76:

  A customer wants to connect two branch offices with an ISDN trunk, where each branch office has a PBX system. Which service Type Should you selected in the configuration of the trunk?

  A. Tie
  B. Tandem
  C. Operator
  D. Internal
  A. Tie

• Question 77:

  The monitor and display capacity commands can be used to get a real-time status of the system using Avaya Site Administration (ASA). Which command and tool should you use to view a summary of the overall condition of the system?

  A. Monitor system command using terminal emulationmode
  B. Monitor system command using GEDI
  C. Monitor status command using terminal emulationmode
  D. Display status using GEPI or terminal emulationmode
  A. Monitor system command using terminal emulationmode

• Question 78:

  You execute the List history command to display the system transaction log.

  Which two types of Information do you expect to find in the transaction log or history report? (Choose two)

  A. valid user logins and logoffs to or from the system
  B. valid and invalid logins and logoffs to or from the system
  C. recent, successful administration and maintenance commands to the system
  D. recent successful and unsuccessful administration and maintenance commands to the system
  A. valid user logins and logoffs to or from the system
  C. recent, successful administration and maintenance commands to the system

• Question 79:

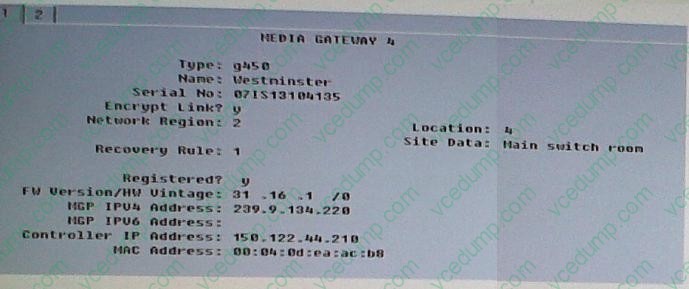

  With consideration to the exhibit, in which hardware component do you configure the IP address 150.122 44 210?

  A. In the Media Gateway
  B. In the Server administration port
  C. In a CLAN board or Processor Ethernet port
  D. In the Server services port
  A. In the Media Gateway

• Question 80:

  Administrative users are assigned a user profile that specifies both a web profile group and a SAT profile group. This controls the functions a user can perform with SAT and within the system Management Interface (SMI). How does the SAT profile control the functions?

  A. It controls the SAT "action" commands the user can use.
  B. It controls the time of day that the user can do Sat administration.
  C. It controls which SAT screens or categories the user can access.
  D. It controls the type of SAT access (GEDI or terminal emulation) the user can use.
  D. It controls the type of SAT access (GEDI or terminal emulation) the user can use.
