• Question 41:

  Two stable fabrics have overlapping domains. After a switch from the first domain is joined to a switch from the second domain, both switches become isolated. What caused the problem?

  A. The autoreconfigure option is disabled on both switches.
  B. The autoreconfigure option is enabled on both switches.
  C. The rcf-reject option is enabled on the interfaces.
  D. The rcf-reject option is disabled on the interfaces.
  A. The autoreconfigure option is disabled on both switches.

• Question 42:

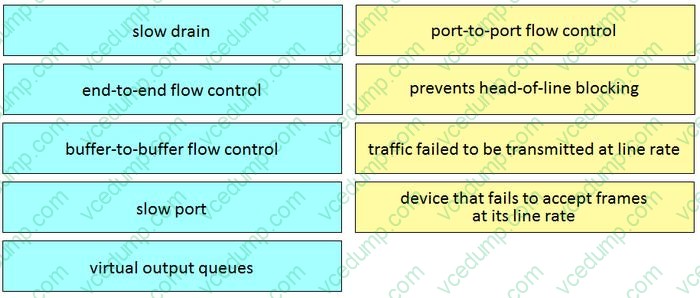

  DRAG DROP

  Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.

  Select and Place:





• Question 43:

  Which port mode is used on an NPV device to connect to an NPIV core switch?

  A. E
  B. F
  C. N
  D. NP
  D. NP

• Question 44:

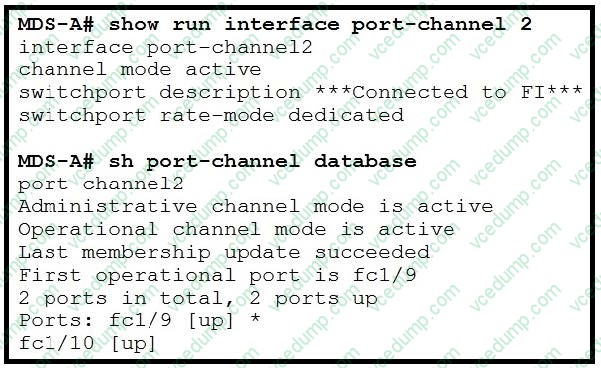

  Refer to the exhibit.



  A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

  A. per packet, balanced between interfaces fc1/9 and fc1/10
  B. from interface fc1/9
  C. from interface fc1/10
  D. per flow, balanced between interfaces fc1/9 and fc1/10
  D. per flow, balanced between interfaces fc1/9 and fc1/10

• Question 45:

  Which action must be performed to deactivate a VSAN without losing its configuration?

  A. Isolate it.
  B. Delete it.
  C. Rename it.
  D. Suspend it.
  D. Suspend it.

• Question 46:

  Which EtherType is used by the FCoE Initialization Protocol?

  A. 0x8913
  B. 0x8914
  C. 0xxfc0e
  D. 0x8906
  B. 0x8914

• Question 47:

  Which two components are required for successful MDS USB POAP (Choose two.)

  A. NTFS formatted USB drive
  B. USB drive in port 1
  C. script named poap_script pl
  D. ENTERPRISE_PKG license
  E. system and kickstart images
  C. script named poap_script pl
  E. system and kickstart images

• Question 48:

  Which component is initially responsible for loading the kickstart image on Cisco MDS Switches?

  A. ROMMON
  B. BIOS
  C. NX-OS
  D. BASH
  C. NX-OS

• Question 49:

  Which result occurs if a device alias is renamed and then the original device alias name is used in an add command in the same session?

  A. Both commands execute successfully.
  B. The device alias is renamed and the add command is moved to the rejected list.
  C. Both commands are moved to the rejected list.
  D. The rename command is moved to the rejected list and the add command executes successfully.
  A. Both commands execute successfully.

• Question 50:

  An engineer is configuring a SAN environment and attempts to activate a zoneset, but a lock is held by another user. Which argument does the engineer use to clear the lock from the zoning database configuration?

  A. commit
  B. abort
  C. clear
  D. force
  C. clear
