Cisco 300-615 Online Practice Questions and Exam Preparation

Cisco 300-615 Online Questions & Answers

• Question 271:

  Refer to the exhibit.



  An engineer is configuring boot from iSCSI on a Cisco UCS B-Series Blade Server, but the LUN fails to mount. Which action resolves the issue?

  A. Statically configure the target information in the Boot Policy.
  B. Configure an MTU size of 9000 on the appliance port.
  C. Configure a QoS policy on the vNIC.
  D. Set a connection timeout value of 250 in the iSCSI Adapter Policy.
  A. Statically configure the target information in the Boot Policy.

  ---

• Question 272:

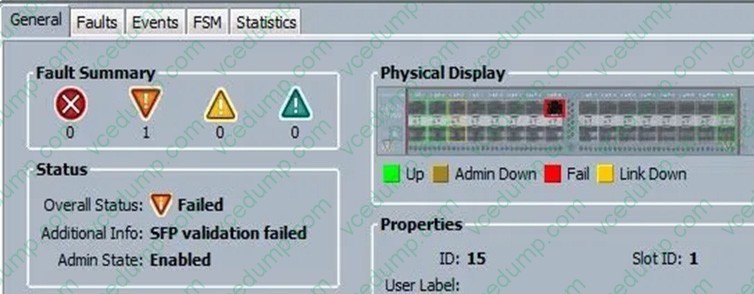

  Refer to the exhibit.



  When an engineer inserts 8-Gb Fibre Channel SFP port 15 on a Cisco UCS Fabric Interconnect, the port fails. What is causing this issue?

  A. Port 15 is configured as an Ethernet port.
  B. Port 15 is configured for 4-Gb Fibre Channel.
  C. Port 15 is missing a license.
  D. The polarity of the fiber cable is reversed.
  B. Port 15 is configured for 4-Gb Fibre Channel.

  ---

• Question 273:

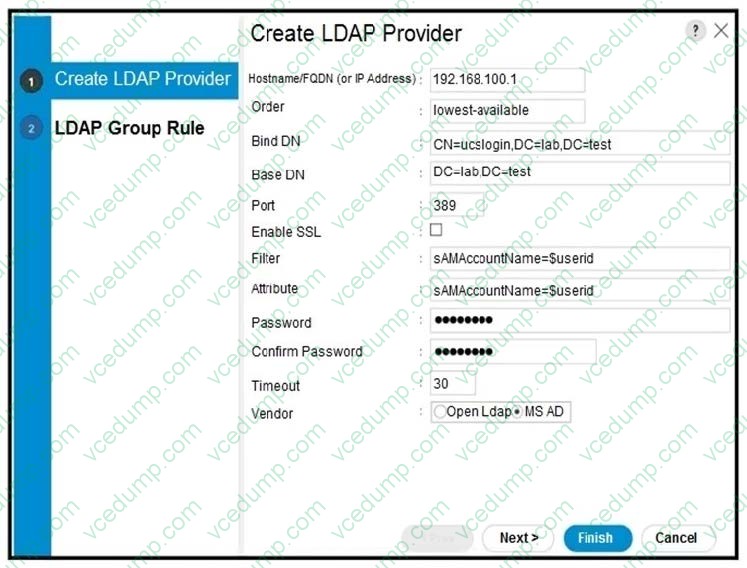

  Refer to the exhibit.



  A network engineer configures an authentication domain through an LDAP provider on the Cisco UCS Manager for users from different companies to log into their respective organizations created in the UCS Manager. The engineer tests the configuration and notices that any user has login access to any organization in the UCS Manager. Which action should be taken to resolve the issue?

  A. Configure the Filter field with sAMAccountName=$company
  B. Configure the Attribute field with the company
  C. Configure the Attribute field with sAMAccountName=$company
  D. Configure the Filter field with the company
  A. Configure the Filter field with sAMAccountName=$company

  ---

• Question 274:

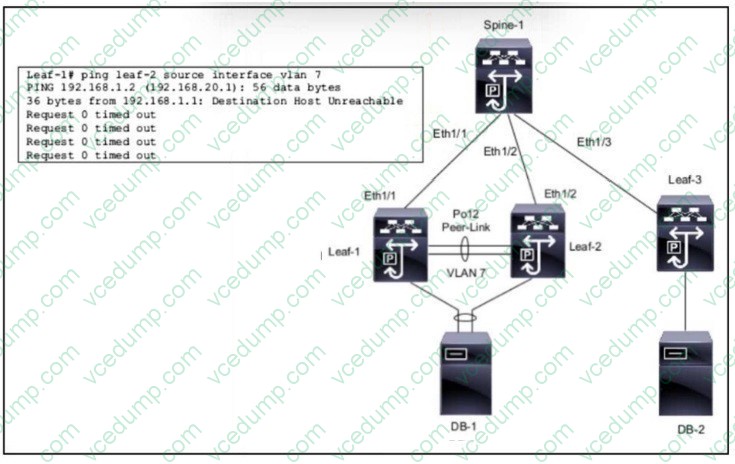

  Refer to the exhibit. A BGP VXLAN EVPN Is used in a data center. The Eth1/1 fails on SPINE-1, and traffic flow fails from Leaf-1 to the Leaf-2 VTEP over port channel 12 in VLAN 7. Which command resolves the issue?

  A. peer-gateway
  B. layer3 peer-router
  C. ip arp synchronize
  D. system nve infra-vlans
  A. peer-gateway

  ---

• Question 275:

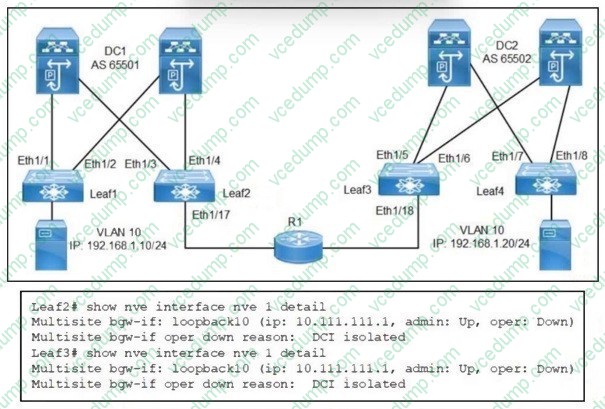

  Refer to the exhibit. Two data center fabrics are configured based on EVPN Multi-Site technology. The EVPN Multi-Site virtual IP is moved to a down state. Which configuration action set resolves the issue?

  A. Interface eth 1/17 evpn multisite fabric-tracking
  B. Interface eth 1/18 evpn multisite dci-tracking
  C. Interface eth 1/4 evpn multisite dci-tracking
  D. Interface eth 1/6 evpn multisite fabric-tracking
  D. Interface eth 1/6 evpn multisite fabric-tracking

  ---

• Question 276:

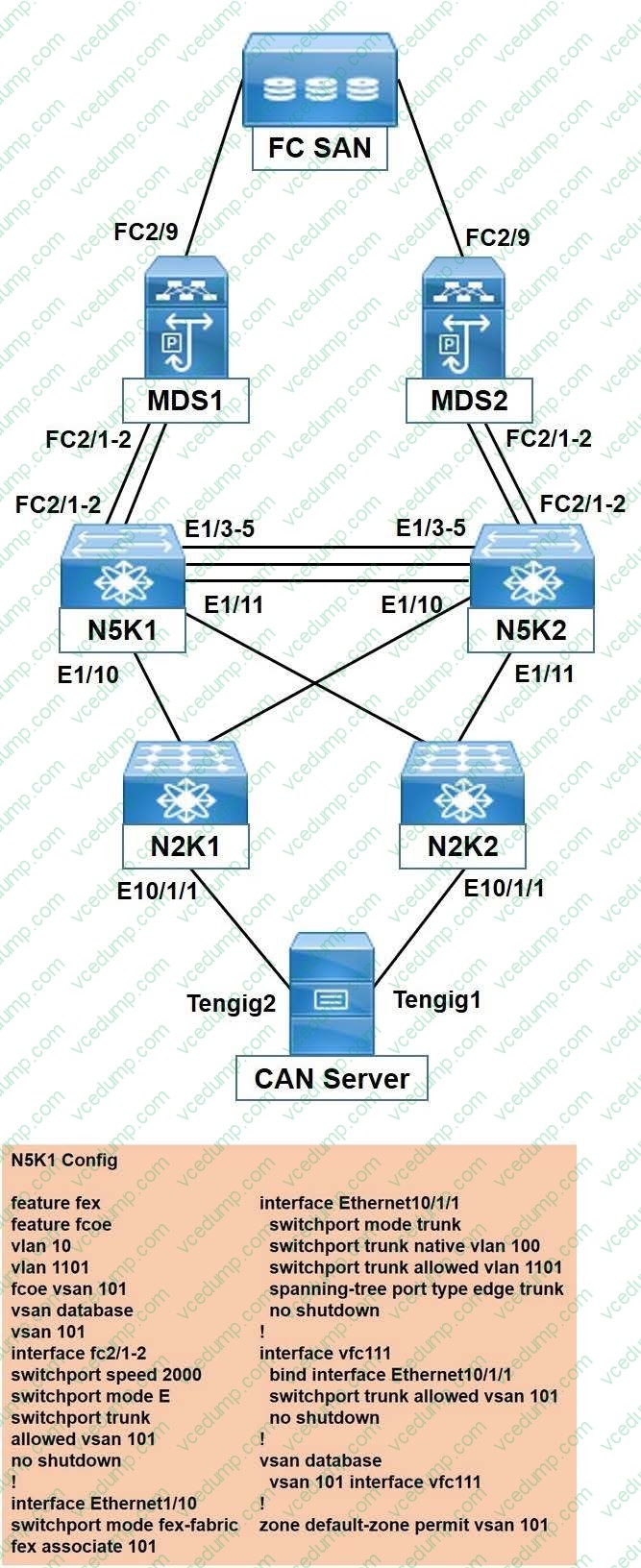

  Refer to the exhibits.



  An engineer troubleshoots switch N5K1, which fails to receive traffic from the file server Which set of actions resolves this problem?

  A. Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.
  B. Assign native VLAN 10 with vfc111 and allow VLAN 1101 in trunk configuration.
  C. Bind native VLAN 10 with Ethemet10/1/1 and allow VLAN 10 in trunk configuration
  D. Assign native VLAN 10 with fc2.'l - 2 and allow VLAN 10 in trunk configuration.
  A. Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.

  ---

• Question 277:

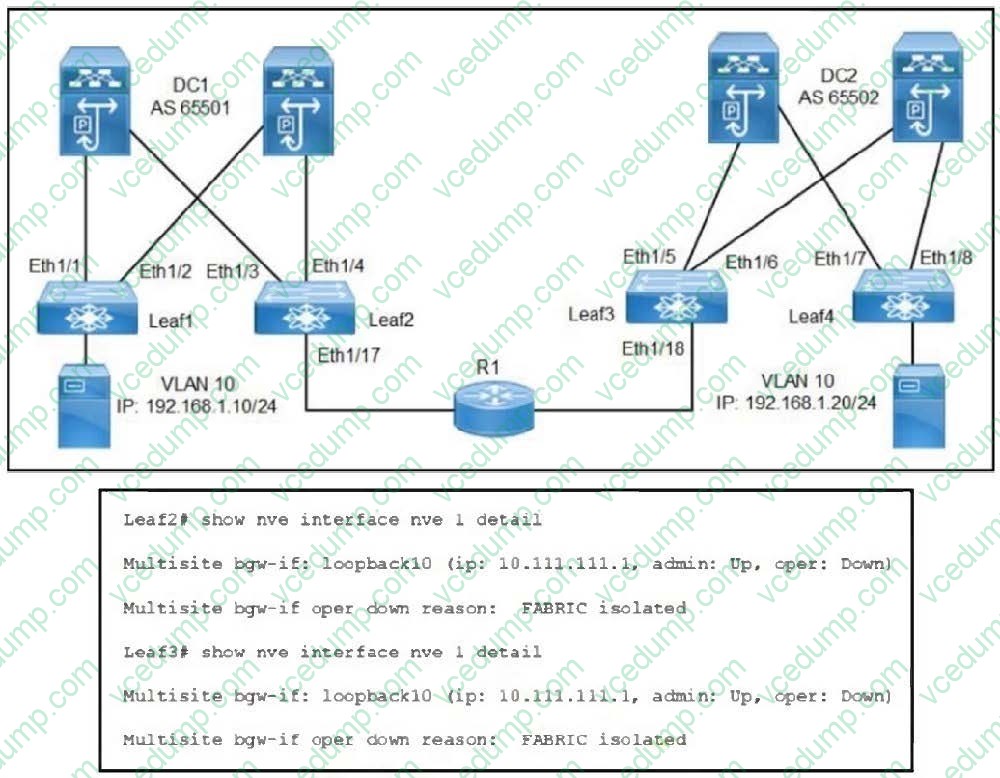

  Refer to the exhibit. Two data centers are connected using a VXLAN EVPN Multi-Site fabric. VLAN 10 fails to be extended between the sites. Which configuration resolves the issue?

  A. interface eth1/18 evpn multisite dci-tracking
  B. interface eth1/4 evpn multisite dci-tracking
  C. interface eth1/6 evpn multisite fabric-tracking
  D. interface eth1/17 evpn multisite fabric-tracking
  A. interface eth1/18 evpn multisite dci-tracking

  ---

• Question 278:

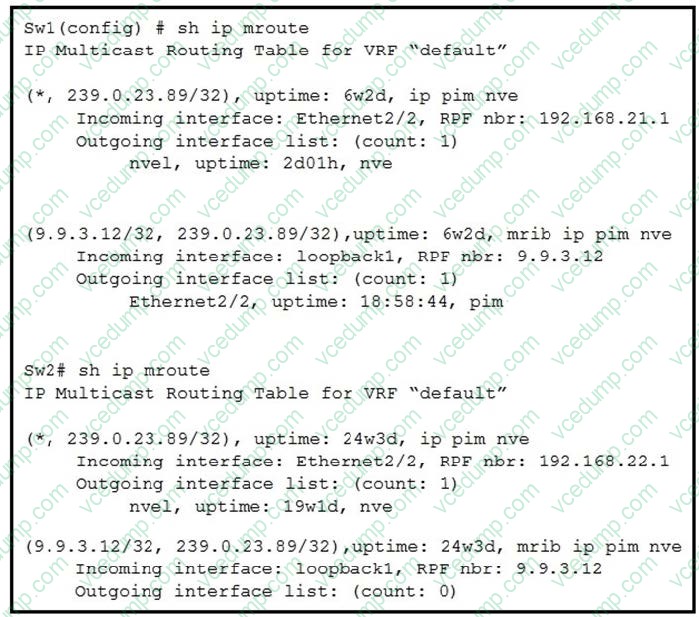

  Refer to the exhibit.



  Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?

  A. Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
  B. Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.
  C. Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.
  D. Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.
  B. Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.

  ---

• Question 279:

  A Cisco ACI fabric consists of three tenants. User1 must have permission to manage only the PROD tenant. These configurations have already been completed:

  1.

  The security domain TENANT has been created.

  2.

  User1 has been created with the";writ"; privilege level.

  3.

  User1 has access to all leaf nodes.

  The configuration was deployed, but User1 still has access to all the other tenants. Which action resolves the issue?

  A. Attach local user User1 to security domain all.
  B. Associate security domain TENANT to tenant PROD.
  C. Add local user User1 to the RBAC node rule.
  D. Enable the restricted domain under security domain TENANT.
  B. Associate security domain TENANT to tenant PROD.

  ---

• Question 280:

  An engineer deploys a Cisco fabric network based on spine-leaf architecture. Cisco DCNM has been integrated to support the automation of a virtual network service of a firewall. After integration, the engineer observes that the host traffic does not reach the firewall node.

  Which action resolves the issue?

  A. Complete the service configuration parameters.
  B. Configure the required profile for the host network.
  C. Delete the service node IP address in DCNM.
  D. Update the host node IP address in DCNM.
  B. Configure the required profile for the host network.

  ---
